Hoshizaki F-801MAH Instruction Manual

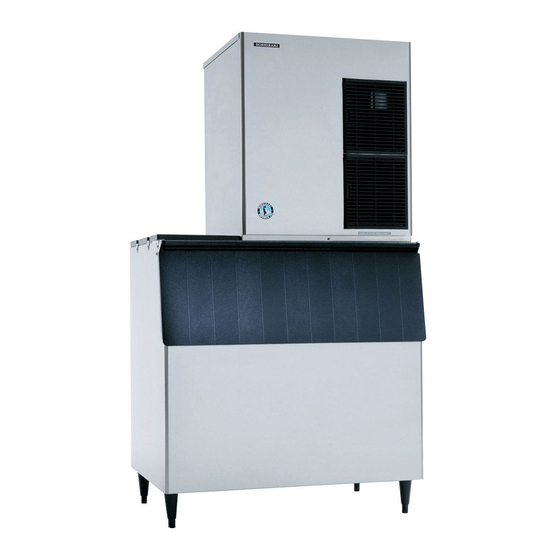

Modular flaker
Hide thumbs Also See for F-801MAH:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
Reliability is a
beautiful thing
TM
INSTRUCTION MANUAL
MODULAR FLAKER
F-801MAH(-C)
F-801MWH(-C)
ISSUED: November 12, 2003
REVISED: December 30, 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-801MAH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoshizaki F-801MAH

Summary of Contents for Hoshizaki F-801MAH

  • Page 1 Reliability is a beautiful thing MODULAR FLAKER INSTRUCTION MANUAL F-801MAH(-C) F-801MWH(-C) ISSUED: November 12, 2003 REVISED: December 30, 2004...
  • Page 2 HOSHIZAKI provides this manual primarily to assist qualified service technicians in the installation, maintenance and service of the icemaker. Should the reader have any questions or concerns which have not been satisfactorily addressed, please call or write to the HOSHIZAKI Technical Support Department for assistance.

  • Page 3: Table Of Contents

    • Keep this manual with the icemaker for later reference. I. Specifications ... 4 1. Nameplate Rating ... 4 [a] F-801MAH, F-801MAH-C (air-cooled) ... 4 [b] F-801MWH, F-801MWH-C (water-cooled) ... 5 2. Dimensions/Connections ... 6 [a] F-801MAH, F-801MAH-C ... 6 [b] F-801MWH, F-801MWH-C ...

  • Page 4: Specifications

    This nameplate is located on the upper right hand side of rear panel. We reserve the right to make changes in specifications and design without prior notice. NOTE: Only the “MODEL NUMBER” is replaced for F-801MAH-C. HOSHIZAKI ICE MAKER 115V 8.5RLA...

  • Page 5: [B] F-801Mwh, F-801Mwh-C (Water-Cooled)

    This nameplate is located on the upper right hand side of rear panel. We reserve the right to make changes in specifications and design without prior notice. NOTE: Only the “MODEL NUMBER” is replaced for F-801MWH-C. HOSHIZAKI ICE MAKER 115V 8.5RLA 120V 3.0FLA...

  • Page 6: Dimensions/Connections

    2. Dimensions/Connections [a] F-801MAH, F-801MAH-C Unit = inches [mm.]...

  • Page 7: [B] F-801Mwh, F-801Mwh-C

    [b] F-801MWH, F-801MWH-C Unit = inches [mm.]...

  • Page 8: C ] With Storage Bin

    [ c ] With Storage Bin Unit = inches [mm.]...

  • Page 9: Installation And Operating Instructions

    6) See the nameplate on the rear panel, and check that your voltage supplied corresponds with the voltage specified on the nameplate. 7) This icemaker needs a storage bin. The recommended storage bin is HOSHIZAKI ICE STORAGE BIN, Model B-300 series.

  • Page 10: Location

    3. Location This icemaker is not intended for outdoor use. Normal operating ambient temperature should be within +45°F to +100°F; Normal operating water temperature should be within +45°F to +90°F. Operation of the icemaker, for extended periods, outside of these normal temperature ranges may affect production capacity.

  • Page 11: Electrical Connection

    5. Electrical Connection 1. Electrical connection must be made in accordance with the instructions on a “WARNING” tag provided with the pig tail leads in the junction box. 2. This icemaker requires a ground that meets the national and local electrical code requirements.

  • Page 12: Water Supply And Drain Connections

    6. Water Supply and Drain Connections - See Fig. 4 • External filters, strainers or softeners may be required depending on the water quality. • Water supply inlet is 1/2" female pipe thread (FPT). Note: On water-cooled model, two water supply inlets are provided. One is for ice making water, and the other is for cooling water.
  • Page 13 F-801MAH, F-801MAH-C F-801MWH, F-801MWH-C Fig. 4...

  • Page 14: Final Check List

    7. Final Check List 1) Is the icemaker level? 2) Is the icemaker in a site where the ambient temperature is within +45°F to +100°F and the water temperature within +45°F to +90°F all year around? 3) Is there at least 6" clearance at rear and sides and 24" at top for maintenance or service? 4) Have all shipping carton, tape(s) and packing been removed from the icemaker? 5) Are all components, fasteners and thumbscrews securely in place?

  • Page 15: Startup

    8. Startup 1. All parts are factory-adjusted. Improper adjustments may result in failure. 2. If the unit is turned off, wait for at least 3 minutes before restarting the icemaker to prevent damage to the compressor. 1) Clean the storage bin. (See “III. 2. Maintenance.”) 2) Open the water supply line shut-off valve.

  • Page 16: Preparing The Icemaker For Long Storage

    9. Preparing the Icemaker for Long Storage - See Fig. 10 When shutting off the icemaker for an extended time, drain out all water from the water line and remove the ice from the storage bin. The storage bin should be cleaned and dried.

  • Page 17: Cleaning And Maintenance

    [a] Cleaning Solution Dilute 4.8 fl. oz. (142 ml) of recommended cleaner Hoshizaki “Scale Away” or “LIME-A-WAY” (Economics Laboratory, Inc.) with 0.8 gallons (3 l) of warm water. This is a minimum amount. Make more solution if necessary.

  • Page 18: [B] Cleaning Procedure

    [b] Cleaning Procedure The cleaning process will remove lime deposits from the water system. 1) Remove the front panel and top panel, then turn off the power supply. 2) Close the water supply line shut-off valve. 3) Remove all ice from the storage bin. 4) Move the flush switch to the “FLUSH”...

  • Page 19: [C] Sanitizing Solution

    [c] Sanitizing Solution Dilute 2.5 fl. oz. (74 ml or 5 tbs) of IMS-II Sanitizer or a 5.25% sodium hypochlorite solution (chlorine bleach) with 5 gallons (19 l) of warm water. For safety and maximum effectiveness, use the solution immediately after dilution.

  • Page 20: [E] Sanitizing Procedure - Final

    14) Replace all parts in their correct positions. When installing the baffles, make sure that the bent surface (the one without the studs) faces the actuator so that the bent surface can guide the ice to the center of the actuator. 15) Move the flush switch to the “ICE”...
  • Page 21 16) When the gear motor starts, remove the front panel and turn off the power supply. 17) Drain out all water from the water line. See 2) and 3). 18) Move the flush switch to the “ICE” position and run the icemaker. 19) Turn off the power supply after 30 minutes.

  • Page 22: Maintenance Instructions

    More frequent inspection and maintenance are recommended. Consult with your local distributor about inspection and maintenance service. To obtain the name and phone number of your local distributor, call Hoshizaki Technical Support at 1-800-233-1940 in the USA. 1) Stainless Steel Exterior To prevent corrosion, wipe the exterior occasionally with a clean and soft cloth.
  • Page 23 4) Condenser (except water-cooled model) Check the condenser once a year, and clean if required by using a brush or vacuum cleaner. More frequent cleaning may be required depending on the location of the icemaker.
  • Page 24 HOSHIZAKI HOSHIZAKI AMERICA, INC. 618 HIGHWAY 74 SOUTH PEACHTREE CITY, GA 30269 U.S.A. PHONE: 770-487-2331 www.hoshizakiamerica.com 91A2DM10B...

This manual is also suitable for:

F-801mwhF-801mah-cF-801mwh-c
