PTAC LL2B Installation Instructions

LEVELING LEGS KIT (LL2B)
I
NSTALLATION
Description

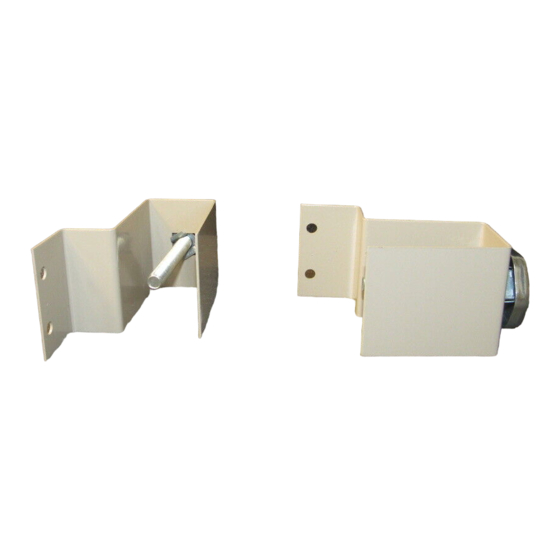

Leveling legs are designed to provide extra front support
and leveling of the wall sleeve. Two leg assemblies are
required per unit and are provided in each kit. Four
screws are also provided with each kit for attachment to

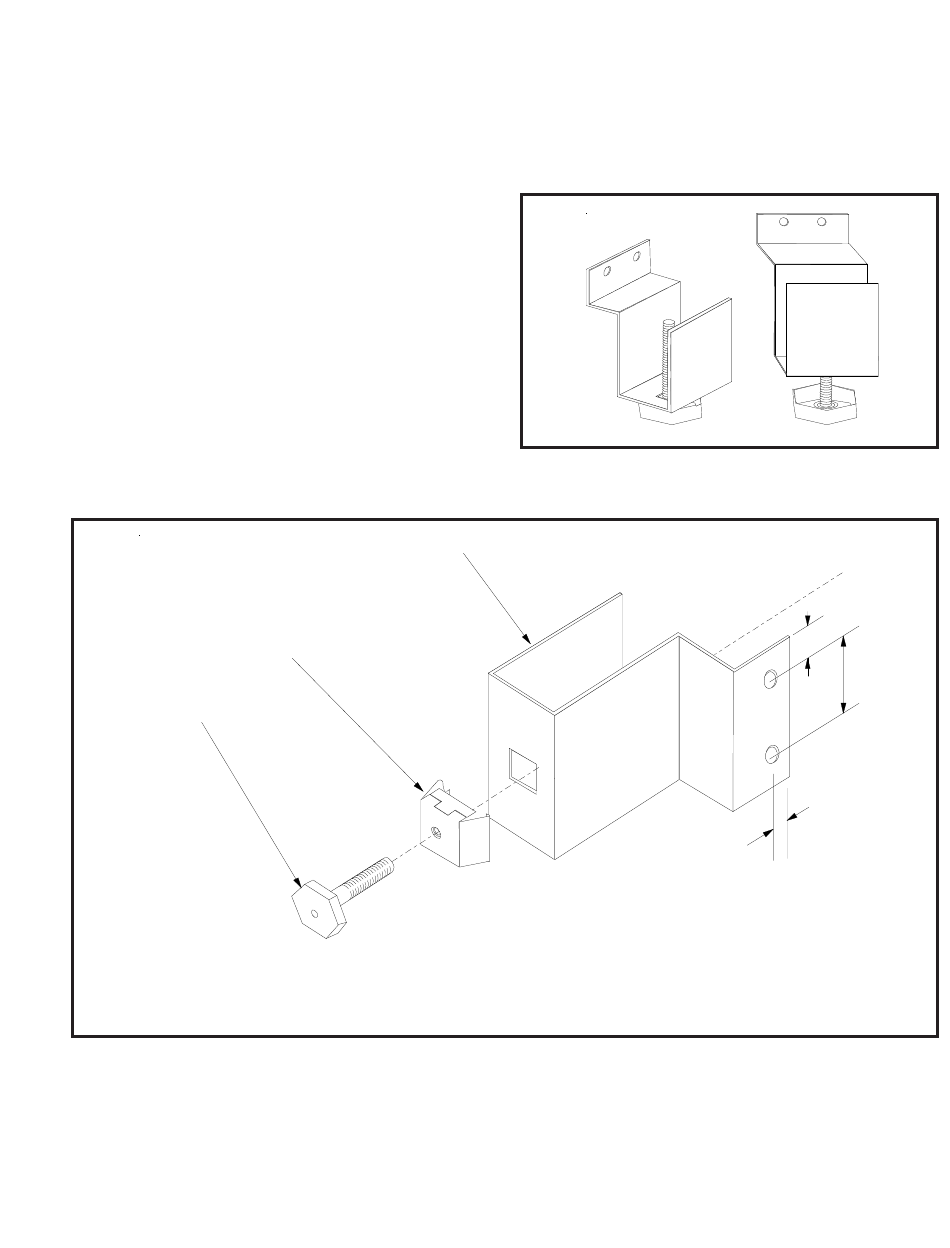

the wall sleeve. See Figure 1.
The leveling legs must be installed before the chassis is
installed, but after the wall sleeve is in place. Holes must
be drilled in each side of the wall sleeve, below the duct
package holes, for attachment to the wall sleeve.
The installation and servicing of the equipment referred to
in this booklet should be done by qualified, experienced
technicians.
SPEED GRIP NUT
ADJUSTER SCREW
Part No. A3495502
Printed in USA
PTAC
I
NSTRUCTIONS
LEVELER BRACKET
The installation and servicing of the equipment should be
done by qualified, experienced technicians.
PTAC DIRECT SALES, INC.
185 S. Kimball Ave., Suite 130
Southlake, TX 76092
NOTES:
1. Two leveling legs are supplied in each kit.
2. One kit is required per unit.
3. Four mounting screws are provided in each kit.
877.454.7822 (T)
1/2"
1"
1/4"
April 2005
