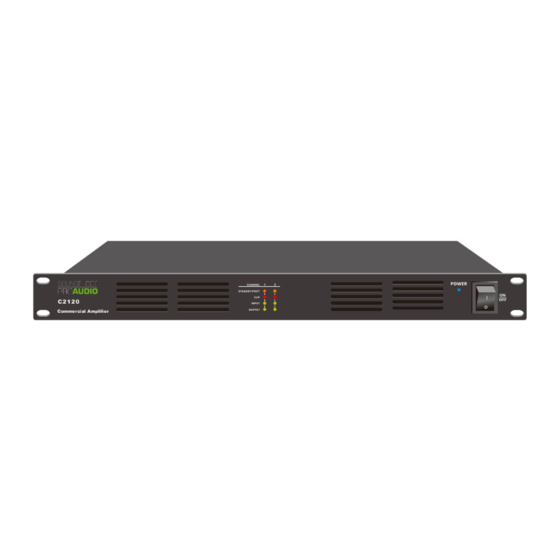

INSTALLATION AND OPERATION MANUAL C2 Series Commercial Class-D Two Channel Amplifier... -
Page 2: Important Safety Information
Important Safety Information Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 3: Safety Warning
Safety Warning WARNING! TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. -
Page 4: Table Of Contents
Contents ---------------------------------------------------------------------------------------------------------------------------------------------1 Front Page---- Important Safety Information------------------------------------------------------------------------------------------------------------2 Safety Warning------------------------------------------------------------------------------------------------------------------------------3 Contents-------------------------------------------------------------------------------------------------------------------------------------4 Introduction---------------------------------------------------------------------------------------------------------------------------------5 Front Panel----------------------------------------------------------------------------------------------------------------------------------6 Rear Panel-----------------------------------------------------------------------------------------------------------------------------------7 Speaker Connection------------------------------------------------------------------------------------------------------------------------8 Block Diagram-------------------------------------------------------------------------------------------------------------------------------9 Specification-------------------------------------------------------------------------------------------------------------------------------10 Service and Warranty---------------------------------------------------------------------------------------------------------------------11 4 / 11... -
Page 5: Introduction
24V DC battery input included Description: The C2 series digital class-D power amplifier uses There are two balanced line inputs by phoenix connector for each switching power technology, which features minimum power channel with gain control. Two separate speaker outputs both consumption and much higher efficiency up to 85%, moreover it by 100V or 8 Ohms. -
Page 6: Front Panel
Front Panel PROT Protection indicator will light orange once the amplifier comes into protection status. The protection maybe resulted from speaker line short circuit, speaker line open circuit, amplifier overload and working temperature over 55℃, this indicator give visually guidance. The light will turn off once fault is repaired. There are two separate protection indicators one for each channel. CLIP Clip indicator will light red once the input or output is too high. -
Page 7: Rear Panel
Rear Panel AC POWER SOCKET AC power cord for input of 230V, 50-60Hz for main power input. 24V DC POWER INPUT 24V DC power supply input as supply will automatically in standby use when AC mains fails. LINE INPUT(1-2 Channel) The line input support both balanced or unbalanced inputs from audio sources or mixer, these input are by phoenix connectors. -
Page 8: Speaker Connection
Speaker Connection Before connecting speakers, disconnect the AC power cable. Note the proper connecting terminals as shown below. Make sure that the total impedance is not less than the rated impedance indicated. Before connecting speakers, disconnect the AC power cable. Note the proper connecting terminals as shown below. Make sure that the total impedance is not less than the rated impedance indicated. -
Page 9: Block Diagram
Block Diagram 9 / 11... -
Page 10: Specification
Specifications C2120 C2240 C2350 C2500 Model Description Class-D Two Channel Power Amplifier Rated Power Output 2x120W 2x240W 2x350W 2x500W Speaker Output 8Ω & 100V Frequency Response L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) Input 0.775V, 0dBu, balanced phoenix connector by two channels Input Impedance 10KΩ... -
Page 11: Service And Warranty
Service & Warranty Service Procedures Ensure the problem is not related to operator error, or system devices that are external to this unit. Information provided in the troubleshooting portion of this manual may help with this process. Once it is certain that the problem is related to the product contact your warranty provider as described in the warranty section of this manual.
