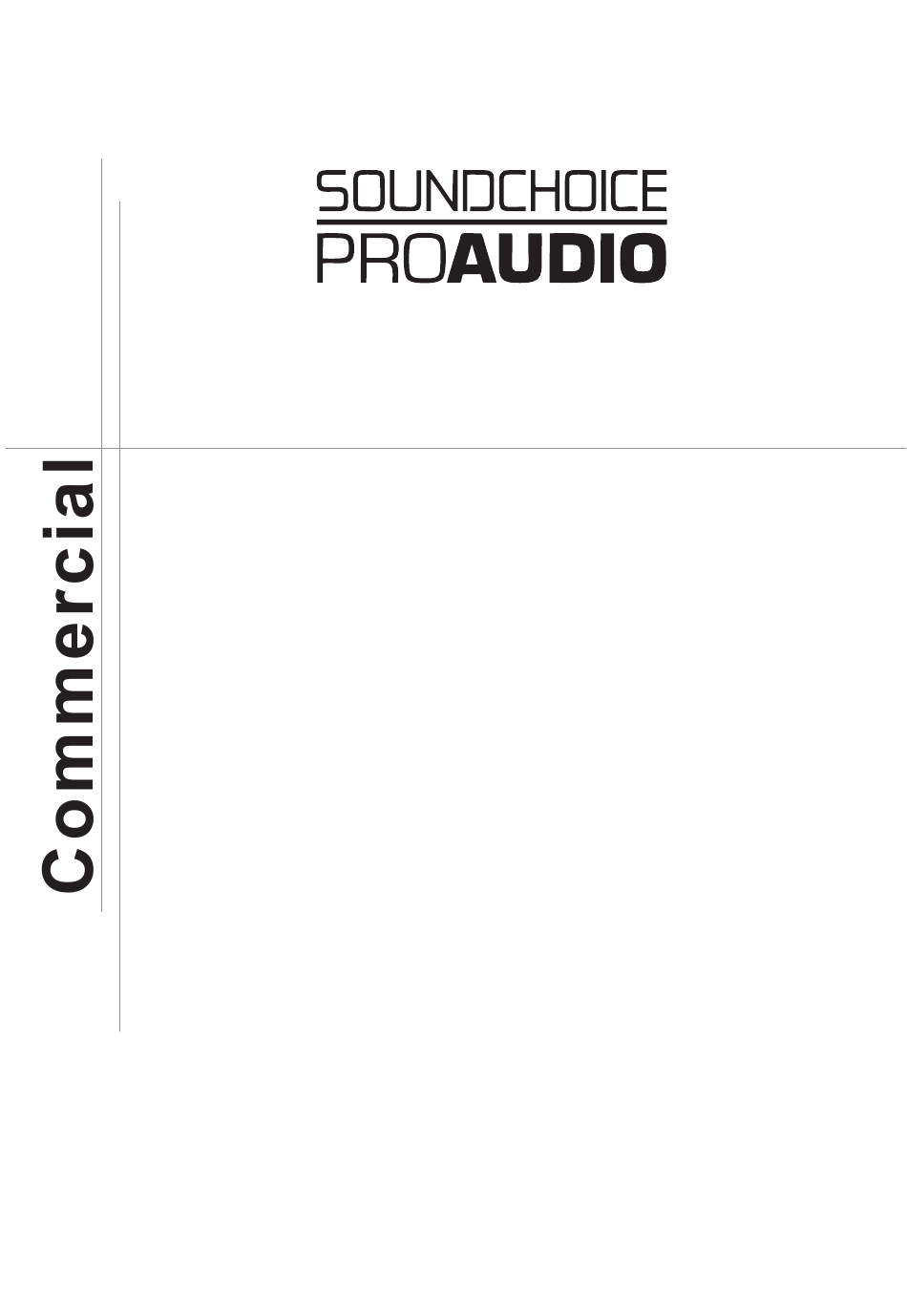

- Page 1 4 Channel Power Amplifier MODEL: CA4120 CA4240 CA4360 CA4480 Warning:Before attempting to connect,operate or adjust this Amplifier, please read these instructions completely and carefully and save this Manual...
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ----------------------------------------- 2 Features -----------------------------------------------2 Front panel controls ------------------------------- 3 Rear panel controls ---------------------------------4 Block diagram ----------------------------------------5 Specifications ----------------------------------------6... -
Page 4: Introduction
Introduction/Features Introduction Welcome Congratulation and thank you for the purchasing CA4 series 4 channel constant voltage power amplifier. Unpacking and Installation Although it is neither complicated to install nor difficult to operate, a few minutes of your time is required to read this manual for a properly wired installation and to become familiar with its many features and how to use them. -
Page 5: Front Panel Controls
Front Panel Controls Front Panel Controls FRONT PANEL 1.OUTPUT LEVEL METER These indicators show current output level. 2.CLIP INDICATORS These indicators warn against overload short on the each of the output channels. We recommend for users to adjust the VOLUME control when CLIP indicators are flickering for best performance. -
Page 6: Rear Panel Controls
Front Panel Controls Rear Panel Controls 1.AC POWER INPUT CONNECTOR A correct capacity fuse and power cable should be applied. Please make sure the value of fuse before replacing. 2.AMPLIFIER OUTPUTS These amplifier output blocks provide 100V constant voltage output for commercial and industrial use. 3.VOLUME CONTROLS These controls adjusts output levels. -
Page 7: Block Diagram
Block Diagram Block Diagram... -
Page 8: Specifications
Specifications Specifications Model Name CA4120 CA4240 CA4360 CA4480 Rated Output Power 120W X 4CH 240W X 4CH 360W X 4CH 480W X 4CH Output / Impedance 100V (83 Ω) 100V (42 Ω) 100V (27 Ω) 100V (21 Ω) Input 0dB/20KΩ Balanced...
