Hoshizaki F-450MAF Parts List

Hoshizaki F-450MAF Parts List

Modular flaker
Hide thumbs Also See for F-450MAF:

Advertisement

Quick Links

Download this manual See also: Instruction Manual

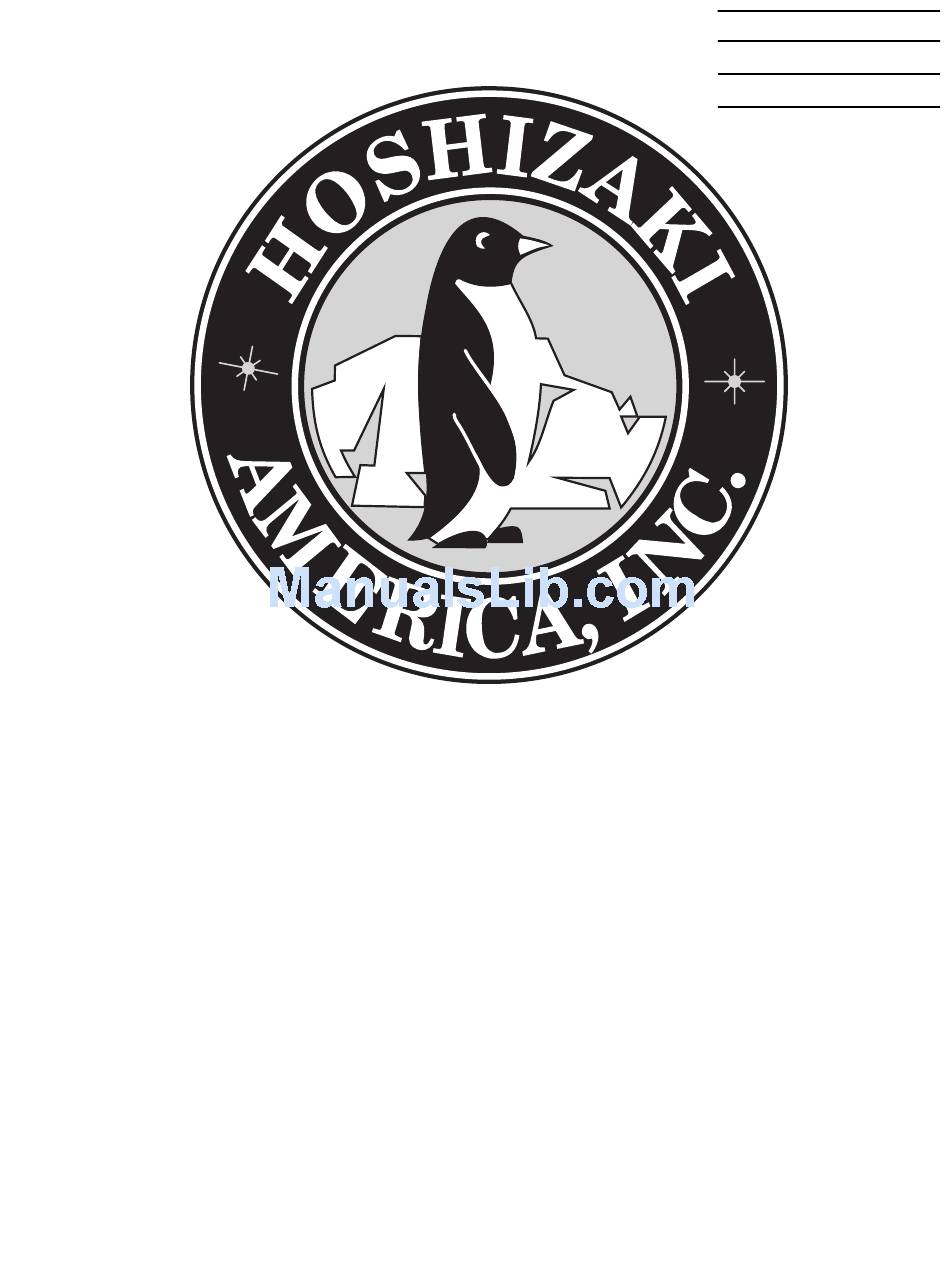

NO.
71150
ISSUED:
SEPT. 8, 1999
REVISED:
AUG. 27, 2002
HOSHIZAKI
MODULAR FLAKER
MODEL
F-450MAF(-C)
(FINAL) PARTS LIST

Advertisement

loading
Need help?

Need help?

Do you have a question about the F-450MAF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoshizaki F-450MAF

Summary of Contents for Hoshizaki F-450MAF

  • Page 1 71150 ISSUED: SEPT. 8, 1999 REVISED: AUG. 27, 2002 HOSHIZAKI MODULAR FLAKER MODEL F-450MAF(-C) (FINAL) PARTS LIST...
  • Page 2 F-450MAF F-450MAF-C JUL. 1998 FEB. 1999 DEC. 1999 DEC. 2000 FEB. 1998 JAN. 1999 DEC. 1999 DEC. 2000...
  • Page 4 F-450MAF/(-C) A. ICE FLAKER ASSEMBLY H-0, J-0, K-0, L-0...
  • Page 5 F-450MAF MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER ICE MAKING UNIT REFRIGERATION UNIT WATER CIRCUIT CONTROL BOX ASSEMBLY CHUTE ASSEMBLY HS-2007 HS-2007 LABEL LOCATION A. ICE FLAKER ASSEMBLY TITLE PART REQUIRED NUMBER NUMBER 3A0841A01 2A0962A01 2A0942A01 2A0953A01 2A0941A03 2A1705A03 3A0876A01...
  • Page 6 F-450MAF-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER ICE MAKING UNIT REFRIGERATION UNIT WATER CIRCUIT CONTROL BOX ASSEMBLY CHUTE ASSEMBLY LABEL LOCATION POWER SUPPLY ASSEMBLY - A. ICE FLAKER ASSEMBLY TITLE PART REQUIRED NUMBER NUMBER 3A0841A02 2A0962A01 2A0942A01 2A0953A01 3A0874A01...
  • Page 7 F-450MAF/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER CHASSIS REAR PANEL TRUSS HEAD SCREW SS, 4 x 8 T2 SCREW SS, 4 x 8 JUNCTION BOX COVER T2 SCREW 4 x 8 SIDE FRAME (R) TRUSS HEAD SCREW 4 x 8...
  • Page 8 F-450MAF/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER STRAP STRAP WING NUT SS, 6 BRACKET - CHUTE SIDE PANEL (R) TRUSS HEAD SCREW SS, 4 x 8 SIDE PANEL (L) TRUSS HEAD SCREW SS, 4 x 8 TOP PANEL FRONT PANEL...
  • Page 9 F-450MAF B. ICE MAKING UNIT H-0, J-0, K-0, L-0...
  • Page 10 F-450MAF MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER GEAR MOTOR V06695AEAA 4A0897-02 BARRIER - GEAR MOTOR FT SCREW SS, 4 x 8 COUPLING – SPLINE HOUSING BRASS HEX BOLT GOLD STAINLESS, 6 x 20 BOLT PLAIN WASHER SS, Ø6.4 x Ø12.5 x t 1.6...
  • Page 11 F-450MAF-C B. ICE MAKING UNIT H-0, J-0, K-0, L-0...
  • Page 12 F-450MAF-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER GEAR MOTOR V06695AEAA 4A0897-02 BARRIER - GEAR MOTOR FT SCREW SS, 4 x 8 COUPLING – SPLINE HOUSING BRASS HEX BOLT GOLD STAINLESS, 6 x 20 BOLT PLAIN WASHER SS, Ø6.4 x Ø12.5 x t 1.6...
  • Page 13 F-450MAF/-C C. REFRIGERATION UNIT 13 12 H-0, J-0, K-0, L-0...
  • Page 14 F-450MAF/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER COMPRESSOR GROMMET 027-0073-00 SPACER 027-0072-02 PROTECTOR 071-0527-04 PROTECTOR HOLDER BOLT 8 x 45 CONDENSER 602380 FT SCREW SS, 4 x 8 SHROUD T2 SCREW 4 x 8 FAN MOTOR BRACKET SS, 5 x 12...
  • Page 15 F-450MAF/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER COPPER TUBE (B) – LOW COPPER SIDE ACCESS VALVE COPPER TUBE – ACCESS COPPER VALVE PRESSURE SWITCH ACB-ZUB04 PRESSURE SWITCH BRCKT. GS T2 SCREW 4 x 8 CLAMP CABLE TIE CV-150 INSULATION TUBE...
  • Page 16 F-450MAF/-C D. WATER CIRCUIT H-0, J-0, K-0...
  • Page 17 F-450MAF/-C D. WATER CIRCUIT...
  • Page 18 F-450MAF/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER WATER VALVE BRACKET T2 SCREW 4 x 8 WATER SUPPLY PIPE COPPER T2 SCREW 4 x 8 WASHER K-59963 WATER VALVE S-30 DRAIN VALVE BRACKET FT SCREW SS, 4 x 8 WATER VALVE...
  • Page 19 F-450MAF/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER HOSE CLAMP 2338 HC 953 4A2017-01 HOSE CLAMP 2342 HC 1031 HOSE CLAMP 2314 HC 468 4A2017-04 HOSE CLAMP 2326 HC 672 4A2017-05 HOSE CLAMP 2330 HC 750 4A2017-06 HOSE CLAMP 2322 HC 593 4A2017-07 D.
  • Page 20 F-450MAF/-C 20 21 27 E. CONTROL BOX ASSEMBLY H-0, J-0, K-0, L-0 16 17 28 29...
  • Page 21 F-450MAF/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER CONTROL BOX FT SCREW SS, 4 x 8 COVER - CONTROL BOX TRUSS HEAD SCREW SS, 4 x 8 RELAY LY2F AC24V RELAY LY4F AC24V RELAY LY1F AC220/240V RELAY LY1F AC120V 418271-03...
  • Page 22 F-450MAF/-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER TIMER SCREW 32 x 3/8 9P PLUG HOUSING 3191-9P-201 CAPACITOR UP25B505UEF T2 SCREW 4 x 8 6P PLUG HOUSING 3191-6P-201 3P PLUG HOUSING 3191-3P-201 4P PLUG HOUSING 3191-4P-201 CONNECTOR FUSE HOLDER HTB-92M FUSE GMD 1.5A...
  • Page 23 F-450MAF F. CHUTE ASSEMBLY H-0, J-0...
  • Page 24 F-450MAF F. CHUTE ASSEMBLY K-0, L-0...
  • Page 25 F-450MAF MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER BAFFLE-CHUTE (A) WING NUT SS, 4 BAFFLE-CHUTE (B) BIN CONTROL BIN CONTROL ASSEMBLY ACTUATOR SHAFT SNAP PIN SS, SSP-5 PLATE THUMB SCREW ABS, SS PROXIMITY SWITCH RS-601 COVER-SWITCH TRUSS HEAD SCREW SS, 4X8...
  • Page 26 F-450MAF-C F. CHUTE ASSEMBLY H-0, J-0, K-0, L-0...
  • Page 27 F-450MAF-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER CHUTE INSULATION – CHUTE PE FOAM SENSOR HOUSING PHOTO–ELECTRIC SENSOR UZD12 CROSS RECESSED PAN TYPE1, NO.4, HEAD TAPPING SCREW L= ¾” F. CHUTE ASSEMBLY TITLE PART REQUIRED NUMBER NUMBER 2A0925-01 2A0989-01 436531G01...
  • Page 28 F-450MAF/-C G. LABEL LOCATION H-0, J-0, K-0, L-0...
  • Page 29 F-450MAF MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER INSTRUCTION SHEET PAPER EMBLEM PETP FILM MODEL NUMBER LABEL PETP FILM LABEL - PENGUIN - HA - L PETP FILM LABEL - AIR FILTER PETP FILM INSTRUCTION LABEL PVC FILM LABEL - CLEANING...
  • Page 30 F-450MAF-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER INSTRUCTION SHEET PAPER EMBLEM PETP FILM MODEL NUMBER LABEL PETP FILM LABEL - PENGUIN - HA - L PETP FILM LABEL - AIR FILTER PETP FILM INSTRUCTION LABEL PVC FILM LABEL - CLEANING...
  • Page 31 F-450MAF/-C H. POWER SUPPLY H-0, J-0, K-0, L-0...
  • Page 32 F-450MAF-C MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER POWER SUPPLY GLC40-24 1 POWER SUPPLY HOUSING FT SCREW SS, 4 x 8 BOARD SUPPORT CBLS37-M RELAY JA1a-TM- DC24V TAPPING SCREW 3 x 8 LINE CONNECTOR 09053061 LINE CONNECTOR 09503031 CRIMP TERMINAL (MOLEX) 08500189 H.
  • Page 33 MODEL INDEX DESCRIPTION MATERIAL OR MODEL NUMBER INSTRUCTION MANUAL PAPER UNIVERSAL BRACE HEX HEAD BOLT SS, 5 x 12 LABEL – FASTENER TRUSS HEAD SCREW SS, 4X8 F-450MAF/-C J. ACCESSORIES TITLE PART NUMBER 91A2BA10A 4A0363-01 7B02-0512 427122-01 7C32-0408 REQUIRED NUMBER...
