Tire Pressure Monitoring System
Introduction
Tire-Safeguard automatically monitors your vehicle tires, and will immediately
alert you of abnormal tire pressure and/or temperature, providing a timely
warning to you in order for you to take corrective action.

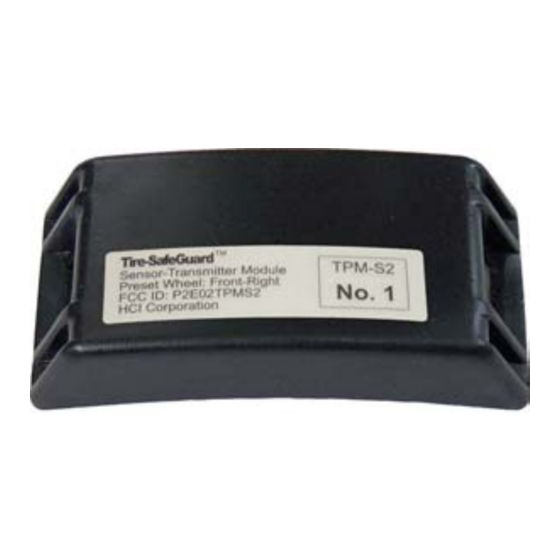

Sensor Installation
Tools Required:
• Tire changing equipment
• Tire balancing equipment
• Hexagon socket and driver
• Metal Cutter
•
Torque wrench
a) De-mount wheel from car and remove tire from wheel.
b) Cut mounting band to appropriate length for the wheel. Remove burrs from
the cut band end.
TPM-W204
User's Manual
HCI Corporation
contact@tiresafeguard.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HCI TPM-W204
Summary of Contents for HCI TPM-W204
- Page 1 TPM-W204 Tire Pressure Monitoring System User’s Manual HCI Corporation contact@tiresafeguard.com Introduction Tire-Safeguard automatically monitors your vehicle tires, and will immediately alert you of abnormal tire pressure and/or temperature, providing a timely warning to you in order for you to take corrective action.
- Page 2 c) Get correct sensor for the wheel, pass band through the two mounting hole on the lower part of the sensor. d) Wrap the band (with sensor) around the wheel base, insert band end into the band clamp, and then use a socket wrench to advance the worm-gear until the band is slightly pressing the wheel base.
- Page 3 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. •...
