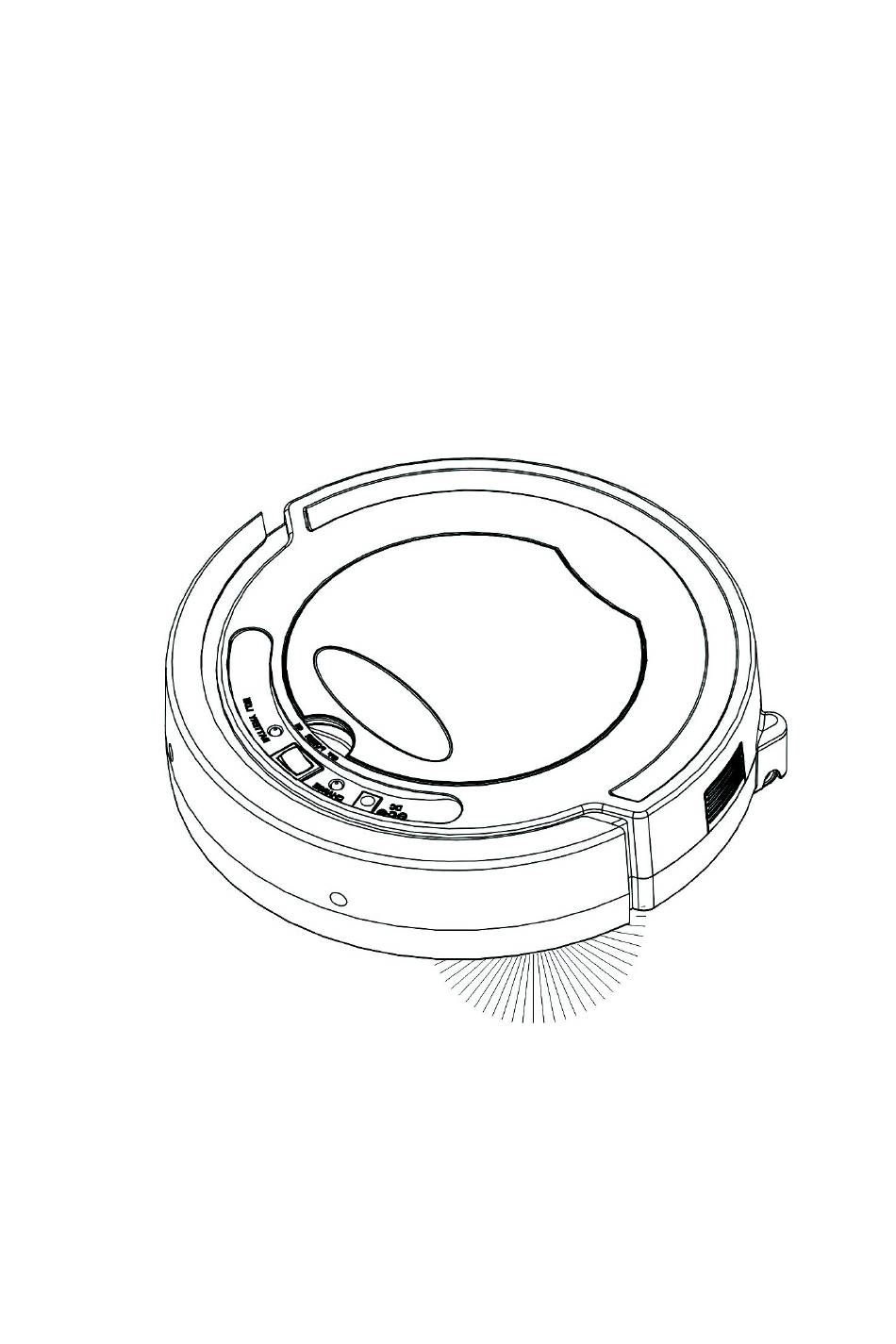

- Page 1 AiBOT Robotic Vacuum Cleaner RC 310A User ’s Manual...
-
Page 2: Table Of Contents
* Safety Precautions * Battery and Recharge Precautions SPECIAL FEATURES ----------------------------------------------------- 4 MAJOR COMPONENTS AND ATTACHMENTS---------------------- 4 RC 310A SERIES OVERVIEW ---------------------------------------- 5 INSTALLATION GUIDE ------------------------------------------------- 6 * Installation of Side Brush * Using Dusting Paper * Battery Installation and Removal... -
Page 3: Safety Advisory
SAFETY ADVISORY Read the safety instructions in this User Manual before operating RC 310A SERIES (the robot') and keep this manual handy for your future reference. Observe the basic safety rules to prevent any occurrence of fire, electric shock and personal injury. -
Page 4: Special Features
SPECIAL FEATURES Thank you for purchasing the RC 310A Mini Vacuum Robot. This revolutionary mini vacuum robot is fully automatic and helps you take care of the vacuuming routine. It keeps your floor dust free, hair free and dirt free every day. The robot is suitable for cleaning floor surfaces such as wood, tile or linoleum. -
Page 5: Rc 310A Series Overview
RC 310A OVER VIEW Big Cover Dust Bin/Battery Inside Low Battery Indicator Power Switch ON/OFF Heat Vent Power Indication Lamp d. c. jack Bumper Handle Grip Intake Valve Caster Side Brush Holder Wheel Slots for Dust Paper Holder... -
Page 6: Installation Guide
INSTALLATION GUIDE Installation of Side Brush 1. Put the brushes in the holders then mount the brush as shown in Fig. Using Dust Paper 1. Remove the Paper Holder Stopper Dust Paper Holder (back) 2. Make sure the dust paper is flat and place it in the holder, then fold the border of the dust paper and press it with the stopper into the dust paper holder. -
Page 7: Battery Installation And Removal
3. Lock the dust paper holder into the small slots on the bottom of the robot. Battery Installation and Removal 1. Make sure the RC 310A is turned off before installing the batteries. 2. Press and open the top cover (See image below.) 3. -
Page 8: Recharging Battery
In case of a loose cable is tangled with RC 310A, the cable might move around with the robot as it works and topple down a table, chairs, or cabinet and cause property damage. -
Page 9: Maintenance And Cleaning
MAINTENANCE AND CLEANING Maintenance The operation and maintenance of the robot is very simple. After each use, clean up the dirt inside the dust bin and on the filter. It is not necessary to clean the intake valve after every use. Cleaning the Dust Bin 1. - Page 10 MAINTENANCE AND CLEANING 1. Open the upper cover of the dustbin. 2. Lift up and take out the filter. 3. Empty the dust bin.
- Page 11 CLEANING AND MAINTENANCE 1. Clean the filter with a soft bristle brush to remove the dirt attached on the surface. 2. If needed, you may rinse the dust bin under tap water. It is not necessary to wash it every time. Do not put it into the washing machine for cleaning.
-
Page 12: Cleaning The Intake Valve
CLEANING AND MAINTENANCE Replacing New Filter 1. After a period of use, the filter is required to be replaced. If the filter is too dirty, the airflow is blocked and the suction power will be lowered. 2. If the filter becomes too thin (due to cleaning or washing) or torn, it must be replaced immediately, as dust and dirt may be sucked into the chassis and causes damage to the robot. -
Page 13: Troubleshooting
TROUBLE SHOOTING Solution Problem Possible Cause The power low indication Battery power is low due to Recharge the batteries. the following reasons: lamp lights up after RC 1.The batteries are not fully 310A is turned on. charged yet. 2.The batteries have self- discharged after a period of idleness. - Page 14 Frequently Asked Questions (FAQs) A. Battery and Charging 1. How long does it take to fully charge the robot? It takes about eight hours to fully charge the robot. 2. Why does it take so long to charge up the battery? The robot uses a slow charging technology which could keep up the work performance and lif span of the rechargeable batteries better.
- Page 15 11.My home is quite big. Could I use RC 310A? Yes, you can. However, since the working area for RC 310A is around 300-330 square feet (30 square meters), you may need to separate your home into several portions and do the cleaning in several rounds.
