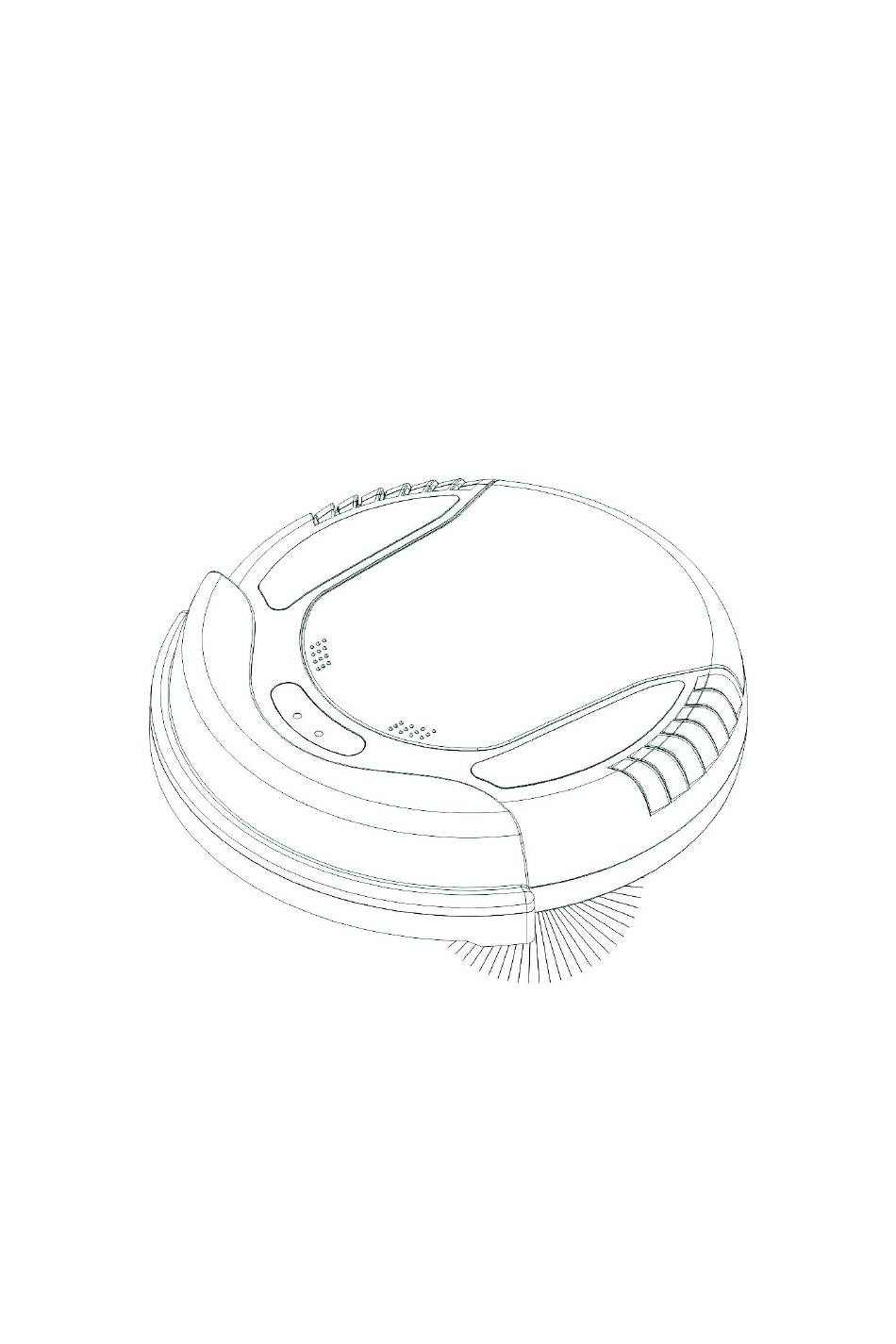

- Page 1 AiBOT Robotic Vacuum Cleaner RC 320A User ’s Manual...
-
Page 2: Table Of Contents
SAFETY INSTRUCTIONS -------------------------------------------- 2 * Safety Instructions * Battery and Recharging Instructions SPECIAL FEATURES ------------------------------------------------- MAJOR COMPONENTS AND ATTACHMENTS---------------- RC 320A OVERVIEW -------------------------------------------------- 4 BATTERY INSTALLATION AND REMOVAL --------------------- RECHARGING BATTERY -------------------------------------------- ADJUSTMENT OF ANTI-CLIFF SENSORS---------------------- GENERAL OPERATION ---------------------------------------------- * Preparation for Operation... -
Page 3: Safety Instructions
11.If RC 320A malfunctions or is damaged by force, do not operate RC 320A regardless the cause. Call your local dealer for service information. 12.Turn off the power and remove the battery from RC 320A if the unit will not be used for a long period of time. -
Page 4: Special Features
You can also operate this unit with the provided micro fiber cloth to help you clean more effectivel The RC 320A Robotic Vacuum Cleaner is definitely a household helper. Spiral... -
Page 5: Rc 320A Overview
RC 320A OVERVIEW Heat Vent Dust Bin Inside Big Cover Bumper Control Panel Power Switch d. c. jack Handle Grip Front Small Wheel Anti-Cliff Sensor Intake Wheel Cover Side Brush Wheels Anti-Cliff Sensor Vacuum on/off Switch Base... -
Page 6: Battery Installation And Removal
BATTERY INSTALLATION AND REMOVAL 1. Make sure the power switch of RC 320A is turned off. 2. Press and slide the battery cover (see image below). 3. Insert the battery plug into the socket (check the direction). 4. Place the battery in the battery section and put the big cover back on the unit. -
Page 7: Recharging Battery
Before charging, make sure the battery is correctly installed and the power switch has been turned to “OFF” position. 3. To do recharge, plug one end of the d. c. adaptor into the jack on the RC 320A and the other end into the AC power outlet to charge. -
Page 8: General Operation
In case of a loose cable is tangled with RC 320A, the cable might move around with RC 320A as it works and topple down a table, chairs, or a cabinet and cause property damage. -
Page 9: Using Dusting Paper
USING DUST PAPER 1. Insert the border of the dust paper into the grip slot of the dust paper holder. 2. Put the 2 bolts of the dust paper holder at the 2 holes (inside the 2 big wheels) and click the holder on the bottom of the cleaner. *Be sure to install the dust paper first before the cleaner starts to clean with the dust paper holder. -
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE We suggest after each use, clean any dirt left behind in the dust bin and filter. Cleaning the Dust Bin 1. Press the "A" points and slide the cover in the direction of arrow "B" shown below to remove the big cover from the cleaner. - Page 11 CLEANING AND MAINTENANCE 3. Open the upper cover of the dust bin. 4. Lift up and take out the filter. 5. Empty the dust bin.
- Page 12 CLEANING AND MAINTENANCE 6. Rinse the dust bin with tap water. It is not necessary to wash every time. Do not put it into a washing machine for cleaning. 7. Periodically clean the filter with a soft bristle brush. 8. Once dry, reinstall the filter and the dust bin lid. 9.
-
Page 13: Cleaning Intake
CLEANING AND MAINTENANCE Cleaning the Intake After repeated use, dirt and dust can accumulate around the intake of the RC 320A and the working efficiency can be reduced. To ensure the best efficiency and constant airflow, the intake should be cleaned periodically. -
Page 14: Troubleshooting
TROUBLE SHOOTING Solution Problem Possible Cause Battery power is low due to the The power low indication following reasons: lamp lights up after RC 1.The batteries are not fully 320A is turned on. Recharge the batteries. charged yet. 2.The batteries have self- discharged after a period of idleness. - Page 15 Frequently Asked Questions (FAQs) A. Battery and Charging 1. How long does it take to fully charge the robot? It takes about eight hours to fully charge the robot. 2. Why does it take so long to charge up the battery? The robot uses a slow charging technology which could keep up the work performance and lif span of the rechargeable batteries better.
- Page 16 11.My home is quite big. Could I use RC 320A? Yes, you can. However, since the working area for RC 320A is around 620-650 square feet (around 60 square meters), you may need to separate your home into several portions and do the cleaning in several rounds.
