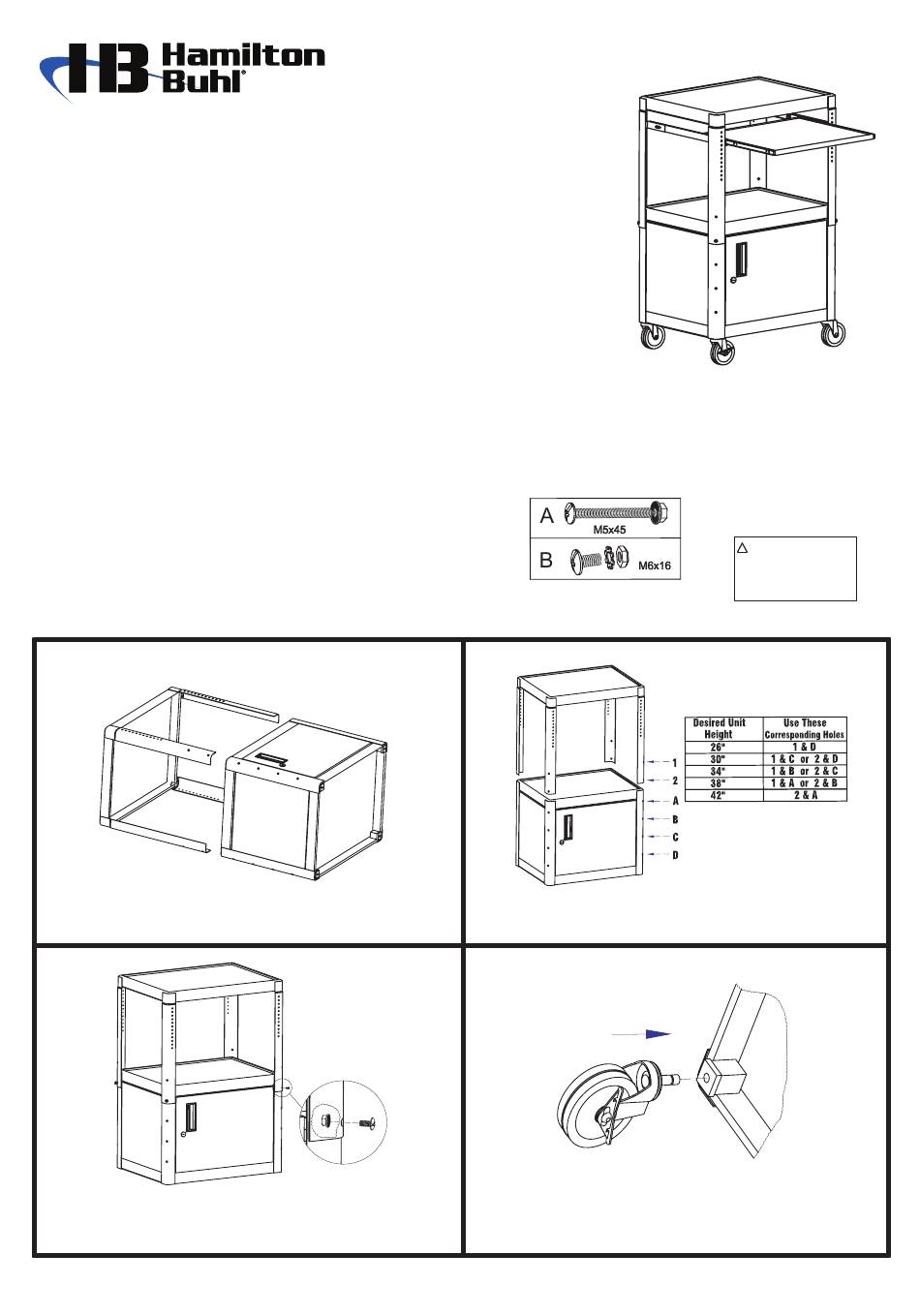

HamiltonBuhl SVCAB42226E Instruction Sheet

Instruction Sheet
HamiltonBuhl Adjustable AV Cart with
Locking Security Cabinet and Laptop Shelf
Model #: SVCAB42226E
Warranty begins the date item ships from our warehouse.
All products, except metal cart, have a one year warranty
from original date of shipment, unless otherwise noted.
Metal carts have a limited lifetime warranty on all housing
components; however, carts have a one year warranty on
any electrical/mechanical components.

Parts list

Qty. Description
1 Top table section with decal
1 Two shelf bottom section
1 Electrical bracket
1 Power cord
1.
Insert top table section onto bottom section.
3.
Insert two bolts, washer and nuts(see screw table B) into each leg
of table. Washer should be on the inside of leg. Tighten all bolts
and nuts.
Qty. Description
3 Screws and hex nuts (A)
9 Set Phillips head bolt, washer and hex nut (B)
2 Casters with brakes
2 Casters without brakes
Note: This unit is easier to assemble with two people.
(Continued on next page)
Screw table
Some screws may already be
screwed into related parts.
2.
Align corresponding holes of unit to obtain desired height of
table as needed.
4.
Lay unit on floor . Insert casters with brakes into opposite
corner holes in the bottom of the unit. Insert other casters into
remaining holes of unit.
SVCAB4226E
Tools required
Screwdriver
Adjustable wrench/pliers
Rubber mallet
! PROP 65 WARNING: This product
contains the chemical known to the
State of California to cause cancer
and birth defects or other reproductive
harm.
Page 1
