Johnson LEVEL UP 1920-0800D Operator's Manual

Thank you for purchasing this Johnson digital T-bevel. We suggest you read this instruction manual
thoroughly before using the tool and save this instruction manual for future use.
Key Features:
• Reads interior and exterior angles with precision
• Large LCD for easy reading
• Measure, hold and transfer angles
• Two tools in one – digital sliding t-bevel and protractor

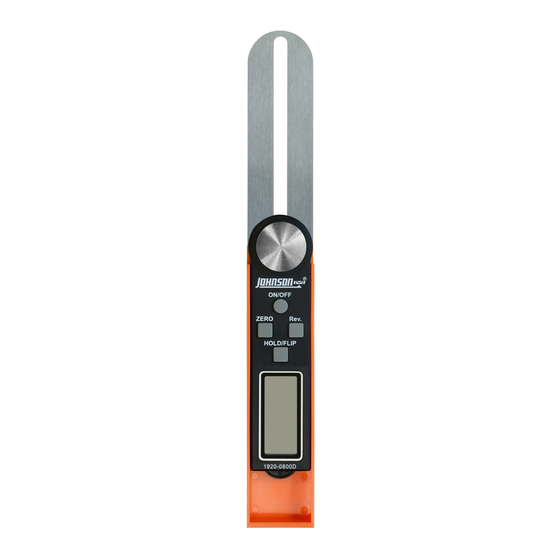

LOCATION OF PARTS/COMPONENTS
IMPACT RESISTANT
ABS HANDLE
LCD
BATTERY HOLDER
ON/OFF button: Short press when unit is off, turns unit on. The displayed value is based on
the position of the blade. Short press when unit is on, turns unit off. Five minutes of inactivity
automatically turns unit off.
ZERO button: Short press zeros the display regardless of the position of the blade. Measured
angles from this point on are referenced to the displayed value previous to zeroing. For example,
if the zero button was pressed while the blade was set to 30°, measured angles after zeroing are
now referenced to 30°. To rezero the display back to true zero, position the blade as shown, then
press zero button.
1. Position blade as shown.
2. Press ZERO button to rezero the display.
REV button: Short press gives you the reverse (miter) angle, with reference to 180°. For example,
pressing REV button while the blade is positioned at 45° converts the displayed value from 45° to
135° (180.0° - 45.0° = 135.0°). Pressing the button a second time, toggles the display between the
two values. Note "REV" is also shown on display when this feature is activated.
HOLD/FLIP button: Short press holds or releases currently displayed value. When value is held,
"H" is displayed in upper left hand corner of display. When held value is released, "H" in upper left
hand corner of display goes off and display reverts to currently measured value. Press and hold
for 3 seconds flips the display 180°.
Locking Knob: Rotate counterclockwise to loosen blade, allowing for adjustment to any angle.
Rotate clockwise to set desired angle.
INSERTING BATTERIES
Note: Unit comes with battery installed. For initial use,
remove protective tab from battery compartment.
1. Open battery compartment by pulling on battery holder tab.
2. Remove battery holder and install 3V CR2032 lithium battery
in holder, negative side up.
3. Re-install battery holder, making sure it is fully closed.
1920-0800D Operator's Manual
HOLD/FLIP
LOCKING KNOB
ZERO
STAINLESS STEEL BLADE
ON/OFF
REV
Download this manual at
www.johnsonlevel.com/manuals
1920-0800D
