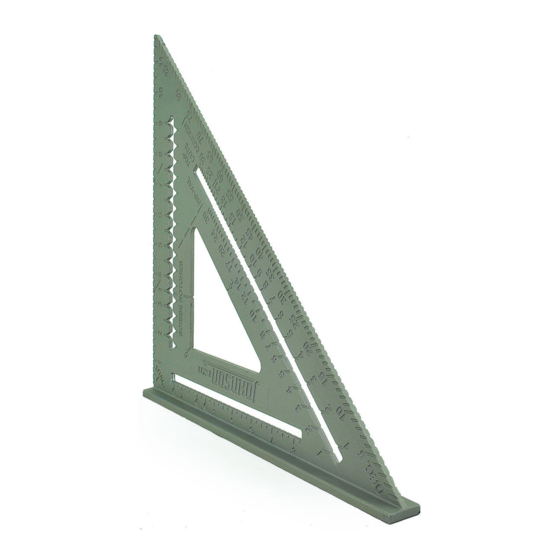

Johnson RAS-120 Manual

12'' professional aluminum rafter angle square with rafter square instruction book and tables
Hide thumbs
Table of Contents

Advertisement

Quick Links

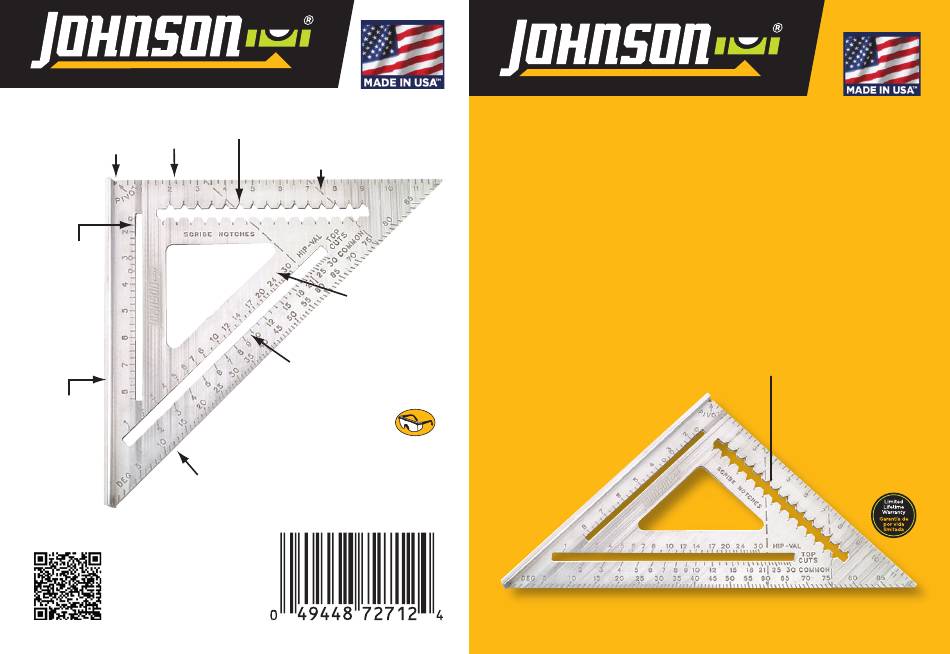

MARKING EDGE
Borde para marcado
PIVOT
Pivote
1/4" SCALE
(1-1/2"
TO 8-1/4")
Escala de 1/4"
(entre 1-1/2" y
8-1/4")
"T"-BAR
(FOOT)
Base para
ángulo
recto
DEGREE SCALE/
PROTRACTOR
Escala de
grados/transportador
1/4" SCRIBING NOTCHES (1-3/4" TO 9")
Muescas para marcaciones (entre 1-3/4" y 9")
RAFTER SEAT CUT
Indicación para corte de asiento
TOP CUTS/
HIP & VALLEY
RAFTER SCALE
Escala para cortes
superiores y cortes en
ángulo estilos Hip y Valley
COMMON RAFTER SCALE
Escala común para ángulos de vigas
Made in USA Hecho en EE.UU.
Patents Pending Patentes Pendientes
©2012 Johnson Level & Tool Mfg. Co., Inc.
Mequon, WI 53092
Montréal, Québec, Canada
www.johnsonlevel.com
12" Professional Aluminum
Rafter Angle Square
with Rafter Square Instruction Book and Tables
Escuadra Profesional de 12"
para Ángulos de Vigas
Manual de instrucciones y tablas para envigado incluidos
Continuous 1/4" Scribing Notches from 1-3/4" to 9" for Fast Rip Cut Layout.
Bordes continuos con muescas para
marcaciones de 1/4" entre 1-3/4"
y 9" para efectuar cortes
largos con diferentes
opciones de
espaciado.
12"
30cm
RAS-120

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAS-120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson RAS-120

Summary of Contents for Johnson RAS-120

  • Page 1 Base para largos con diferentes ángulo Made in USA Hecho en EE.UU. recto Patents Pending Patentes Pendientes opciones de ©2012 Johnson Level & Tool Mfg. Co., Inc. DEGREE SCALE/ espaciado. Mequon, WI 53092 PROTRACTOR Montréal, Québec, Canada Escala de www.johnsonlevel.com grados/transportador 12"...
  • Page 2 The Johnson® Rafter Angle Square is available in 7 inch and 12 inch sizes to accommodate various material dimensions. Here’s what makes Johnson® Rafter Angle Squares fast and efficient: • The new and improved 7 inch has continuous scribing grooves...
  • Page 3 SCRIBING NOTCHES (1" TO 5-1/2") RAFTER SEAT CUT MARKING PIVOT EDGE TOP CUTS/ 1/4" SCALE HIP & VALLEY (1" TO 3-1/2") RAFTER SCALE COMMON RAFTER SCALE “T”-BAR (FOOT) DEGREE SCALE/PROTRACTOR...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Types of Rafters ......4 Rafter Measurements ..... 6 Inches to Feet Conversion (Table A) .

  • Page 5: Types Of Rafters

    TYPES OF RAFTERS COMMON RAFTER: A rafter that runs perpendicular (90°) from the wall plate to the roof ridge when looking straight down at the roof. When looking from the side, its length forms the diagonal leg (or hypotenuse) of a right triangle that has its vertical leg equal to the rise and its horizontal leg equal to the run (see Figures 1, 3 and 8).

  • Page 7: Rafter Measurements

    RAFTER MEASUREMENTS The use of our square for rafter layout is based on two simple and common building measurements: (1) the rafter run, and (2) the rafter rise. These are available from either the building blueprints, drawings, or actual measurements. The tables included in the back of this book are also based on these two simple measurements (see Figures 2 and 3, and also the tables starting on page 40).
  • Page 8 FIG. 2 Rafter Runs and Rises for Different Style Roofs.
  • Page 9 RISE X 12 RAFTER INCH RISE PER + RISE LENGTH FOOT RUN USE TABLES FIG. 3 The Common Rafter. Then the run is found by dividing in half the building width. When a ridge board is being used, deduct 1/2 its thickness from the run. STEP 2. OBTAIN ROOF RISE: Find the distance you wish the roof ridge to be above the wall (in feet) by measuring, calcu- lating or obtaining it from the blueprints (see Figure 2).

  • Page 10: Inches To Feet Conversion (Table A)

    TABLE A Change Inches to Feet 1" = .08' 7" = .58' 2" = .16' 8" = .67' 3" = .25' 9" = .75' 4" = .33' 10" = .83' 5" = .42' 11" = .92' 6" = .50' STEP 3. CALCULATE INCH RISE: For example, with the Run = 13' 0" and Rise = 8' 9". First convert the rise to feet in decimal form, using TABLE A. Therefore, the Rise = 8.75'. Now, using the formula for the “Inch Rise”:...
  • Page 11 FIG. 4 Common Rafter Layout. length. For our rafter we get 15' 7-1/2". This is the rafter length from the top cut to the seat plumb mark (see Figure 4). NOTE: For a run greater than that given in the tables, simply add any two runs that will equal the run desired. Then find the lengths for those two rafters and add them together. For example, say that your run is 38', add the length for a 18' run and the length for a 20' run together. Or add a 15' run’s length and a 23' run’s length together. TAIL OR EAVE LENGTH: The tail or eave overhang now must be added to the rafter length (see Figure 5 for sug- gested eave construction). With our example, let us use...
  • Page 12 FIG. 5 Suggested Eave Construction.

  • Page 13: Common Rafter Layout

    a tail run of 1' 9". In the same “Common” table as used above, for an 8” rise, we find: 1' Run = 1' 2-1/2" 9" Run = 10-7/8" 1' 9" Tail = 2' 1-3/8" COMMON RAFTER LUMBER LENGTH: To obtain the total length of the rafter, an allowance for the bottom plumb cut must now be made (see Figure 4). This allowance can be obtained by using the tables. In our example, let us use a 2 x 6 piece of lumber which will give us a depth of 5 1/2 inches. From the bottom allowance table (using 8" rise again), the common and jack allowance equals 3-11/16 inches. The total common rafter lumber length then becomes: RAFTER LENGTH...
  • Page 14 FIG. 6 Top Plumb Cut of a Common Rafter.
  • Page 15 FIG. 7A Seat Notch or Bird’s Mouth Layout. FIG. 7B Seat Notch or Bird’s Mouth Layout. building. Now line up the dashed line (above the 80° incre- ment on the square) with the plumb mark (see Figure 7A & 7B). Draw the horizontal seat mark, a perpendicular line, along the bottom of square. Never notch more than halfway through the rafter and make all seat notches the same depth.

  • Page 16: Hip And Valley Rafters

    as you did in Step 1. You may wish to leave the tails long un- til all the rafters are in place, so that you can mark the ends to a line and then cut. NOTE: The top and bottom cuts on the rake board are also done in the same way as a common rafter but the distance from the top cut to the bottom cut is the rake board length.
  • Page 17 HIP-VAL LENGTH: Use the table on page 47 to obtain the hip or valley rafter length (continuing the 8 Inch Rise ex- ample from page 9, Step 3). In our example an 8 Inch Rise is used, therefore find the column headed “Run Ft.” and locate 13'. To the right read the column headed “Hip or Val. Rafter Length” and find a length of 20' 3-7/8" (see Figures 8, 9, 10, 12 and 13). FIG. 9 View of Hip Rafter Layout.
  • Page 18 FIG. 10 Hip Rafter Layout. TAIL OR EAVE LENGTH: Use the same procedure as you did for the common rafter but remember to use the Hip- Val column. Again we have in our example a tail 1’ 9” long, thus giving us: 1' Run = 1' 6-3/4" 9" Run = 14-1/8" 1' 9" Tail = 2' 8-7/8" NOTE: If a miter is desired, add for hip or val miter allow- ance from the tables (see Figures 10 and 13).

  • Page 19: Hip Rafter Layout

    and a miter allowance (using a 1 1/2" actual rafter thick- ness) we get: RAFTER LENGTH = 20' 3-7/8" TAIL LENGTH 2' 8-7/8" BOTTOM PLUMB ALLOW. = 3-11/16" MITER ALLOWANCE 7/8" LUMBER LENGTH = 23' 5-5/16" NOTE: Only add miter allowances if they are used. HIP RAFTER LAYOUT STEP 1. TOP PLUMB CUT: The square is used in the same manner as in Step 1 of the common rafter top plumb cut.

  • Page 20: Intersection Of Hips On Ridge

    used, make another plumb mark on the other side of the raf- ter just opposite of the bottom plumb mark (see Figure 10). STEP 4. CUTTING HIP RAFTER PATTERN: With your saw set at 45°, cut the top plumb cut, making sure the top bevels are opposite for opposite rafters. Setting the saw at 45° automatically gives the plumb cut and the side cut bevel. Make bottom plumb cut on a 45° angle if miter is used. If a bevel is not needed, set saw at 90°. The seat notch is made with the saw at 90° (see Figures 9 and 10). INTERSECTION OF HIPS ON RIDGE To find the intersection points of the hip on the ridge rafter, cut ridge one foot longer at the point where hips intersect the ridge.

  • Page 21: Valley Rafter Layout

    Now mark across top of ridge (as shown). This mark will be the center of the two intersecting hips. If a common rafter is to be used, the ridge will be cut off at this mark and the common rafter butted up against it (see Figure 9). If no common rafter will be used, cut the ridge about 2" longer. This will allow you to nail through the ridge into the hip. VALLEY RAFTER LAYOUT STEP 1.
  • Page 22 FIG. 12 View of Valley Rafter Layout. STEP 3. BOTTOM OR TAIL PLUMB CUT: Measure down the top of the valley rafter from the SEAT PLUMB MARK and mark the tail length (in our example: 2' 8-7/8"). Be sure to add the miter allowance in the measurement, if used (see Figure 13). Make the bottom plumb mark with the square in the normal manner. STEP 4. RAFTER PATTERN CUTS: To make the top and bottom cuts, tilt the saw at 45° (see Figure 13). Also make the seat miter cuts. Now change the saw tilt to 90° for the horizontal seat cut.

  • Page 23: Jack Rafters

    FIG. 13 Valley Rafter Layout. JACK RAFTERS JACK RAFTER LENGTH: The Jack Rafter Tables are differ- ent than those for the other rafters. The table lists, in the first column, the varying center-to-center spacing of the jack rafters. Then in the second column is the difference in length from one jack to the next (see Figures 14 and 15).
  • Page 24 FIG. 14 Top View of Hip Jack Rafter Spacing.
  • Page 25 FIG. 15 Top View of Valley Jack Rafter Spacing. distance from the edge of the last common rafter to the intersection of the hip and ridge, or the valley and top plate (for a valley jack). This measurement is called (P) in Figures 14 and 15. Now subtract the measurement (P) from the spacing you are using (W). The result (W – P) is the distance from the intersection of the hip and ridge to the first hip jack or the plate corner to the first valley jack.

  • Page 26: Jack Rafter Layout

    COMMON RAFTER LENGTH = 15' 7-1/2" SUBTRACT (W – P) FROM TABLE 1' 2-3/8" FIRST HIP JACK RAFTER LENGTH = 14' 5-1/8" The tail length must now be added to this length. For all remaining jacks, subtract the full spacing (W). Example: finding in the tables the amount to subtract for a spacing of 24", we get: FIRST HIP JACK RAFTER LENGTH = 14' 5-1/8"...

  • Page 27: Dormer Rafters

    The common scale on the square is used for all jack rafters. Whenever a jack rafter rests against a hip or valley rafter, mark a plumb cut, and then cut at a 45° along the mark. This will give both the side cut and the plumb cut. Angles should be checked for direction before cuts are made. See Figures 11 and 14 for the center common rafter at the end of the ridge.

  • Page 28: Degree Scale

    roof. For a pitched roof, use the angle scale and make your mark next to the angle that is the result of the roof inch rise angle minus the overhang inch rise angle. DEGREE SCALE With the degree scale on our square, any angle can be found on a board. Figure 16 shows a couple of examples. To find an obtuse angle, for example 105°, put the pivot point on the mark where the cut is to be made. Lay the square so that the “T” bar is held tight against the board and draw a perpendicu- lar line across the board.

  • Page 29: Stair Layout Example

    STAIR LAYOUT EXAMPLE With our square, stair layout can be done simply and efficiently. The layout can be done without hours of calcula- tions. Basic math and the use of a calculator with a square root function are all that are needed. STEP 1. FIND STEP MEASUREMENTS: We start with the to- tal rise (see Figure 17) to find the number of steps required.
  • Page 30 1. F ind the approximate number of steps with the following formula: TOTAL RISE (inches) APPROXIMATE NO. OF STEPS = 7" For example, let’s assume a 8' 6" rise = 102” 102" APPROXIMATE NO. OF STEPS = 7" 14.57" NOW THE ACTUAL NUMBER OF STEPS WOULD BE THE WHOLE NUMBER, IGNORING ANY FRACTION, i.e., 14 STEPS. Next, find the actual step rise by using the following computation. TOTAL RISE (inches) ACTUAL STEP RISE = NO. OF STEPS 102" In our example: ACTUAL STEP RISE = 7.29"...
  • Page 31 The ideal inch rise is 7 or 8 (or 30° to 35°) but may be from a 5-inch rise to a 14-inch rise depending on the circumstances. The step rise or run may be modified if the run becomes impractical or if the minimum head room is under 6 1/2 ft. Check the head room by measuring down along a plumb line dropped from the lowest ceiling point to where the tread beneath would be. To find the tread height, count the number of steps necessary to get under the plumb line and then multiply by the step rise.
  • Page 32 STEP 2. LAYOUT STRINGER: First, find the step incline length (see Figure 18) by using the following formula: STEP INCLINE (STEP RISE) + (STEP RUN) In our example: STEP RISE = 7.29 STEP RUN = 10.21 USING THE FOLLOWING INCLINE FORMULA: STEP INCLINE (7.29) + (10.21) (53.14) + (104.24) 157.38 12.545 NOTE: The symbol is the square root symbol.
  • Page 33 FIG. 19 Step Layout. Now, draw the bottom plumb line using your inch rise on the common scale of the square, exactly as you did for the common rafter (see Figures 18 and 19). If you wish to conserve wood, adjust the bottom plumb line so that its length is equal to the step rise. Next draw the bottom floor line by measuring down the bottom plumb line the dis- tance of the step rise minus the tread thickness. In our ex- ample, with a 1" tread; 7.29" minus 1.00" giving you 6.29", or 6 5/16". Use the square the same way as you did for the bird’s mouth horizontal seat mark (See 7A & 7B and 19).
  • Page 34 The outside step corners should now be marked off (again see Figure 18). Starting from the bottom plumb line, mea- sure up along the top edge of the stringer the distance of a step incline. Repeat this for each step corner, until you’ve reached the stringer incline length. Make another step incline mark for a top plumb line. Now draw the riser plumb lines for all the steps, using the square as you did for the bottom plumb line.

  • Page 35: Solar Panel Layout Example

    TABLE B Change Decimals to Fractions .06" = 1/16" .56" = 9/16" .13" = 1/8" .63" = 5/8" .19" = 3/16" .69" = 11/16" .25" = 1/4" .75" = 3/4" .31" = 5/16" .81" = 13/16" .38" = 3/8" .88" = 7/8" .44" = 7/16" .94" = 15/16" .50" = 1/2" SOLAR PANEL SUPPORT EXAMPLE Let us build a rafter support for a series of flat plate collectors on a south-facing 8-inch rise roof.
  • Page 36 FIG. 20 A Rafter Support Structure for Solar Panels. Now find the support rafter rise and run by using the tables somewhat in reverse from the way you have done so far. First find the proper table for your support rafter inch rise and locate your length under the common rafter length column (note: you may have to refer to both the Run (ft.) column plus the Run (inch) column in referring to...
  • Page 37 support rafter length. To begin with, we find a 2' run having a 3' 9" length. This then leaves a 5" length which results in an approximation of a 2-11/16" run. If needed, approximat- ing can be done with the following equation, if desired: Lm – Ll ( Rh x ( Lh – Lm Rm = Lm – Ll 1.00 Lh –...
  • Page 38 FIG. 21 Rafter Layout For A Solar Panel. and the front overhang rafter thickness. The roof run between points A and B is found by: ROOF RISE (in.) x 12 ROOF RUN (in.) = INCH RISE 42.25" x 12 8 inch rise 63.37" 5' 3-3/8"...
  • Page 39 From this we can get the overhang rafter length, noting that we are using 2 x 6 rafters giving a thickness of 1-1/2": ROOF RUN BETWEEN A & B – SUPPORT RAFTER RUN – FRONT OVERHANG THICKNESS = OVERHANG RAFTER LENGTH 63.37" – 26.69" – 1.50" = 35.18" or in feet: = 2' 11 3/16" Lastly we need to find the pitched rafter length, the rafter above the horizontal overhang rafter. In our example, the pitched rafter length will equal the support rafter length (i.e., 50").
  • Page 40 The pitched rafter top cut layout (at point C in Figure 21) is the same as the support rafter bottom cut layout (at point A). For the pitched rafter bottom cut layout (at point D) the following equation is used: BOTTOM ANGLE = SUPPORT ANGLE + ( 2 x ROOF ANGLE ) – 90° In our example: 57 3/4° + (2 x 33 3/4°) – 90° 35 1/4° Use this equation when the pitched rafter length equals the support rafter length.
  • Page 65 For additional copies of this instruction manual go to www.johnsonlevel.com The manufacturer of this product is not responsible for any errors or omissions that may occur in the production of this reference guide.
