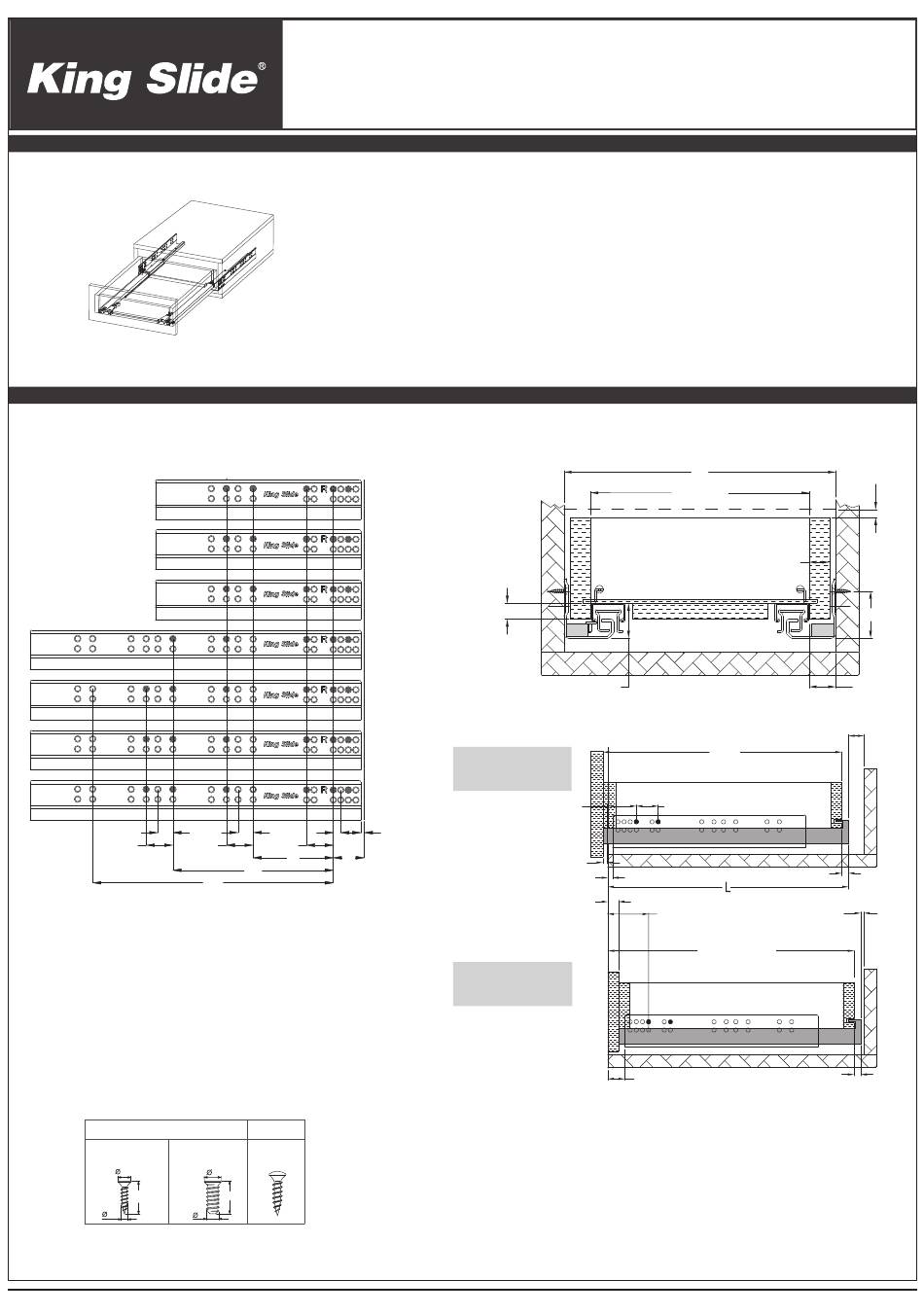

King Slide 1A89 Installation Instruction

規格 / Specifications
尺寸規格 / Dimensional Specifications
■
孔位圖 / Cabinet hole position
18
32
О
喇叭頭木螺絲 系統螺絲
Wood Screw System Screws
7.5
17
4.0
IYA
隱藏式按開滑軌說明書
Installation Instruction for
1A89-250
1A89-300
1A89-350
1A89-400
1A89-450
1A89-500
1A89-550
9
18
32 32
37
96
192
288
X
W: 櫃子的內部寬度 DL: 抽屜長度 X: 抽頭板厚 L: 滑軌長度 IDL: 嵌入抽屜的長度 P: 孔位間距
8
W: Internal Cabinet Width DL: Drawer Length X: Drawer Front Thickness
10
L: Slide Length IDL: Internal Drawer Length
6
Note : King Slide有權變更目錄中所示之產品規格。 實品可能會與圖中所示不同，若兩者相異時，請以最終實品為準，謝謝。
• 長度: 250mm to 550mm
• 開啟型式: 全開
• 適用抽牆板厚: 16mm
• 最大荷重: 34 kg(75 lb)/pair
• 安裝型式:抽屜底面
• 材質: 熱浸鍍鋅鋼板
• 高度調整: +3.5mm
• 深度調整: +2.0 /1.0mm
■
施工間隙 / Space requirements
max 13
抽屜面板蓋柱式設計
Overlay Drawer Front
4 (max)
*min gap 4
( push-open)
抽屜面板入柱式設計
Inset Drawer Front
1A89
• Length: 250mm to 550mm
• Travel: Full Extension
• Maximum Drawer Side Thickness: 16mm
• Max. Loading Capacity: 34 kg (75 lb) /pair
• Mount: Undermount
• Material: Galvanized Steel
• Height Adjustment: +3.5mm
• Depth Adjustment: +2.0 /1.0mm
W
W-42 +0.5
- 1.5
min 27.5
L-10
37 32
+2.0
-1.0
4(max)
X
Y
L - 10+X+4*
Z
=X+4 + * 4
P: Pitch Between Holes
min 6
max 16
37
21
min 10
10
min 10
10
