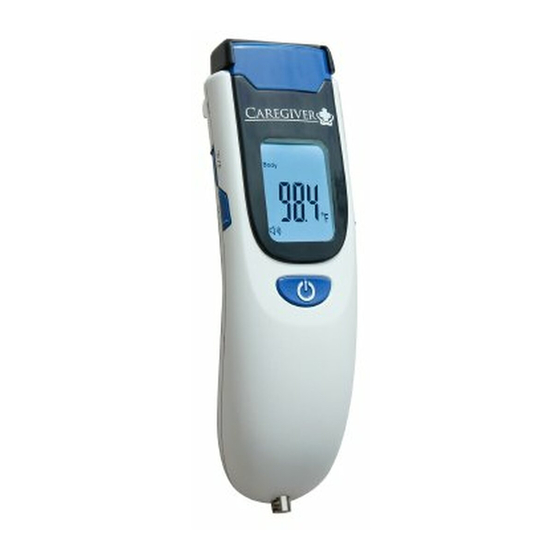

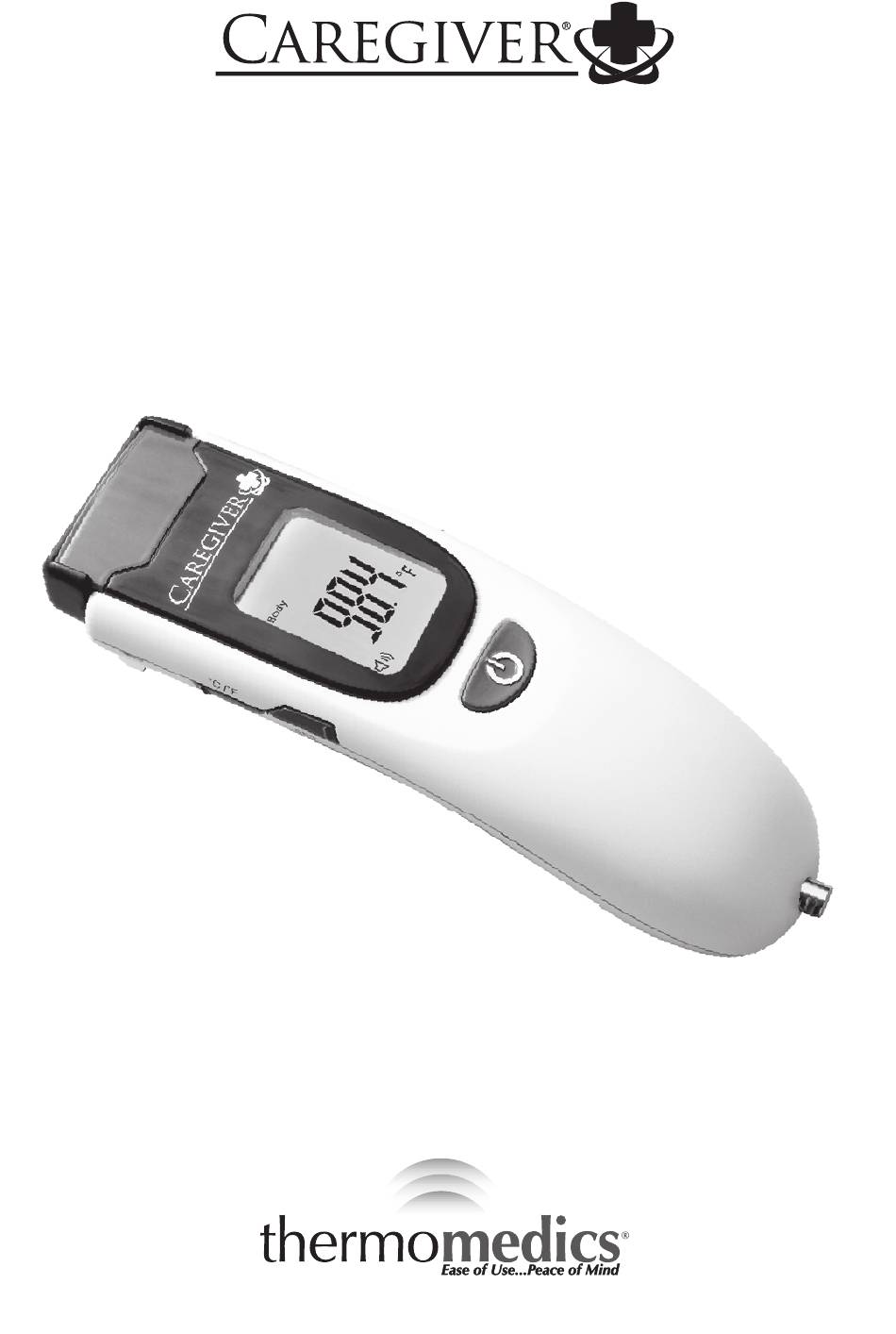

- Page 1 Professional Clinical Thermometer With TouchFree™ Technology PRO-TF SERIES Model PRO TF-300 Instructions For Use Copyright© 2014 Thermomedics All Rights Reserved...
-
Page 2: Controls And Display
Low battery indicator Date indicator Date/Time Temperature reading Forehead Body temperature indicator Skin surface temperature indicator Room temperature indicator Memory mode Error warning 10. Temperature unit ˚F/˚C... -
Page 3: Table Of Contents
In the Box Caregiver ® Thermometer Model PRO-TF300, Sensor Cap, Quick Start Card, Instructions For Use Manual, Two “AA” Alkaline Batteries, Warranty Card. Table of Contents Controls and Display Introduction Features Intended Use Important Precautions Initial Setup Body Temperature Measurement Temperature Recall Changing ˚F/˚C Temperature Scale SURFACE and ROOM Temperature Modes... -
Page 4: Features
Features • Fast measurement that meets ASTM and ISO standards • Simple 1-button operation, no scanning required • No cross-contamination and may be used on sleeping patient • Audible and visual indication of completed temperature • Backlit LCD display and Low Battery indication • Long Battery Life of more than 10,000 temperatures (typical) with Sleep Mode • 30-temperature memory recall with date and time stamp... -
Page 5: Initial Setup
• Operating environment is from 50˚F to 104˚F (10˚C to 40˚C). • Do not expose to severe environments. Storage temperature is from -4˚F to 140˚F (-20˚C to +60˚C). • Do not use in presence of flammable anaesthetic mixtures. • Do not use on patients with scarred tissue or tissue compromised by skin disorders or trauma in the vicinity of the forehead measurement area;... -
Page 6: Body Temperature Measurement
Figure 2 Figure 3 Body Temperature Measurement About Body Temperature & Fever Body temperature can vary from one person to the next and also varies by location on the body and time of day. Temperatures measured from different sites, even at the same time, should not be directly compared. - Page 7 Inspect Sensor and remove any debris. Clean if necessary. Remove hair and perspiration from center forehead area. • If patient was lying face down or was wearing a hat or garment covering the skin, allow the forehead to be exposed to the air in the room for 5 minutes prior to taking reading.
-
Page 8: Temperature Recall
Temperature Recall If Caregiver is powered off (blank display), press POWER. Press MEM button and hold. The date and a number from 1 to 30 will be displayed indicating the temperature number. “01” is the most recently taken temperature and “30” is the oldest. (After 30 temperatures are stored, the oldest will be deleted) Release the MEM button and the “TIME”... -
Page 9: Setting Date And Time
Room temperature mode measures the temperature of the room in which the thermometer is located. Allow 20 minutes for the thermometer to adjust to abrupt changes in room temperature. Setting SURFACE or ROOM Modes 1. If Caregiver® is powered off (blank display), press POWER. 2. -
Page 10: Maintenance/Cleaning
Press SET to change the HOURS and toggle AM/PM. The “hours” digits will flash and “AM” or “PM” will light. Press MODE repeatedly to increase the hours by 1 or press F repeatedly to decrease the hours by 1. 10. Press SET to change the MINUTES. The “minutes” digits will flash. -
Page 11: Troubleshooting
HIGH Sensor Error Allow Caregiver® to equilibrate to or Ambient the current room temperature for 20 Temperature minutes. Contact Thermomedics® Unstable Support if this error persists. Body Mode Remove Sensor Lens cap. Allow Temperature patient to warm up in ambient... -
Page 12: Calibration Adjustment Mode
0.1°F. This will also alter the displayed reading in BODY mode but not necessarily by the same amount. Details on the recommended calibration interval, checking calibration and adjusting calibration are found at www.thermomedics.com in the knowledge base under calibration. Specifications Displayed BODY Mode: 94˚F to 108.0˚F (34.4˚C to 42.2˚C) Temperature Range SURFACE Mode: 32˚F to 140˚F (0˚C to 60˚C) - Page 13 Scandinavian Journal of Caring Science, 16(2), 122-128. U.S. and foreign patents pending Warranty (Warranty Card Included in Product Box) Prior to returning thermometer, contact Thermomedics® for return procedure. Purchase Date ____ / ____ / _______ Serial Number: _______________________ P|13...
- Page 14 P|14...
-
Page 15: Measurement Technique
P|15... -
Page 16: Service Center
Caregiver IFU TH24-002-00 REV. 0 Copyright © 2014 Thermomedics All Rights Reserved...
