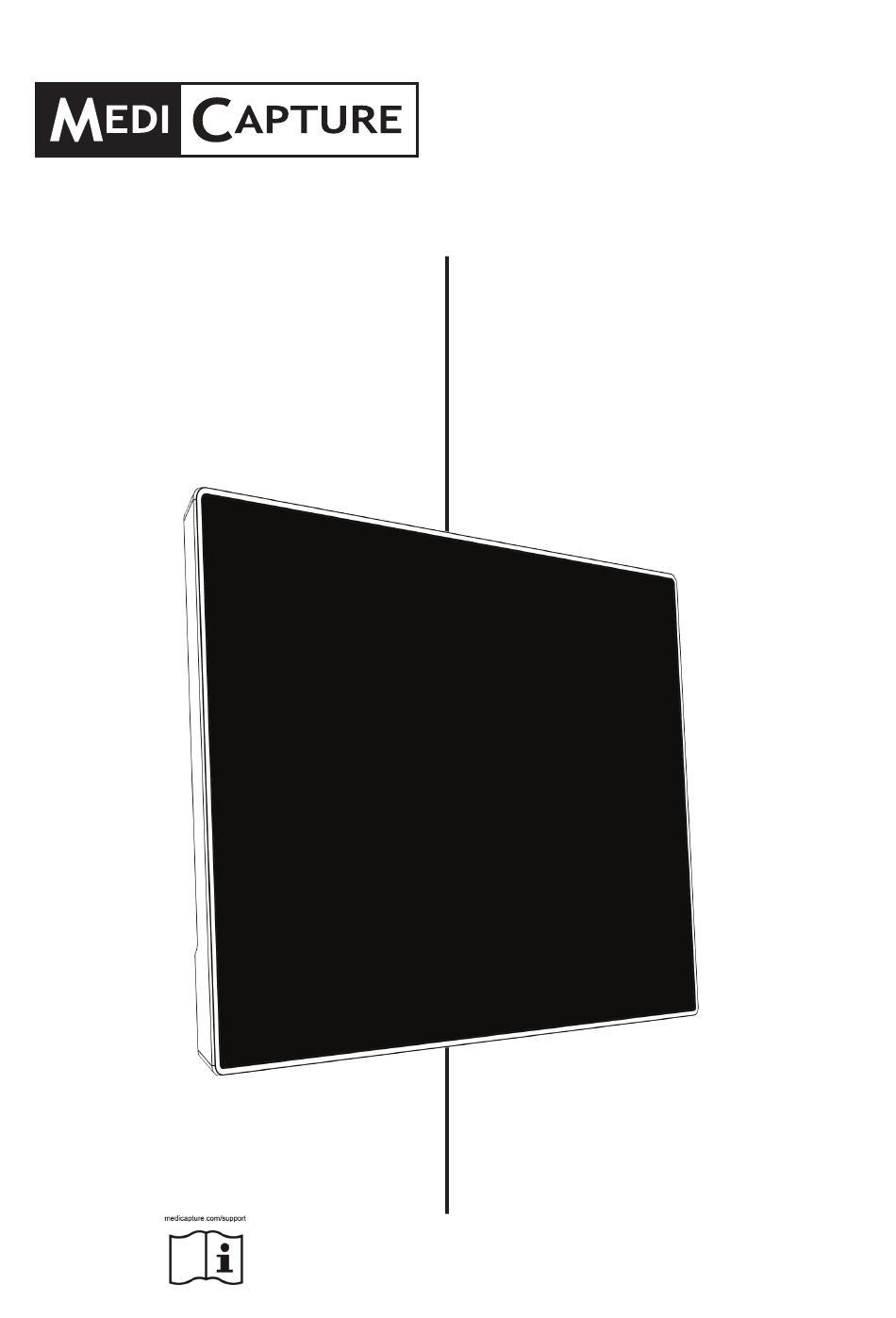

- Page 1 MTS101 Monitor with Touch Screen Instructions for Use English For more translations (available in pdf), please visit www.medicapture.com/support MTS101-IFU01-EN-220630-MC...
-
Page 2: Symbols In The Manual
MediCapture MTS101 Instructions for Use – English ® Precautions for Use Symbols in the manual Warning This image indicates the manufacturer Indicates a potentially hazardous situation and appears next to the manufacturer’s or improper use that could result in serious name and address. - Page 3 MediCapture MTS101 Instructions for Use – English ® WARNING Do not modify this equipment without authorization of the manufacturer. To reduce the risk of fire or shock hazard, do not expose this equipment to rain or moisture, this device is designed for indoor use only.
-
Page 4: Symboles Utilisés Dans Le Manuel
MediCapture MTS101 Instructions for Use – English ® (CANADA ONLY) Note régionale pour le Canada Précautions d’utilisation Symboles utilisés dans le manuel AVERTISSEMENT Cette icône représente le fabricant et apparaît Indique une situation potentiellement avec le nom et l’adresse de celui-ci. - Page 5 MediCapture MTS101 Instructions for Use – English ® (CANADA ONLY) Note régionale pour le Canada MISE EN GARDE Ne pas modifier cet équipment sans autorisation expresse du fabricant Afin de réduire les risques d’incendie ou d’électrocution, n’exposez pas cet équipement à la pluie ou à l’humidité. Cet équipment est exclusivement destiné...
-
Page 6: Table Of Contents
MediCapture MTS101 Instructions for Use – English ® Table of Contents Contents Symbols in the manual ..............................2 Symbols on the product (Not all symbols are printed in all regions) ................2 Symboles utilisés dans le manuel ..........................4 Symboles utilisés sur le produit (Tous les symboles ne sont pas imprimés dans toutes les régions.) ......4 Table of Contents ................................6... -
Page 7: Residual Risks
MediCapture MTS101 Instructions for Use – English ® Residual Risks Important Safety Instructions to avoid residual risks. 1. Read all of these instructions and Instructions for Use of the host device. 2. Keep these instructions. 3. Heed all warnings in these instructions. -
Page 8: Data Protection
2. Connect the graphical interface connection / video connection to the HDMI port. 3. Connect the USB connector to the USB port (type C) of MTS101 and connect it to the USB-A port of the host device. MTS101 requires about 5V, 0.8 A power from the USB port of the host device. To provide MTS101 with sufficient power, it is recommended to connect it to the USB3.0 host port (blue color). -
Page 9: Compatibility To Other Devices
MTS101 is compatible with MediCapture MVR and MVR Lite medical video recorders. MTS101 shall be operated by Class I type medical grade host devices only. The compatibility requirements for medical video sources in terms of video signal and power supply can be found in “Appendix A: MTS101 Specifications”... -
Page 10: Appendix A: Mts101 Specifications
MediCapture MTS101 Instructions for Use – English ® Appendix A: MTS101 Specifications Function Monitor with touchscreen function. Case Aluminium Aloy Screen Size 10.1” diagonal / (w x h: 216,6 x 135,4 mm) Screen Resolution 1920 x1200 Brightness 260 cd/m Contrast Ratio... -
Page 11: Compliance / Certification / Classification
MediCapture MTS101 Instructions for Use – English ® Compliance / Certification / Classification Compliance and EN 60601-1:2006 + A1:2013 + A12:2014 – Medical Equipment Safety, Certification EN 60601-1-2:2015 – Electromagnetic Compatibility EMC, IEC 61140:2016 - Basic safety publication, (2014/35/EU) Low Voltage Directive, EN IEC 63000:2018 –... -
Page 12: Appendix B: Medicapture Limited Warranty
MediCapture MTS101 Instructions for Use – English ® Appendix B: MediCapture Limited Warranty MediCapture Inc. (“MediCapture”) warranties the product(s) listed below to be free of defects in materials and workmanship for a period of one (1) year. Should warranty service be required, the warranty period will be extended by the number of days required to restore normal operation and return the product(s).
