Exploded Views; Subwoofer Section - Sony SRS-D2100 Service Manual

NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
↑
Parts color Cabinet's color
• Items marked "*" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.

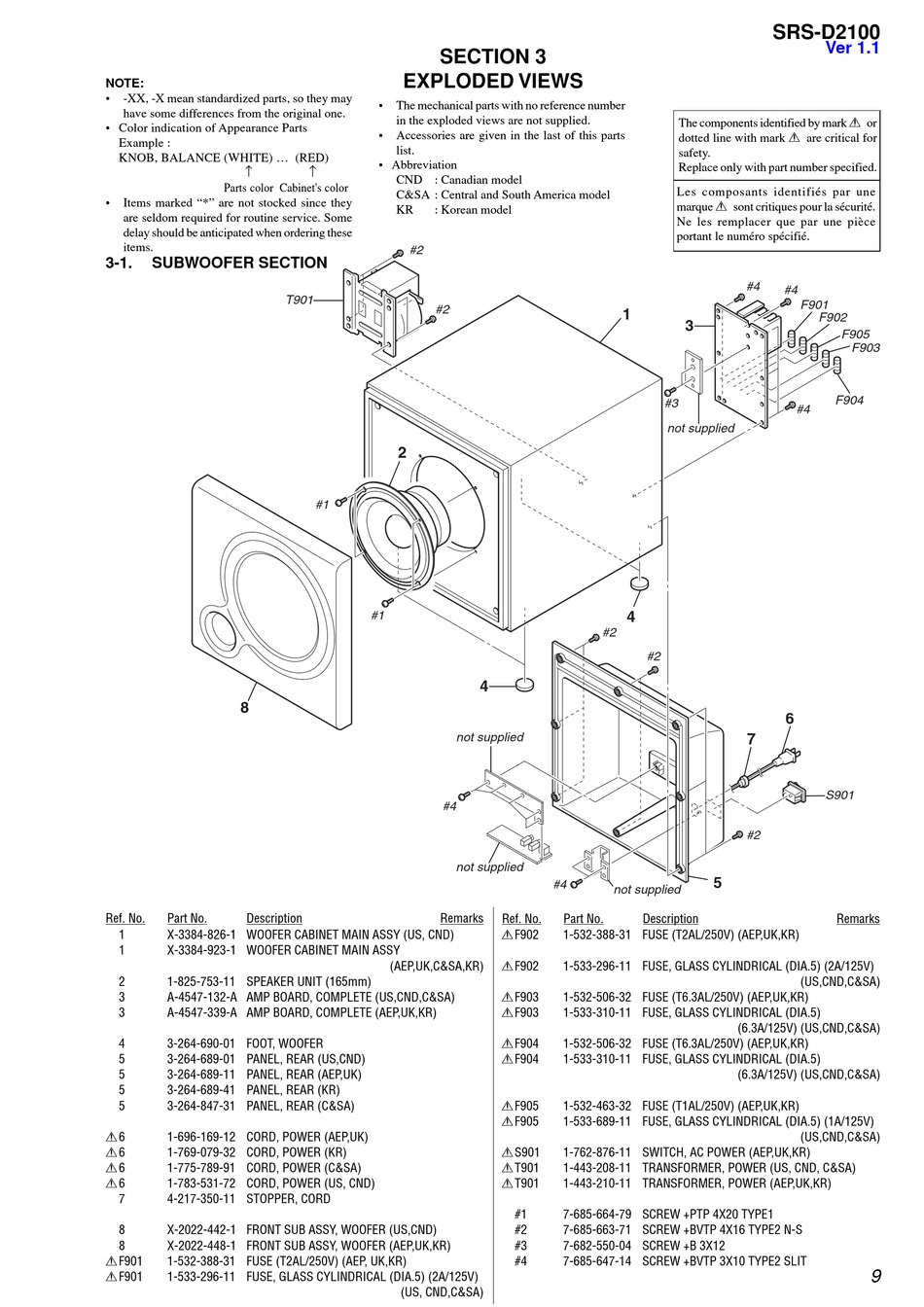

3-1.

SUBWOOFER SECTION

8
Ref. No. Part No. Description
1 X-3384-826-1 WOOFER CABINET MAIN ASSY (US, CND)
1 X-3384-923-1 WOOFER CABINET MAIN ASSY
2 1-825-753-11 SPEAKER UNIT (165mm)
3 A-4547-132-A AMP BOARD, COMPLETE (US,CND,C&SA)
3 A-4547-339-A AMP BOARD, COMPLETE (AEP,UK,KR)
4 3-264-690-01 FOOT, WOOFER
5 3-264-689-01 PANEL, REAR (US,CND)
5 3-264-689-11 PANEL, REAR (AEP,UK)
5 3-264-689-41 PANEL, REAR (KR)
5 3-264-847-31 PANEL, REAR (C&SA)
0 6 1-696-169-12 CORD, POWER (AEP,UK)
0 6 1-769-079-32 CORD, POWER (KR)
0 6 1-775-789-91 CORD, POWER (C&SA)
0 6 1-783-531-72 CORD, POWER (US, CND)
7 4-217-350-11 STOPPER, CORD
8 X-2022-442-1 FRONT SUB ASSY, WOOFER (US,CND)
8 X-2022-448-1 FRONT SUB ASSY, WOOFER (AEP,UK,KR)
0 F901
1-532-388-31 FUSE (T2AL/250V) (AEP, UK,KR)
0 F901
1-533-296-11 FUSE, GLASS CYLINDRICAL (DIA.5) (2A/125V)
SECTION 3

EXPLODED VIEWS

• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories are given in the last of this parts
list.
• Abbreviation
↑
CND : Canadian model
C&SA : Central and South America model
KR : Korean model
#2
T901
#2
2
#1
#1
not supplied
#4
not supplied
Remarks
(AEP,UK,C&SA,KR)
(US, CND,C&SA)
1
4
#2
#2
4
#4
not supplied
Ref. No. Part No. Description
0 F902
1-532-388-31 FUSE (T2AL/250V) (AEP,UK,KR)
0 F902
1-533-296-11 FUSE, GLASS CYLINDRICAL (DIA.5) (2A/125V)
0 F903
1-532-506-32 FUSE (T6.3AL/250V) (AEP,UK,KR)
0 F903
1-533-310-11 FUSE, GLASS CYLINDRICAL (DIA.5)
0 F904 1-532-506-32 FUSE (T6.3AL/250V) (AEP,UK,KR)
0 F904 1-533-310-11 FUSE, GLASS CYLINDRICAL (DIA.5)
0 F905 1-532-463-32 FUSE (T1AL/250V) (AEP,UK,KR)
0 F905 1-533-689-11 FUSE, GLASS CYLINDRICAL (DIA.5) (1A/125V)
0 S901 1-762-876-11 SWITCH, AC POWER (AEP,UK,KR)
0 T901 1-443-208-11 TRANSFORMER, POWER (US, CND, C&SA)
0 T901 1-443-210-11 TRANSFORMER, POWER (AEP,UK,KR)
#1 7-685-664-79 SCREW +PTP 4X20 TYPE1
#2 7-685-663-71 SCREW +BVTP 4X16 TYPE2 N-S
#3 7-682-550-04 SCREW +B 3X12
#4 7-685-647-14 SCREW +BVTP 3X10 TYPE2 SLIT
SRS-D2100
Ver 1.1
The components identified by mark 0 or
dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une
marque 0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
#4
#4
F901
F902
3
F904
#3
#4
not supplied
6
7
S901
#2
5
Remarks
(US,CND,C&SA)
(6.3A/125V) (US,CND,C&SA)
(6.3A/125V) (US,CND,C&SA)
(US,CND,C&SA)
F905
F903
9
