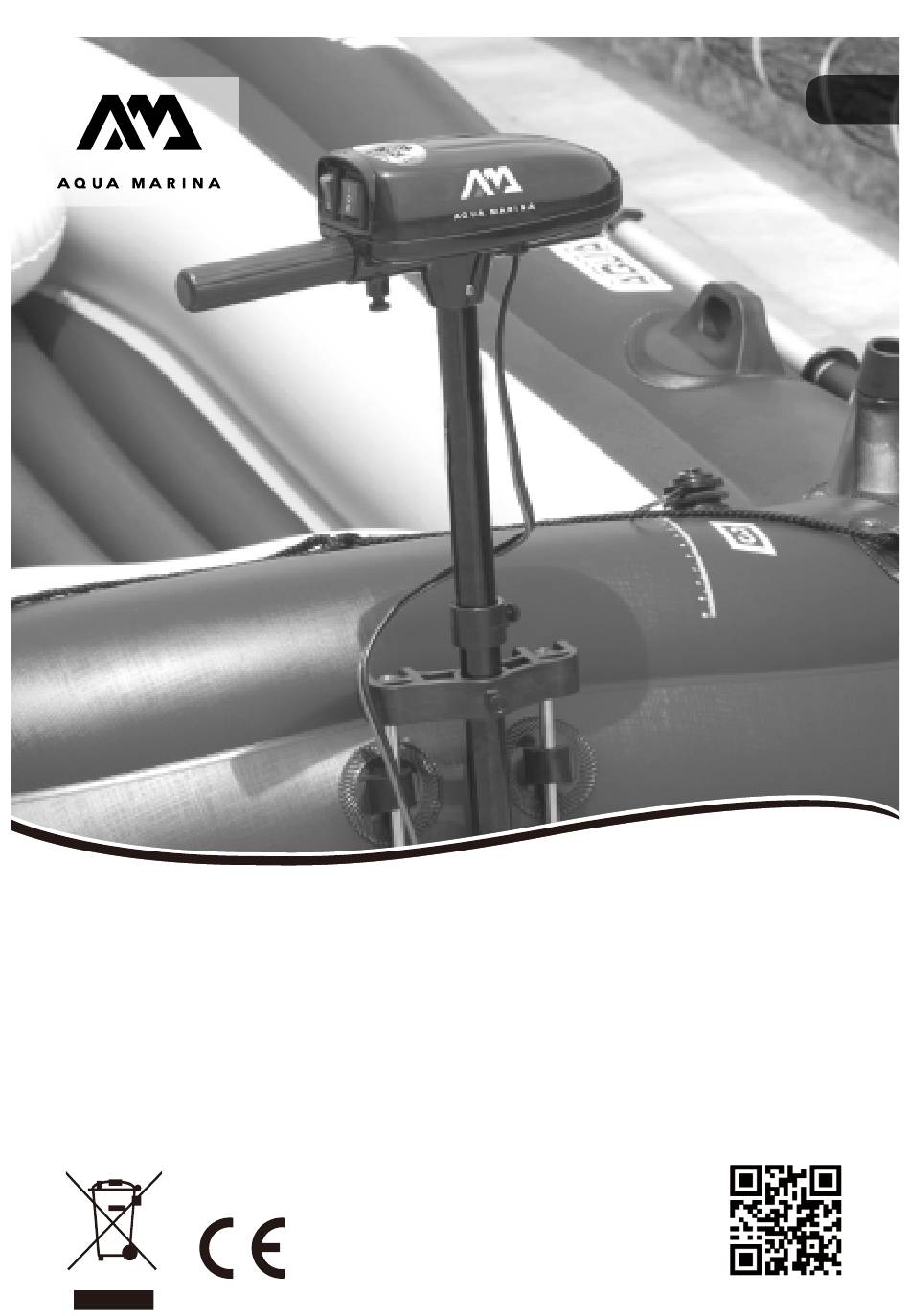

- Page 1 Aqua Marina USER'S MANUAL 12V ELECTRIC BOAT MOTOR T-18 w w w.a qu am ar in a.c om...
- Page 2 AQUA MARINA® INSTRUCTIONS FOR 12 VOLT MOTOR ASSEMBLY Your 12V motor mounts directly to the boat. No special motor mount is necessary. Just feed the stainless steel pipe through the two black eyelets in the center on the back of the boat.
- Page 3 CALCULATING RUNNING TIME OF YOUR BATTERY You can calculate the running time of your motor yourself. Simply divide the AH given by the battery manufacturer by 7, which is ampere draw at maximum load at full speed of your 12V motor. Example: 7AH – means running time of about 60 minutes at low speed and 28 minutes at high speed.

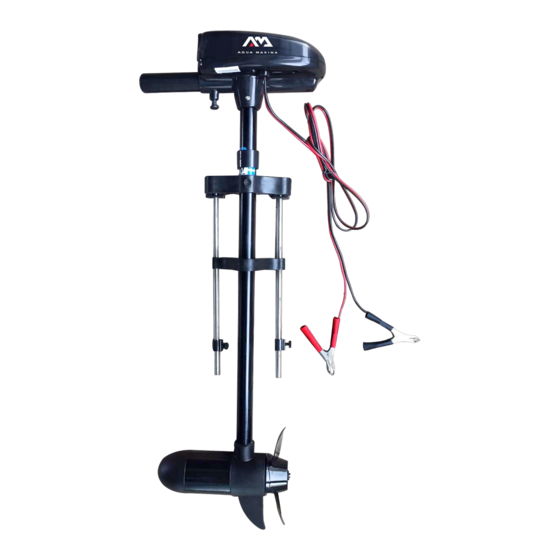

- Page 4 12 VOLT MOTOR Shallow Water Position Upper Housing Handle Large Tension Collar Stainless Steel Pipe Triangular Fitting Mounting Assembly Small Adjustable Tension Collar Shaft Technical Specifications Cable Weight of Motor: 4.4 lbs. Current initial Thrust Full load low 7.0 AMPS 7.9 lbs.
- Page 5 INSTRUCTION PRESS Handle Set-up Press the button beneath the upper housing and the handle would pop out. WARNING - Always disconnect battery when working on motor. - If propeller is stopped by foreign object, shut off motor immediately to prevent engine burnout which will occur within 5 minutes.
- Page 6 LIMITED WARRANTY ORPC warrants to the original purchaser that the purchaser's entire AQUA MARINA® trolling motor is free from defects in materials and workmanship appearing within one (1) years after the date of purchase. ORPC will, at its option, either repair or replace, free of charge, any parts found to be defective during the term of this warranty.
- Page 7 © Oriental Recreational Products (Shanghai) Co., Ltd ®™Trademarks used in some countries of the world under license to / ®™marques utilisées sous licence de / Marcas registradas utilizadas en algunos paises del mundo bajo licencia de / Das®™ Warenzeichen wird in einigen Ländern der Welt unter der Lizenz davon benützt / Oriental Recreational Products (Shanghai) Co., Ltd., No.1699, Daye Road, Shanghai, China 201402 •...
