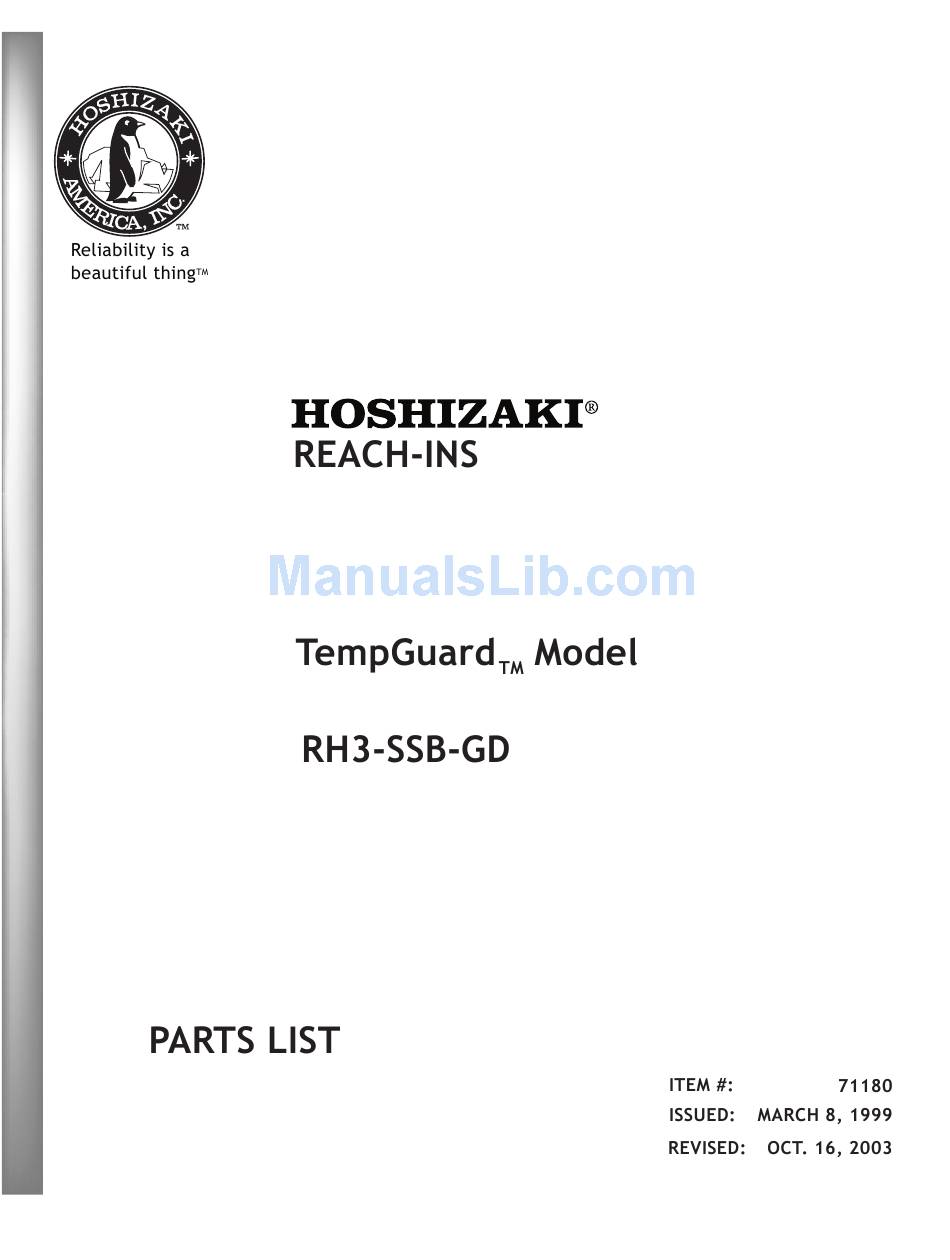

  • Page 2 RH3-SSB-GD SEPT., 2000 MAY, 2003...

  • Page 3: Material Abbreviations

    ALUMINUM Aluminum COPPER Copper PLASTIC Acrylonitritrile -butadiene - styrene Polyacetal EV A Ethylene vinyl acetate Polyamide = Nylon Polycarbonate Polyethylene Polyester PETP Polyethylene terephthalate = Tetlon Polypropylene Polystyrene PTFE Polytetrafluoroethylene = Teflon Polyurethane Polyvinyl chloride RUBBER Vinyl Nitrile EPDM EP rubber Nitrile butadiene rubber Natural rubber Neoprene...
  • Page 4 RH3-SSB-GD A. REACH-IN K-0, N-6 1 1a 6 6a...
  • Page 5 MODEL INDEX DESCRIPTION REFRIGERATION ASSEMBLY BOLT ASSEMBLY HEX BOLT WASHER CONTROL PANEL ASSEMBLY T2 SCREW BODY–FINAL LABEL LOCATION PANEL-FRONT HINGED ASSEMBLY T2 SCREW GUSSET-FRAME T2 SCREW PANEL-SIDE, TOP TRUSS HEAD SCREW TAPER COLLAR SCREW COUNTERSUNK BRACKET – HINGE FRAME-SIDE TOP TRUSS HEAD SCREW TOP UL COVER T2 SCREW...
  • Page 6 MODEL INDEX DESCRIPTION DISTRIBUTOR-AIR TOP DIVERTER-AIR T2 SCREW TAPER COLLAR SCREW COUNTERSUNK RH3-SSB-GD A. REACH-IN TITLE MATERIAL OR PART MODEL NUMBER NUMBER 1A0152-04 2A1965-01 4X8, SS, SS 7P32-0408 4H0171-01 5X20, SS 7C42-0520 REQUIRED NUMBER K-0 N-6...

  • Page 7: Refrigeration System

    RH3-SSB-GD B. REFRIGERATION SYSTEM (1/2) K-0, N-6 34a 34b...
  • Page 8 RH3-SSB-GD B. REFRIGERATION SYSTEM (2/2) 15 15a 16 17 18 19 25 26 Detail...
  • Page 9 RH3-SSB-GD B. REFRIGERATION SYSTEM (2/2) 15 15a 16 17 18 19 25 26 Detail...

  • Page 10: Refrigeration Assembly

    RH3-SSB-GD MODEL INDEX DESCRIPTION CONDENSER ASSEMBLY T2 SCREW EVAPORATOR ASSEMBLY T2 SCREW EVAPORATOR SHROUD ASSEMBLY TRUSS HEAD SCREW EVAPORATOR DRAIN PAN ASSEMBLY T2 SCREW CONTROL BOX ASSEMBLY TRUSS HEAD SCREW COMPRESSOR SPACER GROMMET BOLT EVAPORATOR CASE COVER COMPRESSOR – CONDENSER ASSEMBLY PROCESS TUBE TEV ASSEMBLY TUBE COND-DRIER...
  • Page 11 RH3-SSB-GD MODEL INDEX DESCRIPTION VINYL HOSE THERMOSTAT-CLEAN FILTER FILTER-CONDENSER DRIER DRIER STAND T2 SCREW DRIER-BRACKET T2 SCREW EXP VALVE COVER (A) COVER-EXP VALVE HOLDER-EXP VALVE 1/2 SEAL-REF TUBING HOSE CLAMP ELBOW ELBOW WIRE TIE (TWIST) FOAM TAPE DRAW LATCH T2 SCREW TRUSS HEAD SCREW SUCTION LINE ASSEMBLY PRESSURE SWITCH...

  • Page 12: Control Panel Assembly

    RH3-SSB-GD C. CONTROL PANEL ASSEMBLY 8 8a K-0, N-6...
  • Page 13 RH3-SSB-GD MODEL INDEX DESCRIPTION PANEL-CONTROL (PAINTED GD) LABEL-DISPLAY MOUNT-DISPLAY BOARD BOARD-DISPLAY NYLON SCREW PALNUT BOARD COVER T2 SCREW CONTROL PANEL COVER T2 SCREW RIBBON CABLE PLUG-HOLE LOCKING HOLE PLUG LOCKING HOLE PLUG SWITCH-ROCKER STRAIN RELIEF WASHER GROMMET STRIP GROMMET STRIP GROMMET STRIP C.
  • Page 14 RH3-SSB-GD D. BODY-FINAL K-0, N-6 M M1...
  • Page 15 MODEL INDEX DESCRIPTION BODY-PREFINAL TRUSS HEAD SCREW MULLION-VERTICAL GLASSDOOR (RIGHT) GLASSDOOR (LEFT) CANOE CLIP BRACKET CORNER COVER-CORNER WIRE CLAMP TRUSS HEAD SCREW HINGE-TOP GLASSDOOR (RIGHT) HINGE-BOTTOM GLASSDOOR (RIGHT) HINGE-TOP GLASSDOOR (LEFT) HINGE-BOTTOM GLASSDOOR (LEFT) PIN, TORQUE RH3-SSB-GD D. BODY-FINAL TITLE MATERIAL OR PART NUMBER...

  • Page 16: Label Location

    RH3-SSB-GD E. LABEL LOCATION K-0, N-6 DETAIL A...
  • Page 17 RH3-SSB-GD MODEL INDEX DESCRIPTION WIRING LABEL LABEL-R404A LABEL-PENGUIN-HA (L) LABEL-ON/OFF EMBLEM-HOSHIZAKI LABEL-DISPLAY INFO LABEL-DOOR HEATER SWITCH CAUTION LABEL LABEL-GLASS DOOR HEATER SWITCH E. LABEL LOCATION TITLE MATERIAL OR PART MODEL NUMBER NUMBER PVC FILM 2A1787-01 4A0960-01 4A0526-02 PVC FILM 4A0522-01...

  • Page 18: Panel - Front Hinged Assembly

    RH3-SSB-GD F. PANEL - FRONT HINGED ASSEMBLY K-0, N-6...
  • Page 19 RH3-SSB-GD MODEL INDEX DESCRIPTION HINGE-FRONT PANEL (L) HINGE-FRONT PANEL (R) CHANNEL-HINGE TRUSS HEAD SCREW PANEL-FRONT F. PANEL-FRONT HINGED ASSEMBLY TITLE MATERIAL OR PART MODEL NUMBER NUMBER 4A2153-01 4A2154-01 4A2170-01 7C32-0508 1A0286-01 1A0624-03 REQUIRED NUMBER...

  • Page 20: Condenser Assembly

    RH3-SSB-GD 6 6a 8 G. CONDENSER ASSEMBLY 2 2a 7 7a...
  • Page 21 RH3-SSB-GD G. CONDENSER ASSEMBLY 6 6a 8 2 2a 7 7a...
  • Page 22 RH3-SSB-GD MODEL INDEX DESCRIPTION CONDENSER SHROUD-CONDENSER T2 SCREW FAN MOTOR SELF LOCKING NUT FAN BLADE (PULLER) BRACKET-CONDENSER FAN MOTOR TRUSS HEAD SCREW RETAINER-FILTER T2 SCREW INSERT-THREADED CABLE TIE BASE-CONDENSER GROMMET STRIP SWITCH-PRESSURE BRACKET-PRESS SWITCH T2 SCREW BRACKET-PRESS SWITCH (B) T2 SCREW GROMMET STRIP GROMMET STRIP CAPACITOR...

  • Page 23: Evaporator Assembly

    RH3-SSB-GD H. EVAPORATOR ASSEMBLY K-0, N-6...
  • Page 24 RH3-SSB-GD MODEL INDEX DESCRIPTION BRACKET-EVAP SHROUD (R) T2 SCREW BRACKET-EVAP SHROUD (L) T2 SCREW EVAPORATOR THERMISTOR-CLIP THERMISTOR –DEFROST DISTRIBUTOR DISTRIBUTOR H. EVAPORATOR ASSEMBLY TITLE MATERIAL OR PART MODEL NUMBER NUMBER 4A0545-01 4X8, SS, SS 7P32-0408 4A0548-01 4X8, SS, SS 7P32-0408 3EZ0603KT 2A1508-01 320418-01...

  • Page 25: Evaporator Shroud Assembly

    RH3-SSB-GD RH3-SSB-GD MODEL INDEX DESCRIPTION BLADE-FAN(PUSHER) EVAPORATOR FAN ASSEMBLY T2 SCREW LOCK WASHER MOTOR – EVAP FAN ORIFICE – EVAP FAN SHROUD-EVAP TRUSS HEAD SCREW J. EVAPORATOR SHROUD ASSEMBLY J. EVAPORATOR SHROUD ASSEMBLY TITLE MATERIAL OR MODEL NUMBER AIR DRIVE INC. AD9CCW30UBA 4X8, SS, SS 4X10, SS...
  • Page 26 RH3-SSB-GD K. EVAPORATOR DRAIN PAN ASSEMBLY K-0, N-6 5 5a...
  • Page 27 RH3-SSB-GD MODEL INDEX DESCRIPTION PAN EVAPORATOR DRAIN FITTING-DRAIN OVERFLOW RUBBER GASKET GASKET-COND COIL STRAP-CONDENSATE COIL TRUSS HEAD SCREW K. EVAPORATOR DRAIN PAN ASSEMBLY TITLE MATERIAL OR PART MODEL NUMBER NUMBER 2A0200-02 NYLON 4A2182-01 413854-03 R-471E SBE-41 4A0455-01 3A0413-01 3A0413-03 5X10, SS 7C32-0510 REQUIRED NUMBER...

  • Page 28: Control Box Assembly

    RH3-SSB-GD 4 4a L. CONTROL BOX ASSEMBLY 5 5a 19 20 27 28 23 24 21 22 25 26 K-0, N-6...
  • Page 29 RH3-SSB-GD MODEL INDEX DESCRIPTION BOARD-CONTROL BOARD SUPPORT BASE-CONTROL BOX COVER-CONTROL BOX T2 SCREW SWITCH-BRACKET T2 SCREW BUSHING BUSHING BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR PLUG HOUSING (9 PIN) RECEPTACLE HOUSING (9 PIN) PLUG HOUSING (6 PIN) RECEPTACLE HOUSING (6 PIN) PLUG HOUSING RECEPTACLE HOUSING SWITCH-TOGGLE...
  • Page 30 RH3-SSB-GD MODEL INDEX DESCRIPTION RECEPTACLE HOUSING (2 PIN) PLUG HOUSING (2 PIN) TERMINAL BLOCK TAPPING SCREW CAPACITOR-START CAPACITOR-RUN RELAY-START T2 SCREW MOUNT BRACKET T2 SCREW GROUNDING SCREW(M5) STRAP T2 SCREW BOARD CONNECTOR L. CONTROL BOX ASSEMBLY TITLE MATERIAL OR PART MODEL NUMBER NUMBER...
  • Page 31 RH3-SSB-GD M. BODY-PREFINAL K-0, N-6 6a 6 3 3a 4 7 7a...
  • Page 32 MODEL INDEX DESCRIPTION CABINET-PREFOAM BUSHING PILASTER TRUSS HEAD SCREW INSERT-THREADED (M5) VINYL HOSE DIVIDER-AIR T2 SCREW DISTRIBUTOR-AIR (BOTTOM) T2 SCREW GASKET-PVC GASKET-PVC GASKET-PVC RH3-SSB-GD M. BODY-PREFINAL TITLE MATERIAL OR MODEL NUMBER NUMBER 2A1018G02 OCB-875 428394-04 3A0145-01 5X10, SS 7C32-0510 4A0407-01 L=1700 7730I3812 2A1101-01...
  • Page 33 RH3-SSB-GD FOR NON-INTERCHANGEABLE PARTS CHANGE NOTICE AT AUXILIARY CODE N-6, SEE NOTES ON PAGE 34. MODEL INDEX DESCRIPTION MULLION-PREFOAM PILASTER-MULLION TRUSS HEAD SCREW INSERT-THREADED INSERT-THREADED (WIDE) WASHER BULB-LIGHT SHIELD-LIGHT CHEESE HEAD SCREW LAMPHOLDER N. MULLION-VERTICAL RH3-SSB-GD N. MULLION VERTICAL TITLE MATERIAL OR MODEL NUMBER...
  • Page 34 AT AUXILIARY CODE N-6, THE SANTOPRENE LIGHT SOCKET WAS CHANGED TO A PORCELAIN LAMPHOLDER. THIS CHANGE IS NON-INTERCHANGEABLE. IF THE UNIT HAS AN AUXILIARY CODE OF N-6 OR LATER, SIMPLY ORDER THE PART THAT NEEDS TO BE REPLACED: IF THE UNIT HAS AN AUXILIARY CODE EARLIER THAN THAN N-6, AND THE LIGHT SOCKET IS NOT OPERATING, IT IS RECOMMENDED TO CHANGE THE ENTIRE ASSEMBLY TO HS-3554: NOTE: PARTS 5 AND 6 ARE NOT INCLUDED IN HS-3554;...

  • Page 35: Literature & Packaging

    RH3-SSB-GD MODEL INDEX DESCRIPTION INSTRUCTION MANUAL PACKAGING – AVAILABLE ONLY ON MODELS CURRENTLY IN PRODUCTION PALLET HEX HEAD BOLT FLAT WASHER STOP – DOOR CABLE – TIE SHELF CENTER (3 PACK) SHELF (3 PACK) LEG (4 PACK) LEG (2 PACK) PAD –...
