Summary of Contents for Stewart Golf Q REMOTE

  • Page 1 OWNER’S MANUAL...

  • Page 2: Important Information

    GOLF BAG TYPE & WEIGHT visit stewartgolf.com/technical. The Q Remote has been optimised for use with a cart or tour style bag weighing 14kg (31lbs). Weigh your golf bag and ensure it is between 13kg (28lbs) and 15kg (33lbs).

  • Page 3: Table Of Contents

    14kg or 31lbs. Using it on grass is important: speed and steering are both affected by Battery Care the surface the Q Remote is on, and it’s obviously designed to be used on grass. You should steer the machine manually from the...

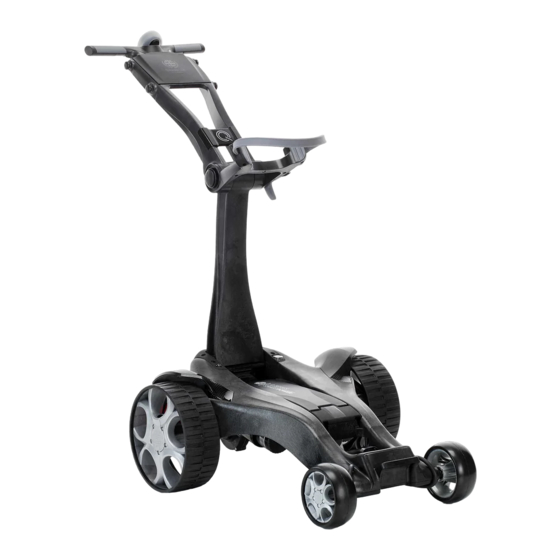

  • Page 4 Q REMOTE ANATOMY The Q Remote is built from a unique microcellular composite structure and precision injection mouldings. Get to know its main features here as we’ll be referring to them in this manual: Scorecard holder Wheel arches Handle 14. On/Off switch...

  • Page 5: Unfolding

    Note: The Q Remote has been optimised for use with a cart or tour style bag weighing 14kg (31lbs). Please refer to page 1 for more information.
  • Page 6 WARNING: Always ensure that your Q Remote is turned OFF at the switch when not in use. Leaving it ON could drain the SmartPower battery totally and risk irrecoverably damaging it. This will ensure that the trolley is not accidentally activated in transit.

  • Page 7: Smartpower Battery

    Your Q Remote has a purpose designed SmartPower battery that slots seamlessly into the chassis, connecting automatically. Removal: Press the release button at the end of the case, just behind the Stewart Golf GB crest. Press the button in and simultaneously pivot the battery around the front edge, pressing the battery backwards if necessary.
  • Page 8 CHARGING THE SMARTPOWER BATTERY Always start a charging cycle by following these steps: 1. Connect the charger to the battery. 2. Connect the charger to the wall. 3. Switch the wall socket on. The charger has an indicator light on it: RED: Indicates the battery is charging.
  • Page 9 CARING FOR YOUR BATTERY LONG TERM STORAGE If you are not going to use the Q Remote for • DO follow these instructions more than one month, the battery should exactly. be fully charged after its last game then • DO only use the charger disconnected from the charger and stored in supplied to charge the battery.

  • Page 10: Handset Guide

    HANDSET GUIDE Your Q Remote is supplied with a rechargeable Bluetooth handset. The handset is supplied paired to your machine and cannot be used with any other. 1. Forward/speed up. 2. Indicator light. 3. Left & right turn. 4. STOP. Use as primary stopping function.

  • Page 11: Handset Charging & Care

    LONG TERM STORAGE If you are not going to use your Q Remote for more than one month, the handset should be put through a charge cycle at least once every month. This will avoid the handset battery being completely discharged.

  • Page 12: Manual Operation

    & slow down buttons, or program the cruise control speeds to your walking pace (see P16). BEST PRACTICE: When in tight areas you should physically keep control of the Q Remote by steering from the handle. The dual handle allows you to steer with either hand. Either clip the handset to the handle, or hold it with your other hand.
  • Page 14 To steer the machine, press and release either the left or right buttons. When in motion this will change the direction slightly and continue moving. A prolonged press will tighten the turn. If you press either button with the Q Remote stationary, the machine will turn on the spot.
  • Page 15 IMPORTANT INFORMATION FUSE: The 40A fuse fitted to the Q Remote is designed to protect the electronics from accidental damage in normal use. However, extreme strain caused by failure to use the machine as advised can blow this fuse: in such cases, replacement of the fuse will NOT be covered by warranty.

  • Page 16: Other Features

    • Dual handset cradle. CRUISE CONTROL SPEEDS Your Q Remote has three Cruise Control speeds, on buttons 1, 2 and 3. You can program these for your own walking speeds as follows: 1. Use the speed up and slow down buttons to find your desired walking speed.

  • Page 17: Faq

    Is the Q Remote OK to use in the rain? Yes. The Q Remote is designed for use in all conditions appropriate for golf. The design of the Q Remote protects the major components from rain, so water ingress cannot occur during normal use.

  • Page 18: Warranty Information

    (2) years from delivery. If you think there may be a problem with your Q Remote, the first thing to check is the troubleshooting guide opposite. If this does not solve your issue, please contact us or your local distributor for further advice.
