TechNexion WB-EDM-G-IMX8M-PLUS Quick Install Manual

INNOVATORS OF TECHNOLOGY
1. Identifying the Parts

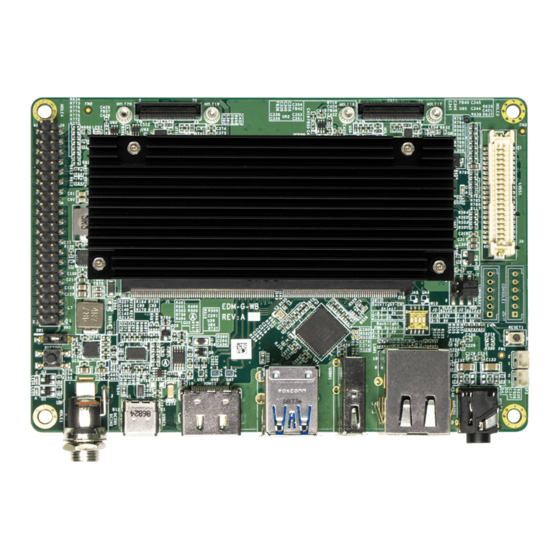

Front View
40-pin Expansion Header
Boot Mode Setting Switch
USB Serial Download Push Button
DC Power Connector
USB Type-C Connector
Rear View
M.2 Slot
Micro SIM Card Slot
M.2 Expansion Card
Setting DIP Switch
LVDS I 2 C Voltage DIP Switch
Camera Module Voltage DIP Switch (up)
and I 2 S Signal (down) for Camera 1
MIPI CSI
Connector 2
HDMI Connector
USB 3.0 Type-A Connectors (x2)
NFC Connector
Quick Install Guide
MIPI CSI LVDS Voltage Selection Jump
Connector 1
RJ-45 Connector
USB 2.0 Type-A Connector
2
I C Touch Slot
Camera Module Voltage DIP Switch (up)
and I 2 S Signal (down) for Camera 2
WB-EDM-G-IMX8M-PLUS
LVDS Connector
Console 2
Console 1
LVDS Backlight Signal
and Voltage DIP Switch
Reset Button
R-Speaker Header (up)
L-Speaker Header (down)
Audio Out Jack
Micro SD Card Slot
