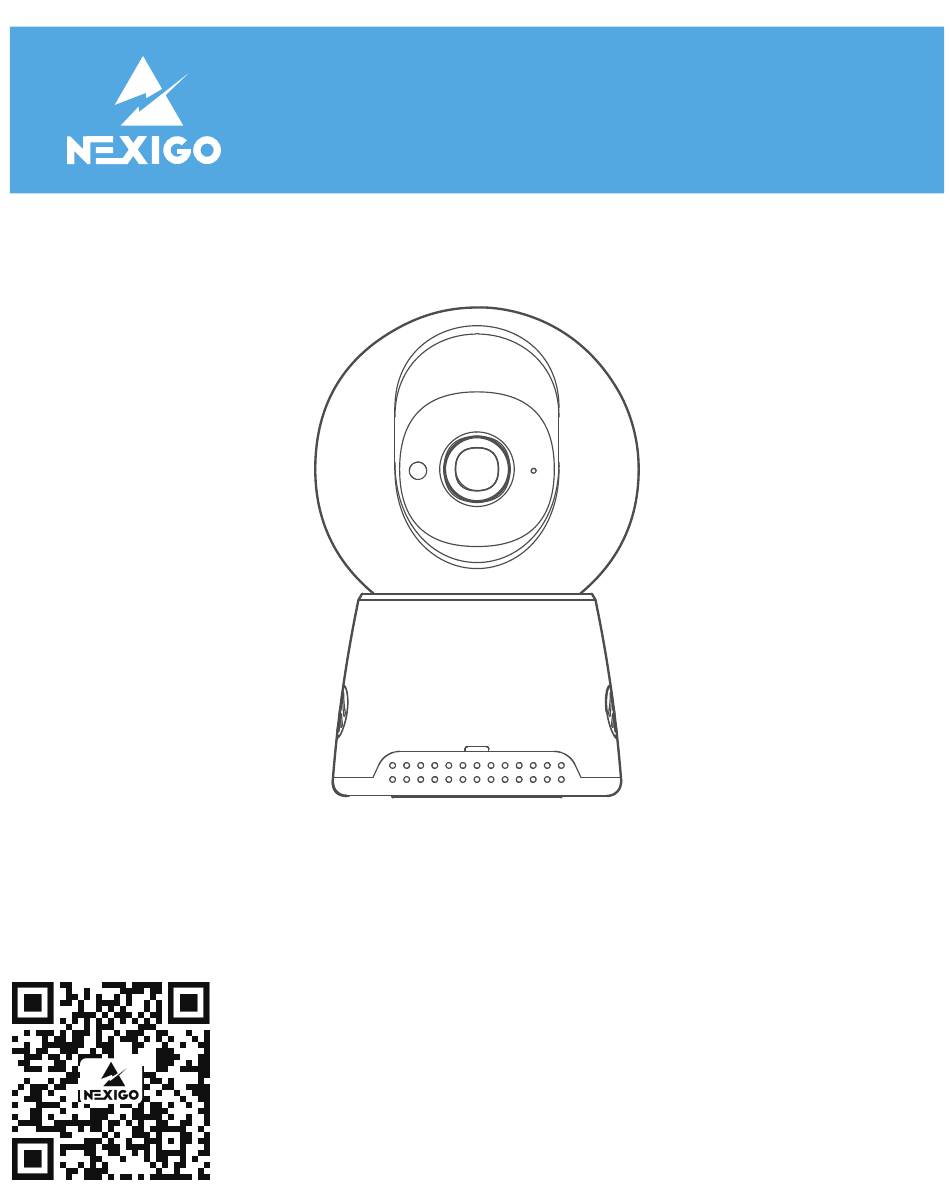

- Page 1 User Manual NexiGo ADD-ON BABY CAMERA UNIT Register to get an EXTRA ONE year warranty. Only valid if registering within 14 days of product delivery. nexigo.com/warranty...
- Page 2 Welcome to the NexiGo Family! Thank you for choosing the NexiGo B10 Add-On Baby Camera Unit! You are now part of an exclusive club: the NexiGo family! It's our job to make sure you enjoy your membership. If you have any problems please contact us at cs@nexigo.com at any �me for further assistance.
- Page 3 The Nexigo B10 is here to help your sleep-addled brain and to make sure you always know exactly what is going on in your baby's room.
-
Page 4: Camera Diagram
Camera Diagram: Wide-Angle Lens Micro USB Port Microphone Pairing Bu�on Speaker Temperature Sensor Antenna Specifica�ons: NexiGo Add-On Baby Camera Unit Product Name Model - 3 -... - Page 5 300~500� - Inside a standard Transmission Range home; 1000� - In an open area Power Input AC 5V / 1A Na�ve Resolu�on 1280 x 720 Working Temperature -10°C ~ +50°C Storage Temperature -20°C ~ +60°C Speaker Se�ng up the Camera: 1.
- Page 6 Connec�on Instruc�ons: 1. Place the Camera within the opera�ng range of the Monitor you’ve already had. 2. Press and hold the Power Bu�on on the right side of the Monitor for two seconds to turn it on. Power Bu�on MENU 3.
- Page 7 4. Select Camera Pairing from the list below. Choose the Camera number you wish to add, then press OK Bu�on to confirm. Select Add to begin pairing. 5. Press and hold the Pairing Bu�on on the rear of the Camera un�l a "beep"...
- Page 8 6. A "Camera added successfully" no�ce will be displayed on the screen. The connec�on is now ac�ve. 7. You may repeat the process above for up to addi�onal Cameras. Disconnec�on Instruc�ons: 1. To disconnect a camera, navigate to: Menu > More Se�ngs > Camera Se�ngs.
- Page 9 2. If a Camera becomes disconnected unexpectedly for any reason, an alarm tone will play and the image below (or a similar one iden�fying the specific camera that has been disconnected) will appear on the Monitor aler�ng you to which Camera has lost its connec�on. Press any bu�on to stop the alarm.
- Page 10 When a suitable loca�on has been found that meets these criteria you may then begin the installa�on process. 1) Posi�on the Camera Wall Bracket where you want it and locate the screw holes in the mount. Mark each hole carefully with a pencil / pen to ensure that the tapping process is accurate.
- Page 11 a. For Corner Moun�ng b. For Flat Walls Note: If moun�ng on a flat wall please make sure to mount this unit with the notch in the back facing upwards as shown below. DO NOT mount this unit with the notch facing any direc�on other than up. 5) Align the Slide Locks on the Camera Wall Bracket with the holes on the bo�om of the Camera, then push the Camera body forward un�l it gets stuck to secure it in place.
- Page 12 6) Op�mize your viewing angle by rota�ng the Camera manually, or u�lize the remote pan and �lt func�ons with the Naviga�on Bu�on on your Monitor. MENU Op�on 2 - Use 3M Double-Sided Adhesive Tape to secure the Camera Wall Bracket Consider the following factors when selec�ng a loca�on to mount the camera: ●...
- Page 13 2) Posi�on the Camera Wall Bracket at the desired loca�on and press firmly towards the wall. Ensure that both pieces of the tape are securely touching the wall. Push 3) Align the Slide Locks on the Camera Wall Bracket with the holes on the bo�om of the Camera, then rotate the Camera body to secure it in place.
- Page 14 4) Op�mize your viewing angle by rota�ng the Camera manually, or u�lize the remote pan and �lt func�ons with the Naviga�on Bu�on on your Monitor. MENU - 13 -...
-
Page 15: Fcc Requirement
Notes: ● Only use the charger provided by the manufacturer. Unauthorized chargers may cause damage to the products and void any warranty. ● Strangula�on Hazard: Cords may be a strangula�on hazard and should be properly stored out of reach of children. ●... - Page 16 This equipment complies with FCC radia�on exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body. Model: B10 facebook.com/nexigo1 FCC ID: 2AWDN-B10 Get in touch with FREE online services.
