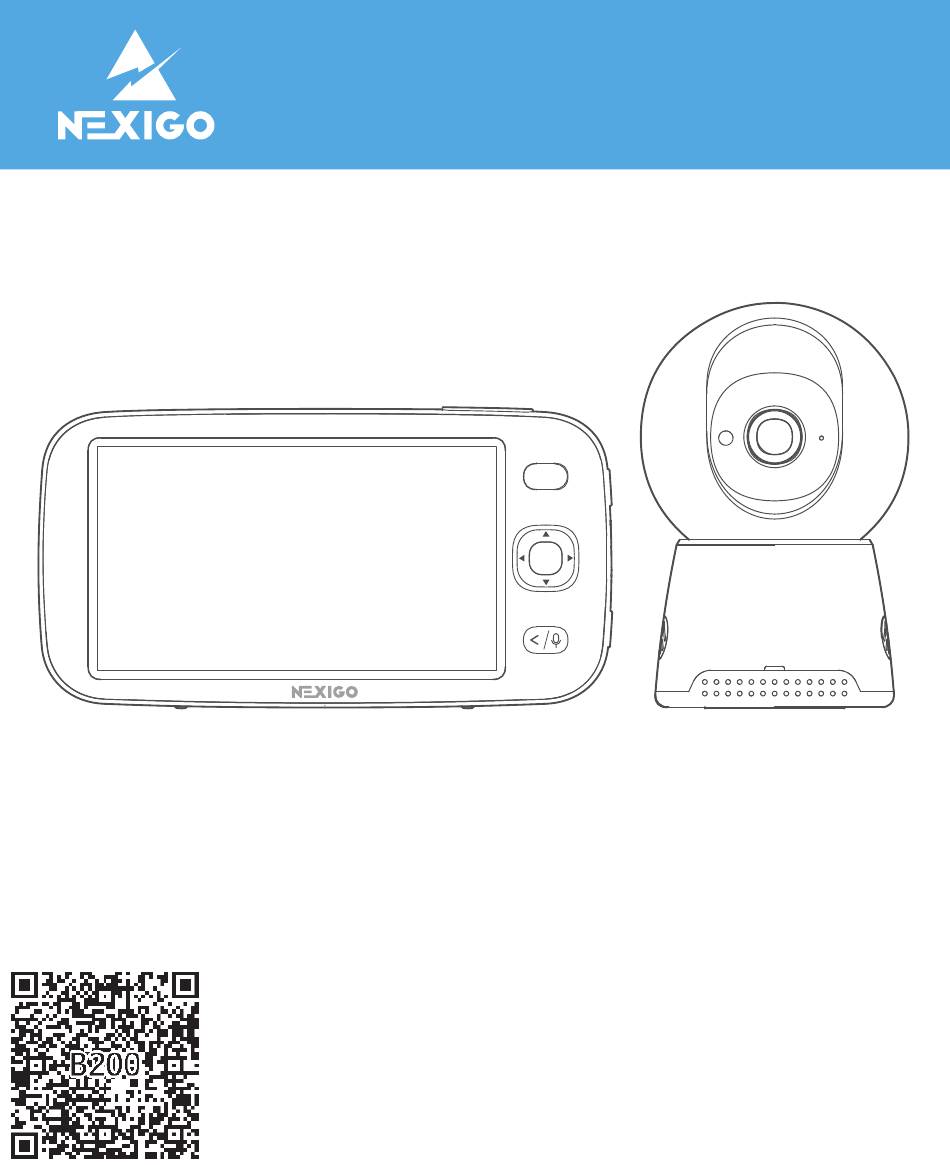

- Page 1 User Manual NexiGo Video Baby Monitor MENU B200 Scan the QR code or visit our link to download the latest manual here: www.nexigo.com...
- Page 2 14 days of the delivery date to extend your warranty coverage to TWO Years! From all of us here at NexiGo, we want to welcome you again to the family. We thank you deeply for your trust and for your business. We know you'll love it here.
- Page 3 The B200 is sound ac�vated so the moment your baby starts crying the monitor will kick on and let you know and with included sound alerts it can let you know even if you stepped out of your room for a minute.
-
Page 4: What's In The Box
What’s in the Box? 1 x Video Baby Monitor 1 x Video Baby Camera 1 x Camera Wall Bracket 1 x Moun�ng Screws Pack 1 x 3M Double-Sided Adhesive Tape 1 x Monitor Power Adapter (5V / 2A) 1 x Camera Power Adapter (5V / 1A) 1 x Monitor Micro-USB Power Cable (3.28�) 1 x Camera Micro-USB Power Cable (9.84�) 1 x Instruc�on Manual... -
Page 5: Camera Diagram
Power Bu�on Menu Bu�on Volume Down Naviga�on Bu�ons OK Bu�on Volume Up Support Stand Return / Talk Bu�on Speaker Zoom Bu�on Micro USB Port Antenna Reset Bu�on LED Indicator Camera Diagram: Wide-Angle Lens Micro USB Port Microphone Pairing Bu�on Speaker Temperature Sensor Antenna - 4 -... - Page 6 Specifica�ons: NexiGo Video Baby Monitor Product Name Model B200 300~500� - Inside a standard Transmission Range home; 1000� - In an open area Imaging Technology Sensor Size 5" Na�ve Resolu�on 1280 x 720 Ba�ery Capacity 4800mAh Charging Time Fully charged in 3 hours...
-
Page 7: On-Screen Menu Icons
Field of View D=108.19° / H=91.69° / V=50.29° Power Input AC 5V / 1A Na�ve Resolu�on 1280 x 720 Camera Working Temperature -10°C ~ +50°C Storage Temperature -20°C ~ +60°C Speaker On-Screen Menu Icons: Icon Icon Descrip�on Current ba�ery power Ba�ery low Charging Wireless signal strength... - Page 8 A subscript iden�fying the current camera appears (When two or more cameras are connected) When Mul�-Camera Cycling Mode is ac�vated in display mode, a subscript referring to the current camera as well as a cycling icon will appear Alarm is enabled No Camera is connected Night vision mode is enabled The temperature of the room in which the Camera...
- Page 9 Se�ng up the Camera and Monitor: Charge the Monitor 1) Plug one end of the Monitor Micro-USB Power Cable into the Baby Monitor, and then insert the other end to the Monitor Power Adapter. 2) Plug the adapter into a power outlet. The LED indicator on the right side of the Baby Monitor will display a red light indica�ng that it is charging.
- Page 10 Connec�on Instruc�ons: 1. Place the Monitor within the opera�ng range of the Camera. 2. Press and hold the Power Bu�on on the right side of the Monitor for two seconds to turn it on. Power Bu�on MENU The first �me you turn on the Monitor it will ask you to set up the Language and Time.
- Page 11 4. Select Camera Pairing from the list below. Choose the Camera number you wish to add, then press OK Bu�on to confirm. Select Add to begin pairing. 5. Press and hold the Pairing Bu�on on the rear of the Camera un�l a "beep"...
- Page 12 7. You may repeat this process for up to three addi�onal Cameras by naviga�ng to: Menu > Camera Se�ngs > Camera Pairing. Disconnec�on Instruc�ons: 1. To disconnect a camera, navigate to: Menu > More Se�ngs > Camera Se�ngs. Select the Camera you wish to disconnect, then select Delete to disconnect the camera.
- Page 13 2. If a Camera becomes disconnected unexpectedly for any reason, an alarm tone will play and the image below (or a similar one iden�fying the specific camera that has been disconnected) will appear on the Monitor aler�ng you to which Camera has lost its connec�on. Press any bu�on to stop the alarm.
- Page 14 become detached and fall. ● The camera must have an unobstructed view of the crib or bed from where it is mounted. ● The camera must have a nearby power outlet that can be reached without using an extension cord. When a suitable loca�on has been found that meets these criteria you may then begin the installa�on process.
- Page 15 a. For Corner Moun�ng b. For Flat Walls Note: If moun�ng on a flat wall please make sure to mount this unit with the notch in the back facing upwards as shown below. DO NOT mount this unit with the notch facing any direc�on other than up. 5) Align the Slide Locks on the Camera Wall Bracket with the holes on the bo�om of the Camera, then push the Camera body forward un�l it gets stuck to secure it in place.
- Page 16 Op�on 2 - Use 3M Double-Sided Adhesive Tape to secure the Camera Wall Bracket Consider the following factors when selec�ng a loca�on to mount the camera: ● The mount can only be posi�oned in a corner. ● The camera must have an unobstructed view of the crib or bed from where it is mounted.
- Page 17 3) Align the Slide Locks on the Camera Wall Bracket with the holes on the bo�om of the Camera, then rotate the Camera body to secure it in place. 4) Op�mize your viewing angle by rota�ng the Camera manually, or u�lize the remote pan and �lt func�ons with the Naviga�on Bu�on on your Monitor.
- Page 18 appear on the Monitor to alert the user. Zoom and Pan Image ● You can zoom in 1.5X or 2X while viewing images on the Monitor by pressing the Zoom Bu�on on the right side of the Monitor. ● Press and hold the to �lt the image upward or downward.
- Page 19 ● Sound Alert Mode: If the camera picks up a noise in the room that exceeds the threshold level that you set, the system will be woken up and the monitor will turn back on automa�cally. ● Alert Threshold: Adjust the sound detec�on sensi�vity level of the Camera unit.
- Page 20 Temperature Alarm Value that you set. ●Alert Dura�on: Select a dura�on for the alert when one of the above triggers occurs. The op�ons available are 10 / 20 / 30 / 60 seconds. ●Alert Volume: Adjust the volume of the alert when one of the above triggers occurs.
- Page 21 Alarms Press the Menu Bu�on on the Monitor to enter the menu interface. Under the Alarms tab you will find the op�ons listed below: ● Feeding: Set an alert for common feeding �mes.The op�ons available are: 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / or 4 hours, or just at a specific �me.
- Page 22 1. To view all cameras simultaneously there are four different modes. Those are: Full Screen / Dual-Split Screen / Triple-Split Screen / Quad-Split Screen (as shown below). 2. Use Mul�-Camera Cycling Mode to move between each camera at a preset interval. More Se�ngs Press the Menu Bu�on on the Monitor to enter the menu interface.
- Page 23 ● Night Vision Mode: This enables the Camera to let you see your baby more clearly at night or in a dark room by increasing the camera’s sensi�vity to light. When this mode is enabled the icon will appear on the screen. Night Vision is effec�ve within a viewing range of up to 5 meters (16.4 �).
-
Page 24: Fcc Requirement
● Contact Us: Email us at cs@nexigo.com for more informa�on. Notes: ● Only use the charger provided by the manufacturer. Unauthorized chargers may cause damage to the products and void any warranty. ● Strangula�on Hazard: Cords may be a strangula�on hazard and should be properly stored out of reach of children. - Page 25 interference that may cause undesired opera�on. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec�on against harmful interference in a residen�al installa�on.
- Page 26 Register to get an EXTRA ONE year warranty. Only valid if registering within 14 days of product delivery. nexigo.com/warranty Model: B200 FCC ID: 2AWDN-B200 Get in touch with FREE online services facebook.com/nexigo1...
