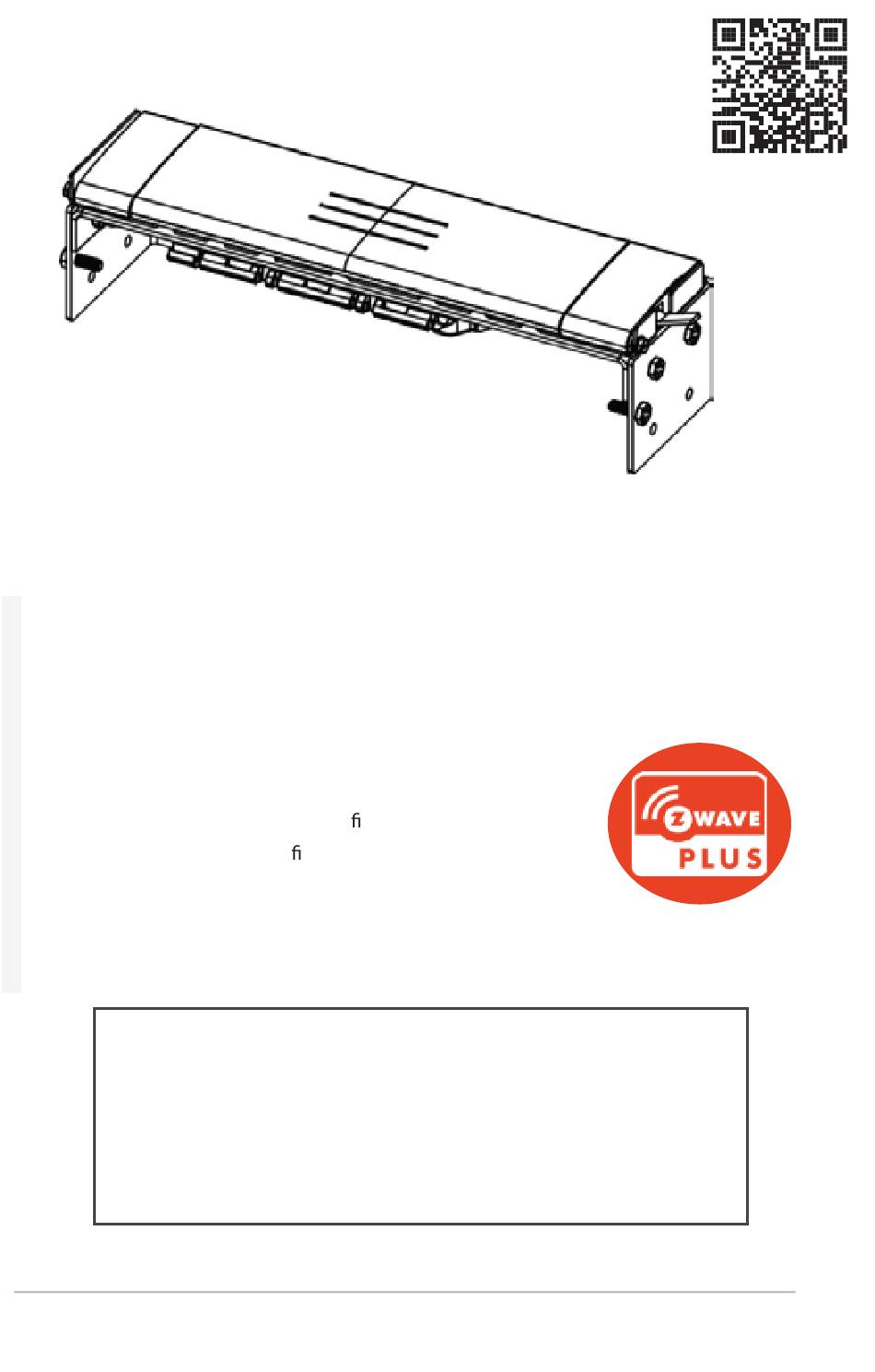

Installation Manual
**Notice - the included install template in the box should be
used as a guide. Once holes are marked, place the unit
over the guide holes to ensure proper alignment prior to
drilling any door or frame**
IQLOCKDOWN
High-strength, Z-WAVE enabled smart lock for
Commercial applications.
1
Safety, Warnings, Regulations
3
Warranty
6
Installing Your IQ Lockdown
7
Z-WAVE Operation
11
LED and Sounds
12
Outward-swinging door con guration
13
In-swinging door con guration
14
Hardware Accessory Installation
16
Troubleshooting
17
Important Safeguards
Patent Protected: European Patent Number: 3,194,692; Issued: China; U.S.A. Patent: 10,669,758 / 10,851,568
Johnson Controls - The Smarter, Stronger Way to STOP An Active Threat
™
PLACE DSK HERE
For the most current and
comprehensive manual
please visit the QR code.
V 1.9
Advertisement
Table of Contents
Related Manuals for Johnson Controls IQLOCKDOWN
Summary of Contents for Johnson Controls IQLOCKDOWN
- Page 1 In-swinging door con guration Hardware Accessory Installation Troubleshooting Important Safeguards PLACE DSK HERE Patent Protected: European Patent Number: 3,194,692; Issued: China; U.S.A. Patent: 10,669,758 / 10,851,568 Johnson Controls - The Smarter, Stronger Way to STOP An Active Threat V 1.9...
-
Page 2: Important Safety Instructions
1 INSTALLATION MANUAL Important Safety Instructions Explanation of Attention Words and Symbols used in this guide This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING indicates a hazardous situation which, if not avoided, could result in death WARNING or serious injury. - Page 3 WARNING: Changes or modi cations which are not expressly approved by Johnson Controls could void the user’s authority to operate the equipment. AVERTISSEMENT: Les changements ou modi cations qui ne sont pas approuvés par HavenLock Inc. and Johnson Controls pourrait annuler l'autorité de l'utilisateur de faire fonctionner l'équipement...
-
Page 4: Warranty Information
3 INSTALLATION MANUAL WARRANTY INFORMATION For the most updated manual, warranty information, terms, and conditions please visit the QR Code below. - Page 5 4 INSTALLATION MANUAL 29010962R002...
- Page 6 INSTALLATION MANUAL 5 BATTERY INFORMATION & DISPOSAL Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electrical equipment (EEE).
- Page 7 6 INSTALLATION MANUAL INSTALLING YOUR IQ Lockdown Included Items: Control Panel (inside of shell enclosure under shelf) Status Indicator Wire Harness Power Adapter 120v AC USB Adapter for use with included charging cable Charging Port Charging Cable USB Charging cable used to charge your IQ Lockdown Pairing Button Reset Button (use pin)
-
Page 8: Button Functions
7 INSTALLATION MANUAL Z-WAVE OPERATION IQ Lockdown with Z-Wave Plus This product can be operated in any Z-WAVE network with other Z-WAVE certi ed devices from other manufacturers. All mains operated nodes within network will act as repeaters regardless of vendor to increase reliability of the network. Button Functions There are two buttons on the IQ Lockdown device. - Page 9 8 INSTALLATION MANUAL Z-WAVE Lock Operation 1. To Lock: Sending command class = COMMAND_CLASS_DOOR_LOCK, command = DOOR_LOCK_OPERATION_SET, mode = 0xFF (DOOR_SECURED) or BASIC_SET value 0xFF will raise the gate. Notification Type Access Control, Event 0x03 (RF lock operation) is sent to the Lifeline and then one second later, a Door Lock Operation Report is sent to the Lifeline.
- Page 10 9 INSTALLATION MANUAL Command Class List (Security: None) Name Version COMMAND_CLASS_ZWAVEPLUS_INFO COMMAND_CLASS_TRANSPORT_SERVICE COMMAND_CLASS_SECURITY COMMAND_CLASS_SECURITY_2 COMMAND_CLASS_SUPERVISION Command Class List (Security: S0 or Access Control) Name Version COMMAND_CLASS_VERSION COMMAND_CLASS_MANUFACTURER_SPECIFIC COMMAND_CLASS_DEVICE_RESET_LOCALLY COMMAND_CLASS_INDICATOR COMMAND_CLASS_POWERLEVEL COMMAND_CLASS_BATTERY COMMAND_CLASS_NOTIFICATION COMMAND_CLASS_DOOR_LOCK COMMAND_CLASS_CONFIGURATION COMMAND_CLASS_ASSOCIATION COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION COMMAND_CLASS_ASSOCIATION_GRP_INFO COMMAND_CLASS_FIRMWARE_UPDATE_MD...
- Page 11 10 IQ Lockdown Noti cation Command Class All notifications are sent unsolicited. Type (Value) Notification Name Value Access Control (0x06) Manual lock operation 0x01 Manual unlock operation 0x02 RF lock operation 0x03 RF unlock operation 0x04 Lock jammed 0x0B Home Security (0x07) Impact detected 0x0A Power Management (0x08)
-
Page 12: Led And Sounds
INSTALLATION MANUAL 11 Impact Detection The impact detection function uses an accelerometer that is tuned using parameters 3 and 4 set in the Configuration Command Class. When the gate is up and transient threshold (parameter 4) is exceeded, a Home Security (0x07) Notification, event type Impact Detected (0x0A) is sent to the Lifeline. - Page 13 12 INSTALLATION MANUAL OUTWARD-SWINGING DOOR CONFIGURATION *may be sold separately Hollow Door Frame Hardware Kit Non-Concrete Filled Install Instructions To install the bracket to a non-concrete lled steel door frame we suggest using ¼” heavy duty toggle anchors. Kit includes: Tools needed: Two ¼...
- Page 14 INSTALLATION MANUAL 13 IN-SWINGING DOOR CONFIGURATION *may be sold separately Hollow Door Frame Hardware Kit Non-Concrete Filled Install Instructions To install the bracket to a non-concrete lled steel door frame we suggest using ¼” heavy duty toggle anchors. Kit includes: Tools needed: Two ¼...
- Page 15 14 INSTALLATION MANUAL HARDWIRE ACCESSORY INSTALLATION Wiring harness to accessory (Z) Cable through hole and grommet (Y) (exit ability on both sides of side bracket) Accessory attachment connector (W) Strain relief (X) IQ Lockdown is equipped with optional wired control capability to support accessories, such as egress, emergency lock (panic), motion sense and others.
- Page 16 INSTALLATION MANUAL 15 • Thread the wiring harness (Z) through your installed grommet before any accessory connection. • Use proper conduit and flex joints across the door hinges to securely route the wire to your accessory mounting location. • If you need to lengthen the cable consider these options. •...
-
Page 17: Pairing Troubleshooting
16 INSTALLATION MANUAL TROUBLESHOOTING Below are some common issues you might encounter while installing or operating your IQ Lockdown. If you do not see your issue below, contact us at support@havenlock.com. If the unit fails to lock/unlock you will need to check the straps and screws nearest the servo motor. Make sure your nylon strap is not bunched up within the unit. -
Page 18: Important Safeguards
The Z-Wave™ word mark and logos are registered trademarks owned by Silicon Laboratories, Inc. and its subsidiaries and any use of such marks by HavenLock, Inc is under license. Other trademarks and trade names are those of their respective owners. Manufactured by HavenLock Inc. for Johnson Controls Nashville, TN...
