- Page 1 Soundbar Speakers Operating and Installation Instructions This manual is for use with Furrion FSBT43S-BL Soundbar Speakers...
-
Page 2: Table Of Contents
Welcome Furrion FSBT43S-BL Soundbar Speakers ® Thanks you for purchasing Furrion FSBT43S-BL soundbar speakers. Before installation and use, please read all instructions carefully. This will ensure safe use and reduce the risk of injury. Contents IMPORTANT SAFETY INSTRUCTION ..........UNPACKING .................. -
Page 3: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION Please read all of the information in this operating manual, including all safety, shock, or injury to persons, users should follow the directions and warnings in this manual. 1. Read these instructions for all components before using this product. 2. -
Page 4: Unpacking
Carefully unpack the speakers. Check to be sure the carton includes all the parts shown below. If any part of the speaker pair appears damaged, do not use them. Notify your Furrion dealer immediately. Note: copy the numbers onto your warranty card. -
Page 5: Steps Of Installation
STEPS TO INSTALLING Before you make any holes Be sure you have read and understand the considerations provided in “Important Safety Instruction” starting on page 2, so you can proceed with CAUTION: If you are unsure of your ability to complete this process, contact a professional installer. -
Page 6: Prepare The Wall For Inserting The Speaker
PREPARE THE WALL FOR INSERTING THE SPEAKER Measure and mark the hole to be cut You need a carpenter’s level, a sharp pencil, and optional tape with the template to complete this step. 1. Position the template carefully over the pilot hole where you want to install one speaker. -
Page 7: Circuit Diagram
PREPARE THE WALL FOR INSERTING THE SPEAKER (Figure: 6) Snapping the grille into place CIRCUIT DIAGRAM Woofer 4Ω Speaker Capacitor Tweeter 4Ω 4.7 uF Speaker (Figure: 7) - Page 8 Furrion Innovation Center & Institute of Technology ©2007-2017 Furrion Ltd. Furrion and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries. FURRION.COM IM-FSBT43S-BL V1.3...

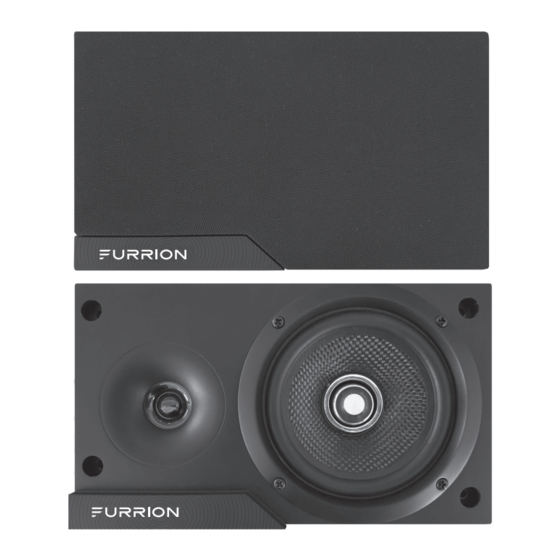

- Page 9 SOUNDBAR SPEAKERS FSBT43S-BL HIGH DEFINITION AUDIO VIBRATIONSMART™ CLIMATESMART™ • Fiberglass reinforced cone extends frequency response and minimizes distortion; this controls rigidity and internal damping, and delivers high definition audio with a pure, distinct sound. • Flush mounted design into cabinetry.
- Page 10 USA Innovation Center & Institute of Technology: 52567 Independence Ct. Elkhart, IN 46514 Customer Service & Technical Support: Email: support@furrion.com Tel : (888) 354 5792 www.furrion.com Furrion and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries. ©2007-2019 Furrion Ltd. MS-FSBT43S-BL-V.2.6...
