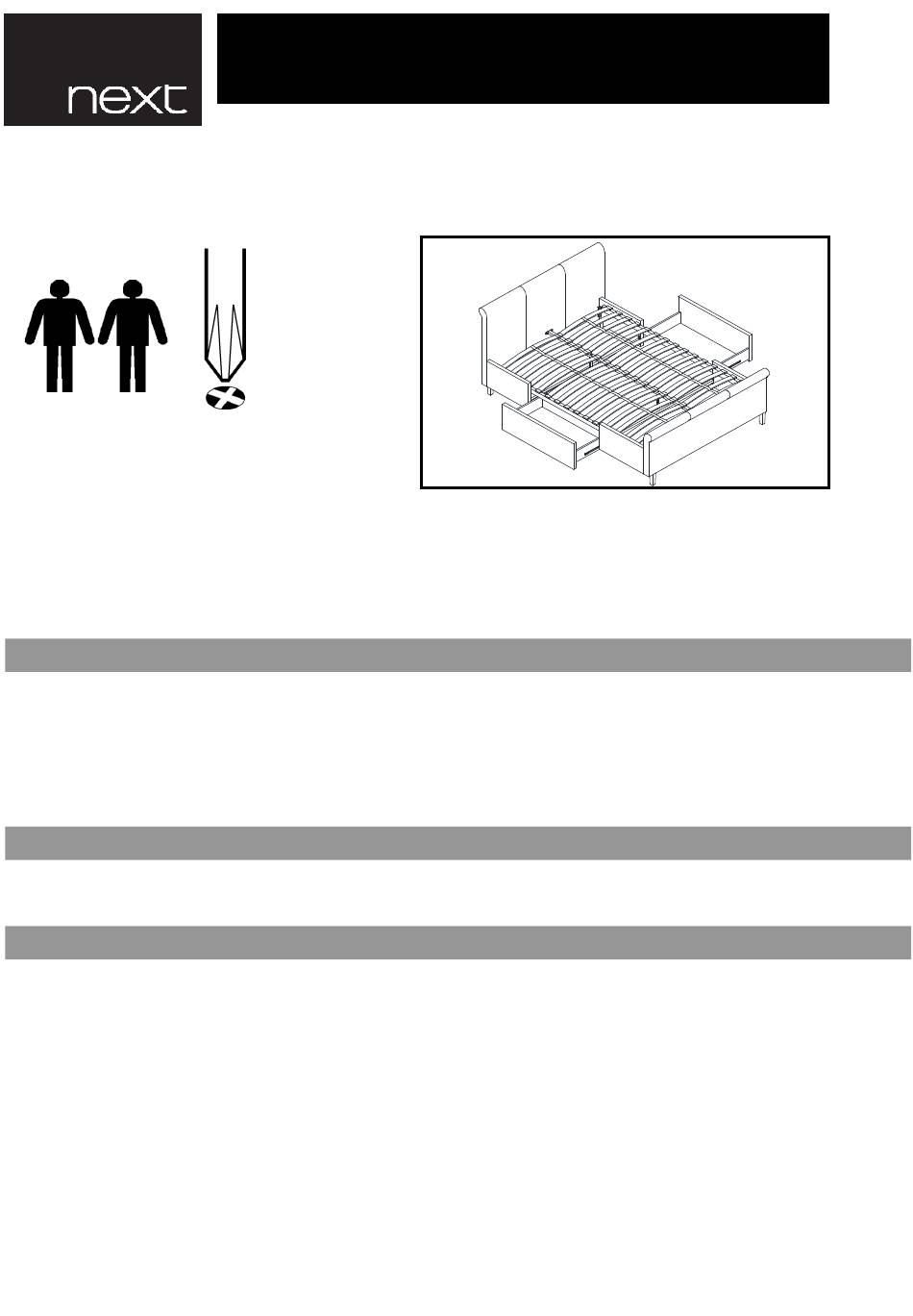

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or require
any replacement fittings plase contact Customer
Services Tel: 0333 777 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is
found to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
PRODUCT INFORMATION
• Fabric composition: 58% cotton, 42% viscose.
• Made in China.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Clean reguarly using a vacuum cleaner or clean soft brush.
• There may be indentations in the upholstery from the internal packging; this will come out over time .
• Care should be taken to avoid spilling anything on the upholstery. If spillage occurs act promptly and soak up any
liquids by blotting with a clean absorbent cloth and allow to dry naturally. Never rub stains. Never use a wet cloth.
• For dirty marks, use a dampened cloth with cold clean water. For more stubborn stains soak the cloth first in
• Avoid sharp objects that may damage the surface such as keys, buckles, coins etc .........
• Do not allow pets on leather upholstery.
Portofino Storage Bed
ASSEMBLY INSTRUCTIONS.
Page 1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the Portofino Storage Bed and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Next Portofino Storage Bed

  • Page 1 Portofino Storage Bed ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings plase contact Customer Services Tel: 0333 777 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
  • Page 2 BED FITTINGS DRAWER FITTINGS Page 2 of 9...
  • Page 3 BED PARTS DRAWER PARTS Page 3 of 9...
  • Page 4 STEP ONE Attach Wooden Feets ( 4 )X4 by using Allen key (F) ,washer (K) X 4 and Bolts (M ) X 4 to Headboard ( 1 ) and Footboard (2). STEP TWO Attach headboard (1)and footboard (2) to siderails (3) using Spanner (G) ,washer (K) X 4 and bolt (A) X 4.
  • Page 5 STEP FOUR Attach Supporting Legs (7)X2 to Supporting Tube (5) by using Bolts (B) X 2, washer (L) X 2 , adjustable feet ( H) X 2 and Allen key (E). STEP FIVE Attach the Supporting Tube (5) to Headboard ( 1 ) and Footboard (2) by using Allen Key ( F ) and bolt ( D ) X 4 and washer (K) X 4 STEP SIX...
  • Page 6 STEP SEVEN Assemble drawer by using left side panel (11) ad right side panel(10) and Back panel (12) , with tools Rafix Cam Bolt (N) x 4 and Cam (O)x 4 Note : need a screw driver , which is not provided STEP EIGHT Attach the Lathing (14) to Back panel (12) by using Rafix Cam Bolt (N) x 6 and Cam (O)x 6...
  • Page 7 STEP TEN Fix Front Panel (13) by using Rafix Cam Bolt (N) x 7 and Cam (O)x 7 Note : need a screw driver , which is not provided STEP ELEVEN Insert the assembled drawer into the bed frame Page 7 of 9...
  • Page 8 STEP TWELVE Assemble the sprung slats as following. 1. Insert Sprung Slats (8) into the Straps (9). 2. Insert Sprung Slats (8) into Caps ( I ). 3. Insert Caps ( I ) completed with Sprung Slats (8) into corresponding holes on Side Rail (3). 4.Insert the other end of Slats (8) into Cap ( J ) and lock into centre rail (5) 5.
  • Page 9 To move the bed, remove the mattress and lift the bed into its new position to avoid damage. Ensure the feet are at 90° to the floor before replacing the mattress. Next Retail Ltd, Desford Road, Leicester, LE19 4AT Page 9 of 9...
