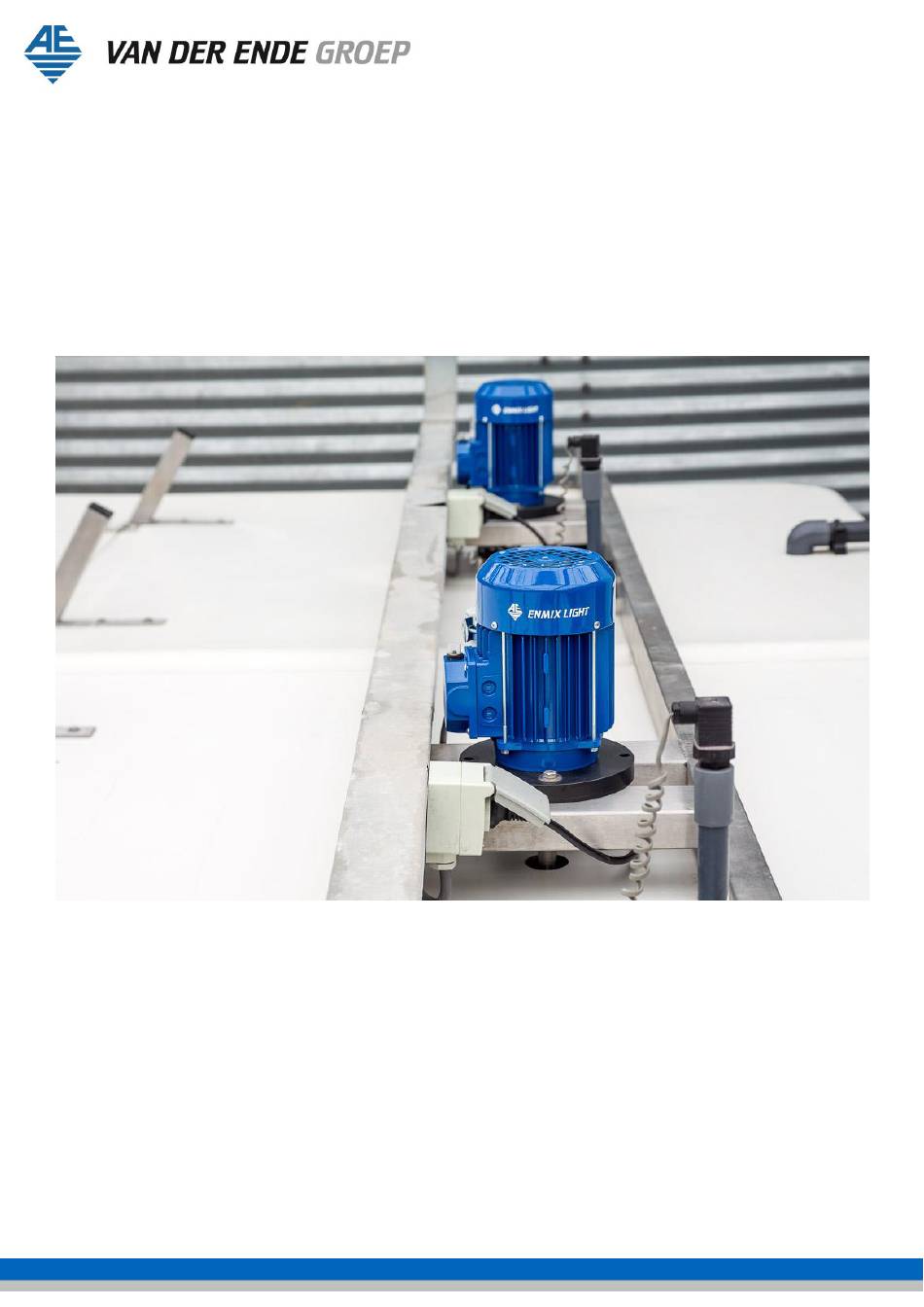

- Page 1 Assembly Manual Enmix Light Agitator/mixer Version: 1.9 Date: February 2022...
-
Page 2: Foreword
This assembly manual is intended for use by technicians who are qualified to install this type of machine. It is not a user manual. The Enmix Light has no real function when it is not connected to the appropriate facility for this installation and consequently it is classified as an unfinished machine. This assembly manual contains only those instructions pertinent to the safe assembly, correct installation and safe operation of the Enmix Light. -
Page 3: Table Of Contents
Malfunctions ..........................14 Declaration of Conformity .......................15 Notes............................16 Pagina 3 van 16 Van der Ende Groep. · Aartsdijkweg 23, 2676 LE, Maasdijk · Telefoon 0174 515050 IBAN NL71 RABO 0340341610 · KvK Den Haag 27230471 · Btw-nummer NL8000.78.378.B01 · info@vanderendegroep.nl · www.vanderendegroep.nl... -
Page 4: Identification
4. Mixing disc; PVC black (7) A mounting frame which can be placed between the Enmix Light and the liquid reservoir is optionally available. The material for this frame is stainless steel 304. It’s also possible to request the mounting frame as stainless steel 316. -
Page 5: Schematic Diagram Of The Machine
1.1.3 Schematic diagram of the machine Below are the main components of the Enmix Light, represented by a number and corresponding name. Figure 1: Overview of components Enmix Light Description Electric motor Capacitor 12.5 µF (Only at 1-fase motors) Cable + Plug (2 meter) -
Page 6: Operation
The Enmix Light must be connected to a switched socket outlet or a timer to operate the machine. The reset button for the thermal protection is located in the cover of the motor’s terminal box. -
Page 7: Use
1.6 Operating environment The Enmix Light is intended to be used as a mixer that is mounted on a fertilizer bin or other container. When installing the mixer, care should be taken to ensure there is sufficient free space around the Enmix Light. -
Page 8: Guarantee Conditions
The CE mark relates to compliance with the Machinery, Low Voltage, EMC and PED Directives. The Enmix Light is an unfinished machine and consequently does not meet all the conditions and essential safety requirements at the time of delivery. A list of the conditions and safety requirements that the Enmix Light does not meet at the time of delivery may be obtained from the manufacturer. -
Page 9: Description
Figure 3: Position of the mixing disc 2.2 Operating principle The Enmix Light construction comprises a motor and an extended shaft to which a mixing disc has been attached. The shaft can be customised to fit every fertilizer bin or other container of liquid substances shorter or shallower than 140 cm. -
Page 10: Safety Instructions
The Enmix Light may only be used within the application areas for which it has been designed. The Enmix Light has been designed to operate as a mixer for a system in which liquid media are used. These media may only contain chemical substances that are compatible with the materials of the Enmix Light components that come in contact with them. -
Page 11: Assembly
Advice with regard to dosage rates and types of fertilizer should be obtained from your supplier. • Make sure the fluid reservoir which the Enmix light is mounted to is placed on a stable surface. • Make sure that the Enmix Light is firmly attached to the fertilizer bin or container. -
Page 12: Assembly
Figure 4: Assembly of the Enmix light Pagina 12 van 16 Van der Ende Groep. · Aartsdijkweg 23, 2676 LE, Maasdijk · Telefoon 0174 515050 IBAN NL71 RABO 0340341610 · KvK Den Haag 27230471 · Btw-nummer NL8000.78.378.B01 · info@vanderendegroep.nl · www.vanderendegroep.nl... -
Page 13: Installation
Check the rotational direction. The standard direction, viewed from above, is clockwise. Note: In most cases, it is not necessary to continue mixing. Operating the Enmix Light with a timer and/or low water circuit is recommended. This will prevent unnecessary turning and will significantly increase the lifespan of the machine. -
Page 14: Operation/Using For The First Time
5mm) or viscous agents (viscosity > 1000 MPas) with the Enmix. • Always make sure that the agents and liquids used are suitable for use in the Enmix Light. The supplier or manufacturer should be able to send you a list, free of charge, containing a complete overview of the agents that may or may not be used. -
Page 15: Declaration Of Conformity
L. van der Ende Maasdijk 14 January 2020 Pagina 15 van 16 Van der Ende Groep. · Aartsdijkweg 23, 2676 LE, Maasdijk · Telefoon 0174 515050 IBAN NL71 RABO 0340341610 · KvK Den Haag 27230471 · Btw-nummer NL8000.78.378.B01 · info@vanderendegroep.nl · www.vanderendegroep.nl... -
Page 16: Notes
Notes Pagina 16 van 16 Van der Ende Groep. · Aartsdijkweg 23, 2676 LE, Maasdijk · Telefoon 0174 515050 IBAN NL71 RABO 0340341610 · KvK Den Haag 27230471 · Btw-nummer NL8000.78.378.B01 · info@vanderendegroep.nl · www.vanderendegroep.nl...
