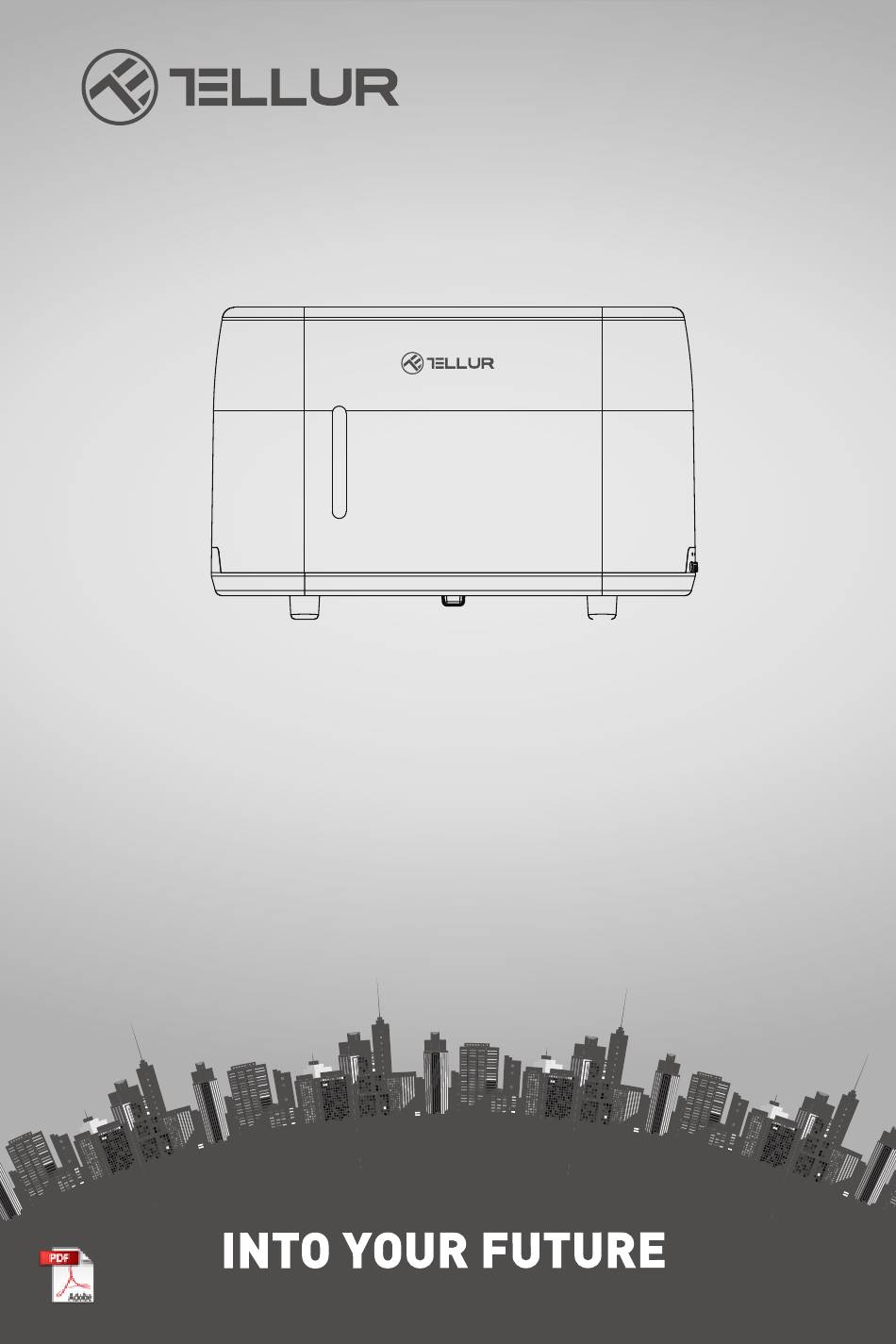

- Page 1 FLAME AROMA DIFFUSER TLL441121/TLL441131 User guide...
- Page 2 Product Diagram Cover Mist Light Air intake Airoutlet Dc socket Drain side outlet Outlet...
- Page 3 This Aroma Diffuser uses Ultrasonic Technology to instantly vaporize the water from tank, producing a cool, dry, fragrant mist. Operation steps 1. Keep the product straight and remove the top cover, on vertical direction. Fig.1 2. Please, connect the AC adaptor to the DC jack, from the base of the main body. Fig.2 3.
- Page 4 6. Press the “LIGHT” button, to adjust the light mode and intensity - Strong light(default)/weak light/breathing light. Fig.6 7. If you do not use the diffuser, for long time, please, drain out the water and dry the tank. If you want to use it again, please, use a neutral detergent to clean the water tank, and after that, you can use it.
- Page 5 5. Do not use acids, or enzymes detergents, as this may produce poisonous gases or cause malfunctions. Note: Be sure to use a mild detergent. Safety instructions Please, follow the indications below to avoid malfunction of the aroma diffuser: • Do not fill over 240 ml “Maximum water level”. Suggestion: use ~ 200ml of water.
- Page 6 TROUBLESHOOTING Please, refer to the table below in the event of the product operating abnormally: If the product does not work well, please, refer to the following points before requesting repairs. • Is there enough water in the tank? Will not switch on or switch off - Please, add water to the tank •...
- Page 7 TECHINCAL SPECIFICATIONS Voltage: AC100-240V / DC/24V 500MA Capacity: 240ml Max power: 14W Ultrasonic frequency: 2.4MHz Operation time: Up to 15 hours Vapor power: 16-20ml/h Vapor level: Light or powerful Light mode intensity: Strong (default), weak, breathing light Timer: ON/2H/4H Lighting: LED Low water protection: Auto shutdown Coverage area: Up to 30m2 Power cord length: 150cm...
- Page 8 Disposal and recycling information The crossed-out wheeled-bin symbol on your product, battery, literature, or packaging reminds you that all electronic products and batteries must be taken to separate waste collection points at the end of their working lives; they must not be disposed of in the normal waste stream with household garbage.
