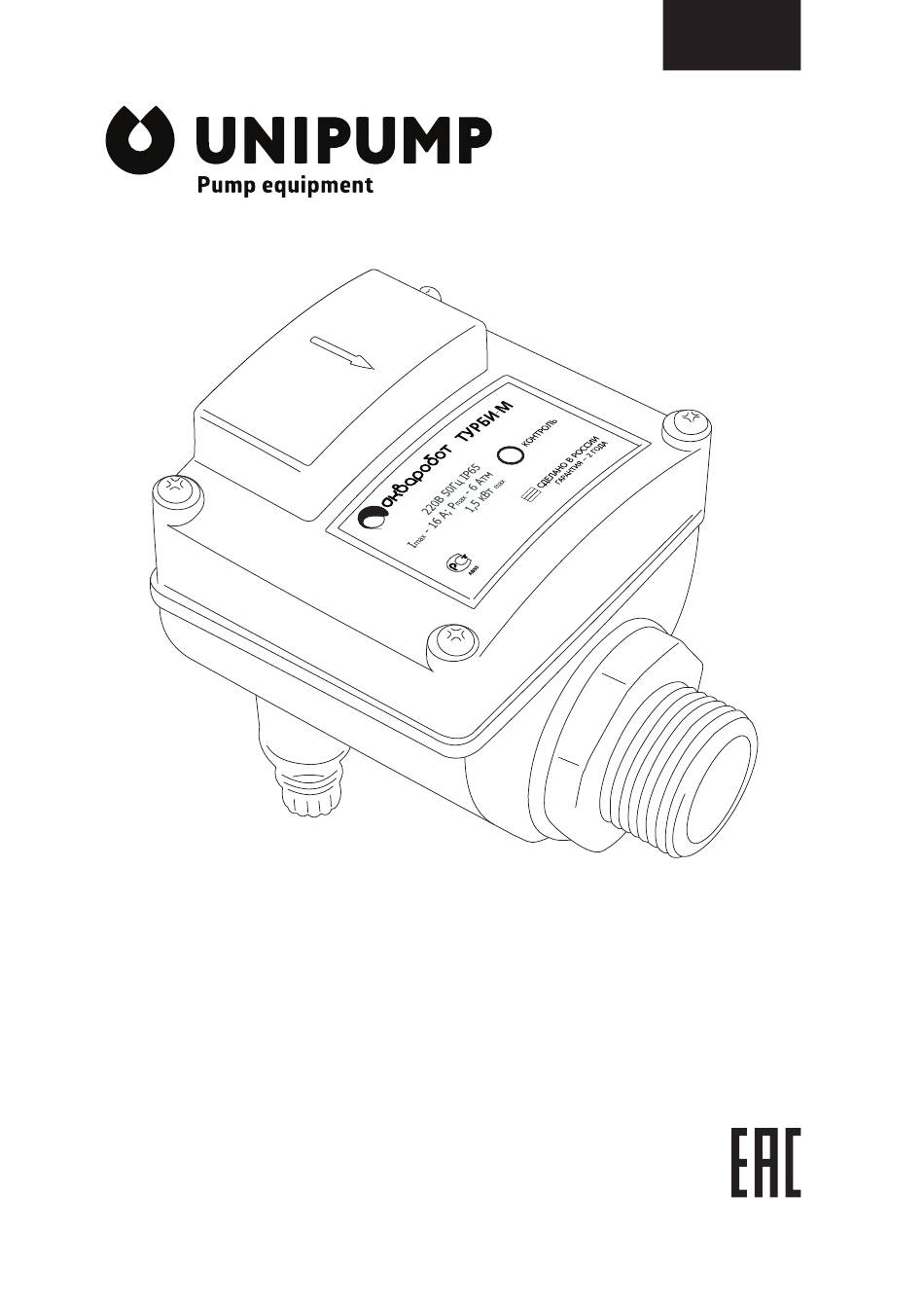

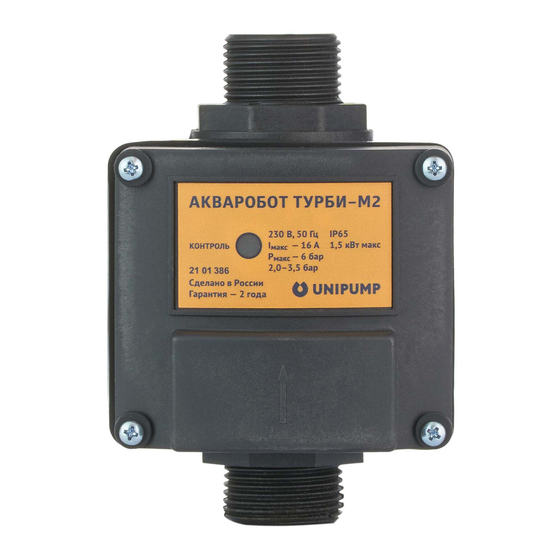

- Page 1 PUMP AUTOMATIC CONTROL UNIT TURBI-M2 Manual Installation and Operation Manual...
- Page 3 The present Manual contains basic instructions for installation, operation and maintenance. Please, read the present Manual carefully before the device operation in order to avoid accidents and breakage. CORRECT USE AND FUNCTIONAL CAPABILITIES The device is designed for automatic on and off control of single-phase surface and submersible pumps (including vibration pumps) with power of up to 1.5 kW according to flow and minimum pressure (Pmin), it can be also used as...
-
Page 4: Supply Package
Wire nut (СИЗ-2) for grounding wires (un- der upper cover of the device) Installation and Operation Manual Package DESCRIPTION AND OPERATING PRINCIPLE TURBI-M2 control unit consists of sealed plastic housing (1) and upper cover with rubber bushing (2). On the housing... - Page 5 there are two screwed connecting fittings with 1» external thread (3) and two cable glands (4). On upper cover there is signal LED for the device mode indication (5). Flow sensor (FS), dual-threshold pressure sensor (PS) and electronic circuit board with microcontroller which sets the device operation program are installed inside housing.
-
Page 6: Specifications
4. Load current: not more than 10 А. 5. Max permissible pressure in the system: 0.6 MPa (6 bar). It is permissible to use TURBI-M2 control unit in pressure boosting systems provided that summing pressure is not more than 6 bar. -
Page 7: Safety Measures
SAFETY MEASURES 1. The device is under the life-threatening supply voltage of 220V, 50 Hz. Installation and electrical connection should be made by qualified specialists in strict accordance with “Rules for Technical Operation of Electric Installations of Consumers” and “Safety Code for Technical Operation of Electric Installations of Consumers”. - Page 8 Temporary mode: This mode is automatically set when the pump, for a variety of reasons, cannot produce Pmax. In this case the pump is switched off with 30-second delay when water flow stops and rate thereof drops to 2 l/min. The pump is switched on when water flow appears (more than 2 l/min) but not earlier than in 2 seconds after the pup switching off.
-
Page 9: Mode Indication
Install the suction line in accordance with Surface and Sub- mersible Pumps Operation Manual. TURBI-M2 control unit shall be installed on the pump dis- charge line. All connections must be sealed. When installing the device, do not use excessive force in avoidance of disrup- tion of thread on plastic connecting fittings. - Page 10 VARIANTS FOR INSTALLATION OF TURBI-M2 CONTROL UNIT WHEN USING IT FOR ON/OFF PUMP AUTO- MATIC CONTROL ATTENTION! The required condition for TURBI-M2 control unit operation in automatic mode is the presence of pressure tank in the system.
- Page 11 When using the control unit in automatic mode as well as in pressure boosting systems, it is necessary to take into account that the device is designed for the system maximum summing pressure as 6 bar. FOR AUTOMATIC WATER SUPPLY STATIONS...
- Page 12 FOR SURFACE AND SUBMERSIBLE PUMPS...
-
Page 13: Electric Connection
ELECTRIC CONNECTION Twist off screws and remove the control unit upper cover. Re- move wire nut (СИЗ-2). Make electrical connection according to diagram below. Use waterproof three-core electrical cable with double insulation. Max size of power cable for connectors XI, Х2 and wire nut (CИЗ-2): 2.5 mm2 Max line length for cables with size of 1.5 mm2: 36 m If it is required to extend supply cable by more than 36 m, it... -
Page 14: Putting Into Operation
Manual for Pre sure Tank. 3. Avoid water coming to the control unit housing. 4. It is not permissible to use TURBI-M2 control unit with upper cover removed. 5. Avoid water coming into the pump suction line. - Page 15 If the system is not used for a long time in winter, it is nec- essary to disconnect power supply, drain water from it and dismount TURBI-M2 control unit. Store the device in dry and heated premises away from direct...
-
Page 16: Common Troubles And Remedies
COMMON TROUBLES AND REMEDIES Trouble Potential causes Remedies Check power supply Electrical cable Pump is not and wiring system switched on at flow failure rate of more than 2 Contact service l/min Microcontroller failure center Open circuit in cable Replace cable between the device and Pump is not switched the pump... -
Page 17: Warranty Liabilities
WARRANTY LIABILITIES The device service life is 5 (five) years from the date of com- mencement of operation. The manufacturer shall bear warranty liabilities for 24 (twen- ty four) months from the date of the device sale through retail trade network During warranty period, the manufacturer shall gratuitous- ly eliminate defects caused by the manufacturer’s fault or replace the product provided that consumers comply with the... - Page 18 Manufacturer – Subline Servise, LLC build. 1, 12 Konovalov str., Moscow, 109428, Russia The version of Installation and Operation Manual in Kazakh Phone: +7 (495) 73491 language is available on website www.unipump.ru and at the points of sale.
