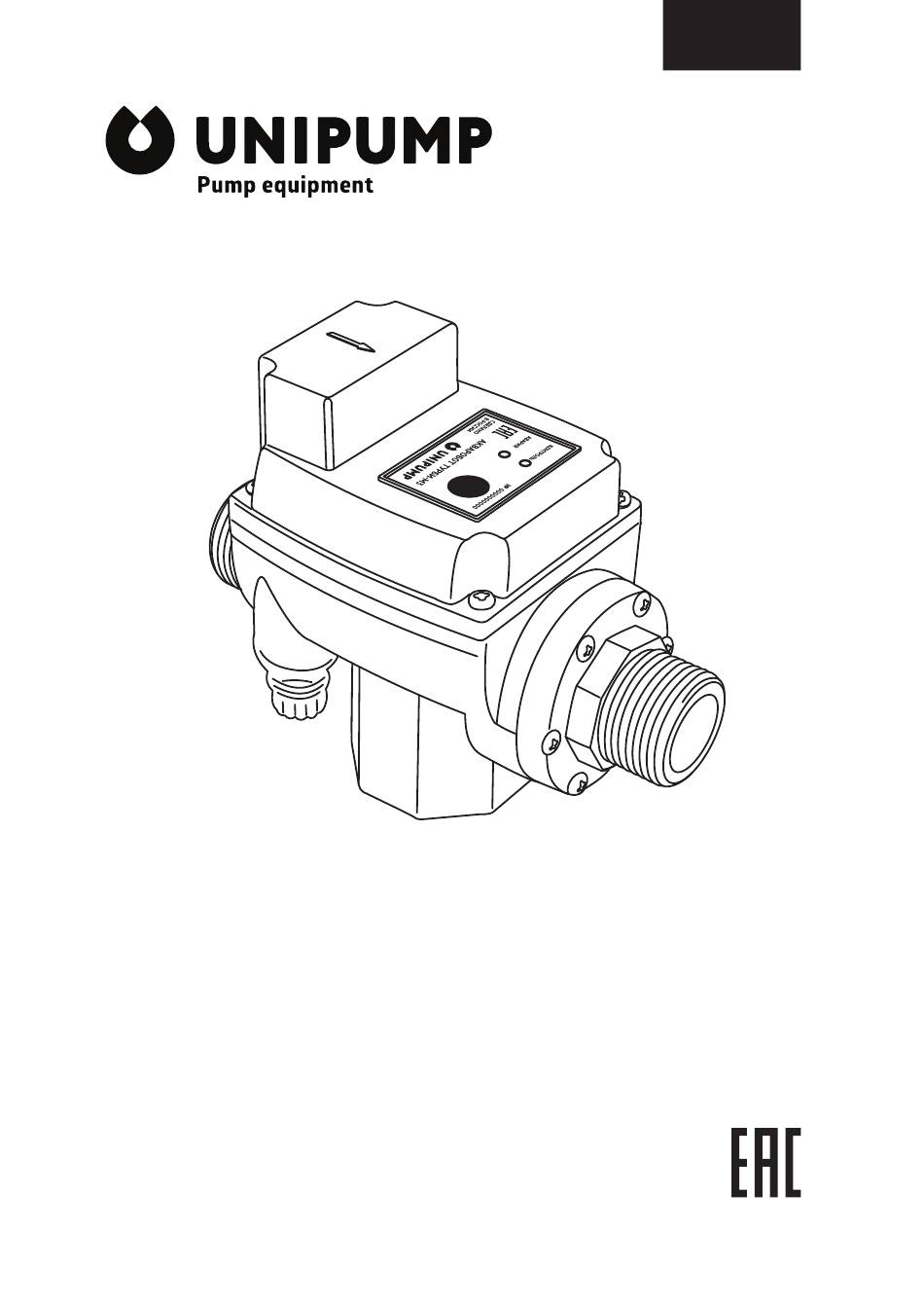

- Page 1 PUMP AUTOMATIC CONTROL UNIT TURBI-M3 DUAL-THRESHOLD Installation and Operation Manual...
-
Page 2: Correct Use
The present Manual contains basic instructions for installation, operation and maintenance. Please, read the present Manual carefully before the device operation in order to avoid accidents and breakage. CORRECT USE The device is designed for automatic on and off control of single-phase surface and submersible pumps (including vibration pumps) with power of up to 1.5 kW according to flow and minimum pressure (Pmin), and for pump dry-running... -
Page 3: Supply Package
SUPPLY PACKAGE On upper cover there are two signal LEDs indicating the device modes – green CONTROL (6) and red ALARM (7), and button to reset emergency mode (8). Flow sensor (FS), min pressure sensor (PS) and electronic Name Quantity, pcs circuit board with microcontroller which sets the device TURBI-M3 as a set operation program are installed inside housing. -
Page 4: Safety Measures
3. Max current: not more than 16 А. Technical Operation of Electric Installations of 4. Load current: not more than 10 А. Consumers” and “Safety Code for Technical Operation of 5. Max permissible pressure in the system: 0.6 MPa (6 bar). Electric Installations of Consumers”. -
Page 5: Mode Indication
MODE INDICATION 4. After transfer to pre-emergency mode, the device produces 6 automatic trial starts of 30 seconds each – in 5, 20 and 60 minutes and then – in 6, 12 and 24 hours. When water appears during any trial starts, the Pump mode, the pump is switched Green LED evenly flashes pump is automatically switched on and transferred to... -
Page 6: Hydraulic Connection
HYDRAULIC CONNECTION VARIANTS OF INSTALLATION OF TURBI-M3 ON SURFACE PUMP Install the suction line in accordance with Surface and Sub- OUTLET mersible Pumps Operation Manual. TURBI-M3 control unit shall be installed on the pump dis- charge line. All connections must be sealed. When installing the device, do not use excessive force in avoidance of disrup- tion of thread on plastic connecting fittings. - Page 7 Variants for Installation of TUR- FOR SURFACE PUMPS AND BI-M3 when it is used for On/Off AUTOMATIC WATER SUPPLY Pump Automatic Control STATIONS ATTENTION! The required condition for TURBI-M3 control unit operation in automatic mode is the presence of pressure tank in the system.
-
Page 8: Electric Connection
FOR SUBMERSIBLE PUMPS ELECTRIC CONNECTION Twist off screws and remove the control unit upper cover. Re- move wire nut (СИЗ-2). Make electrical connection according to diagram below. pressure meter exit exit 220V cable with plug 50Hz TURBI-M3 exit exit pressure line suction line printed circuit board insulating connector... -
Page 9: Putting Into Operation
PUTTING INTO OPERATION essary to meet all the requirements set forth in the present Manual. If the system is not used for a long time in winter, it is nec- Before putting the system with TURBI-M3 control unit into essary to disconnect power supply, drain water from it and operation, it is necessary to fill the pump and suction line dismount TURBI-M3 control unit. -
Page 10: Common Troubles And Remedies
COMMON TROUBLES AND REMEDIES WARRANTY LIABILITIES Trouble Potential causes Remedies The manufacturer shall bear warranty liabilities for 24 (twen- Electrical cable Check wiring system Pump is not switched on ty four) months from the date of the device sale through and electric cable. -
Page 11: Warranty Card
Manufacturer – Subline Servise, LLC build. 1, 12 Konovalov str., Moscow, 109428, Russia The version of Installation and Operation Manual in Kazakh Phone: +7 (495) 73491 language is available on website www.unipump.ru and at the points of sale.
