This document is a guide for downloading the ROBOTC firmware to the VEX Cortex using the
USB A-to-A cable.
You will need:

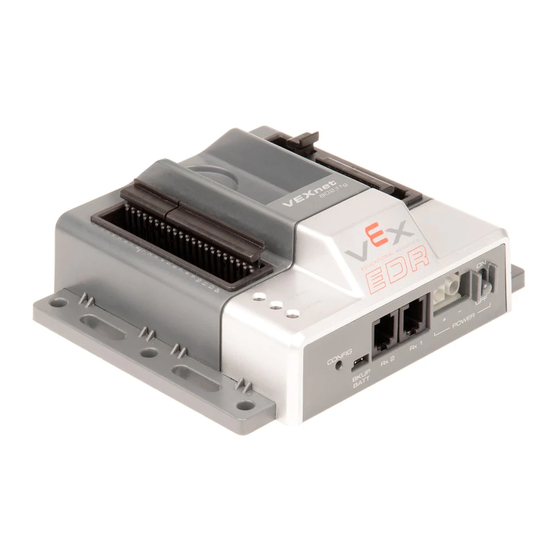

• 1 VEX Cortex Microcontroller with one 7.2V Robot Battery
• A computer with ROBOTC for Cortex and PIC installed
• 1 USB A-to-A Cable
1. Leaving the POWER switch in the OFF position, connect your Cortex to the computer using the USB
A-to-A cable. Once the cable is attached, move the POWER switch to the ON position.
© 2010 Carnegie Mellon Robotics Academy / For use with VEX Robotics Systems
ROBOTC
Firmware
over USB

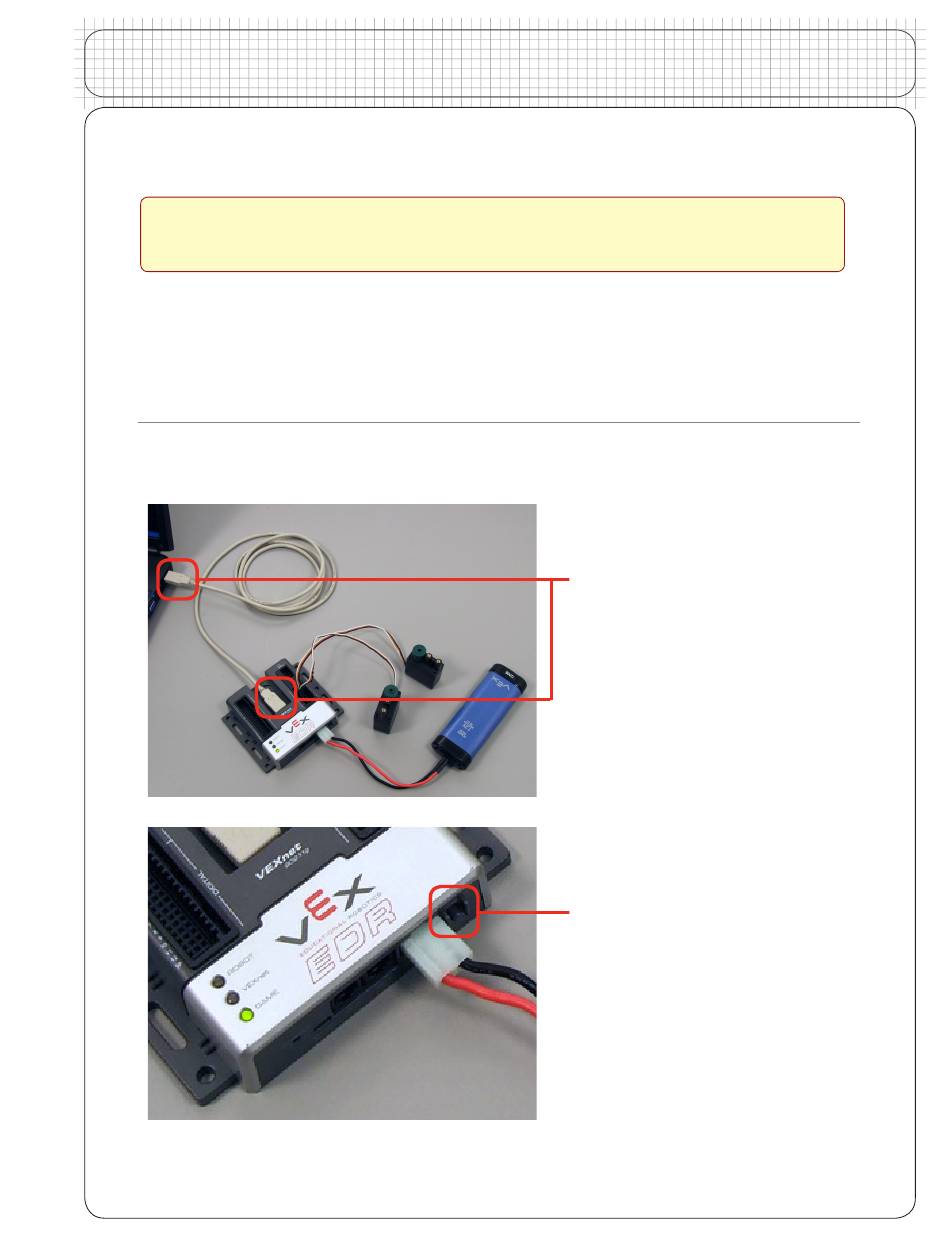

1a. Connect the Cortex to your PC
Use the USB A-to-A cable to
connect your Cortex to your PC.
1b. Turn the Cortex ON
Make sure a 7.2V Robot battery is
connected and move the POWER
switch on the Cortex to ON.
Downloading ROBOTC Firmware over USB
ROBOTC
•
