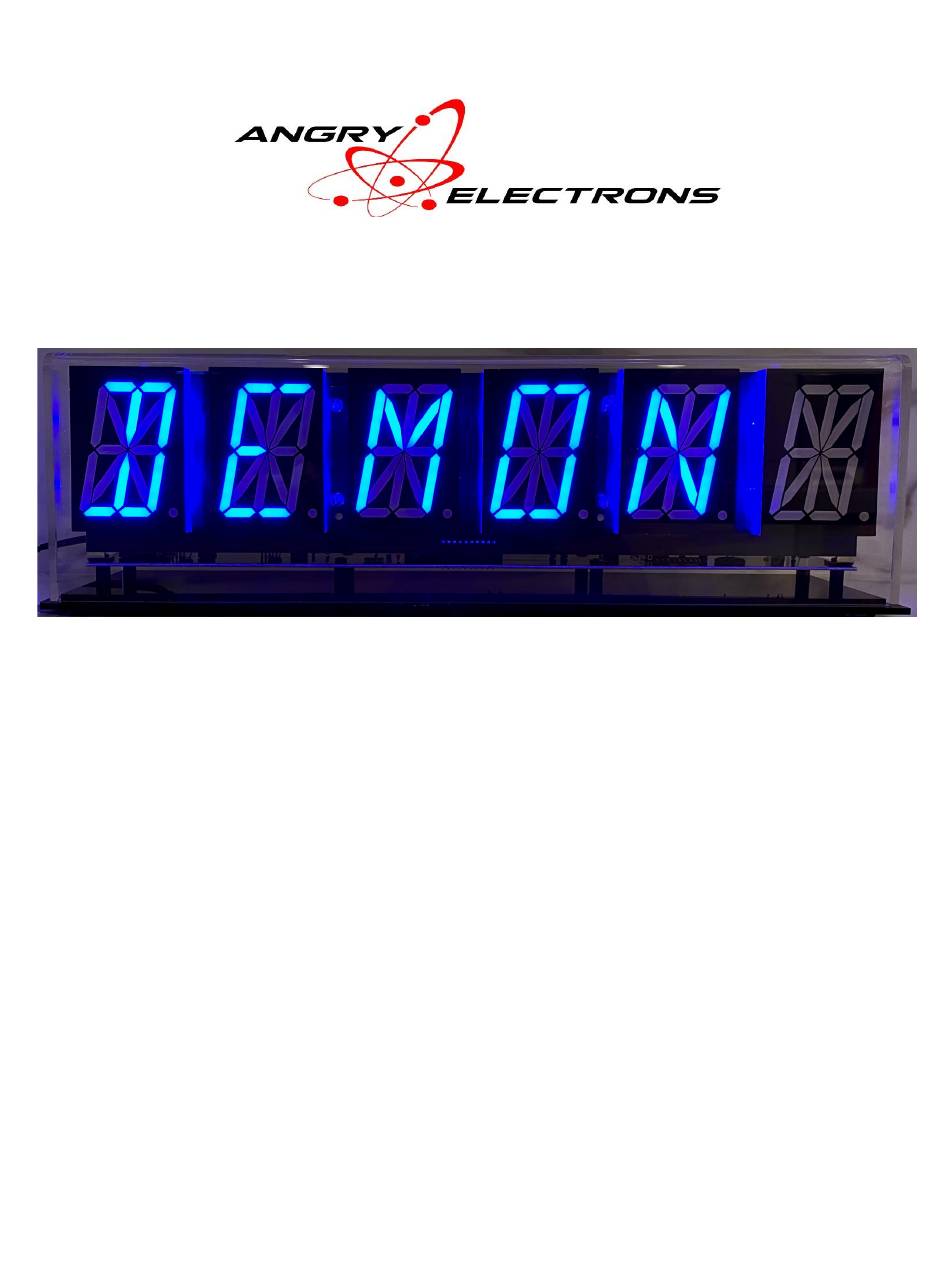

WordClock-2 Six Digit and WordClock-2-8 Eight Digit Assembly Guide Contents Introduction Assembly Bill of Materials Schematic Warranty Terms and Conditions WordClock-2 Assembly Guide 4/20/20 Version 1.3 Page 1... -
Page 2: Introduction
Introduction WordClock-2 assembly should be attempted only by experienced builders. Although assembly is straightforward and not difficult, there are several surface mount parts that must be carefully soldered to the boards. The kit may be returned for a full refund less shipping within 30 days of purchase, only if assembly has not been attempted. - Page 3 • Build the power 5v supply on the main board. Install J1, F1, C1, C2, C3, D1, D2, L1, and U1. Note that C1, C2, D1, and D2 must be installed in the direction noted on the board. • Connect a 12v-18v power supply with a center positive, 2.1mm connector to J1, and check the test point for 5v.
- Page 4 Step 2 – Build the Display Board All parts are installed on the back of the board (silk screen side) except for the background lighting LEDs, and the alphanumeric displays. For ease of assembly, parts should be installed in the order noted here. •...
- Page 5 parts. • Solder resistor arrays R10-R12, to the back of the board. Note the polarity. The mark on the arrays must be aligned with the square side of the silk screen. Pin 1 is up on R10- R11, down on R12. •...
-
Page 6: Bill Of Materials
Bill of Materials Reference Part Value Note 330uf 25v- C1-C2, C9 3 Capacitor electrolytic C3-C8, C10 7 Capacitor 100nf through hole C11-C14 4 Capacitor 100nf surface mount 1N4001- 1 Diode supplied value may vary 1N4007 D2-D4 3 Zener Diode 1N5819 zener diode 1 Poly Fuse .5A –... - Page 7 brown-black-orange-gold or R3-R4 2 Resistor Brown-black-black-red-gold brown-red-yellow-gold or brown-red-black- 1 Resistor 120k orange-gold R6-R9 (Not 230R or Orange and Super Red – 315R, Others Resistor SMD 4 (0) Used) 315R 230R (supplied value may vary slightly) R10-R12 3 Resistor 4.7k Resistor array R13, R14, 270R or...
- Page 8 8 Standoff Threaded 10mm 10 Screw M3 8mm 2 Nut 1 SD Card Programmed with WordClock language database WordClock-2 Assembly Guide 4/20/20 Version 1.3 Page 8...
-
Page 9: Schematic
Schematic WordClock-2 Assembly Guide 4/20/20 Version 1.3 Page 9... - Page 10 WordClock-2 Assembly Guide 4/20/20 Version 1.3 Page 10...
-
Page 11: Warranty Terms And Conditions
Warranty Terms and Conditions This software and hardware product is Copyright (C) 2019 by Mitchell Feig. It is exclusively distributed by StocksClocks LLC. All Rights Reserved. StocksClocks warrants that for a period of 90 days following delivery, kit parts will (a) perform in accordance with published specifications, and (b) will be free from defects in materials and workmanship.
