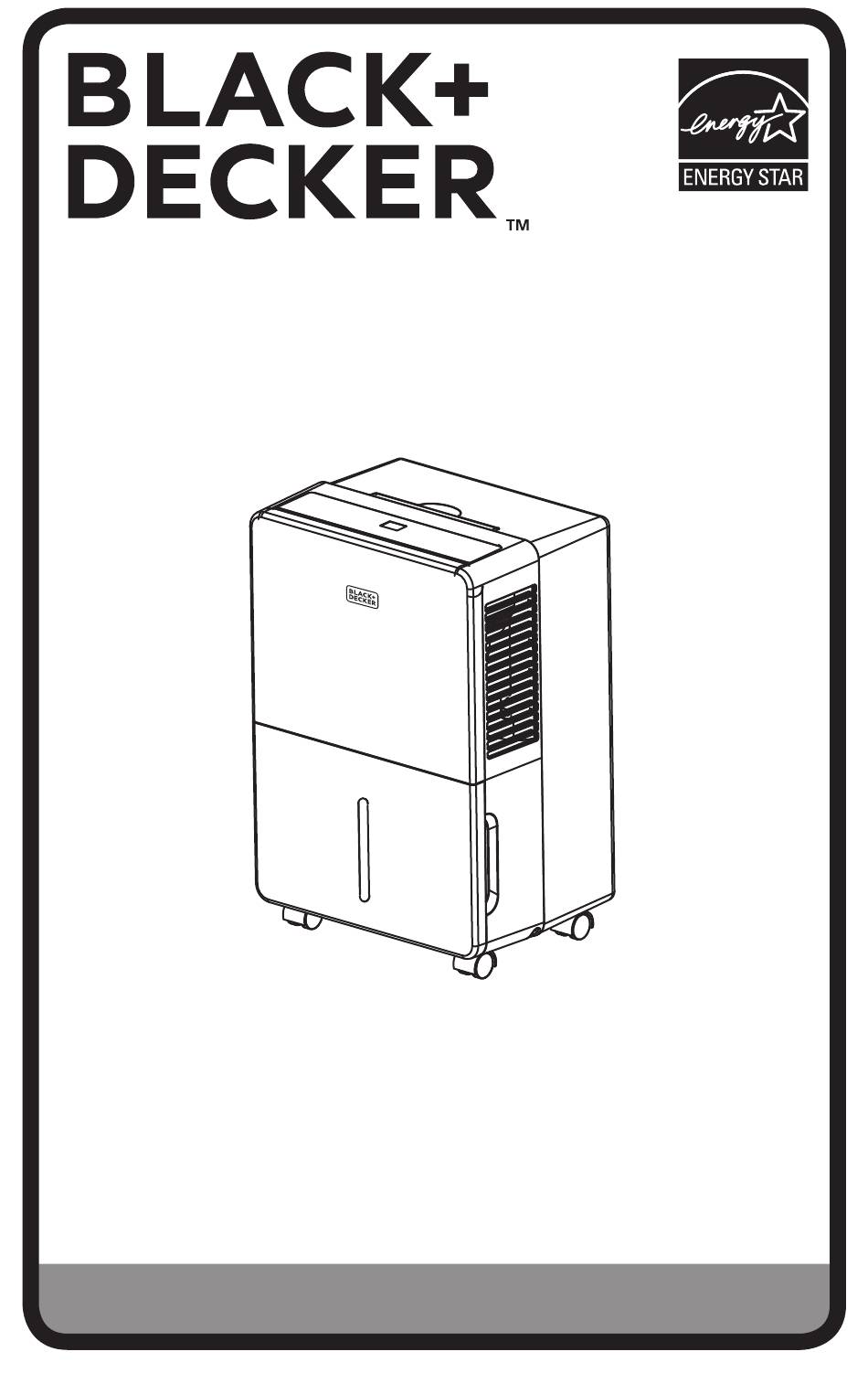

PORTABLE DEHUMIDIFIER
INSTRUCTION MANUAL
CATALOG NUMBER
BDT70PWT
Thank you for choosing BLACK+DECKER!
PLEASE READ BEFORE RETURNING THIS PRODUCT FOR
ANY REASON.
If you have a question or experience a problem with your BLACK+DECKER
purchase, go to www.blackanddecker.com/instantanswers
If you can't find the answer or do not have access to the Internet, call
844-299-0879 from 10:30 a.m. to 6:30 p.m. EST Mon. - Fri. to speak with an
agent. Please have the catalog number available when you call.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

Advertisement

loading

Summary of Contents for Black & Decker BDT70PWT

  • Page 1 PORTABLE DEHUMIDIFIER INSTRUCTION MANUAL CATALOG NUMBER BDT70PWT Thank you for choosing BLACK+DECKER! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON. If you have a question or experience a problem with your BLACK+DECKER purchase, go to www.blackanddecker.com/instantanswers If you can’t find the answer or do not have access to the Internet, call 844-299-0879 from 10:30 a.m.
  • Page 2 CONTENTS SAFETY INFORMATION Important Safety Instructions ............................3-4 Grounding Instructions .................................4 Safety Guidelines ..............................4 Power Cord Operation ............................4 SET UP & USE Parts & Features ..................................5 Control Panel ................................6 Installation Guide ..............................7 Before First Operation ............................8 Operation Instructions ............................
  • Page 3 SAFETY INFORMATION DANGER WARNING CAUTION DANGER - Immediate hazards WARNING - Hazards or unsafe CAUTION - Hazards or unsafe which WILL result in severe practices which COULD result in practices which COULD result in personal injury or death severe personal injury or death minor personal injury IMPORTANT SAFETY INSTRUCTIONS WARNING...
  • Page 4 SAFETY INFORMATION GROUNDING INSTRUCTIONS ELECTRICAL REQUIREMENTS The electrical requirements are a 115 volt 60 Hz, dehumidifier only, 15 amp. It is recommended that a separate circuit serving only the product be provided. The product is equipped with a 3-wire cord having a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded.
  • Page 5 SET UP & USE PARTS & FEATURES Control Panel & Digital Display Water Bucket Filter Castors (4) Drain Plug Pump Adapter & Gasket Pump Drain Kit Clear Hose Drain Adapter & Gasket Continuous Drain Kit Black, Threaded Hose Page 5...
  • Page 6 SET UP & USE CONTROL PANEL Bucket Full Fan Speed Home Comfort Mode Power On LED Indicator LED Indicators LED Indicators LED Indicator Clean FIlter Digital Humidistat Child Lock Timer On LED Indicator Display LED Indicator LED Indicator Basement Bedroom Pump Filter Increase/...
  • Page 7 SET UP & USE INSTALLATION GUIDE When you open the box, you should have received: Portable dehumidifier User Guide Castors (4) Pump Drain and Continuous Drain Kits To Install Castors: 1. Remove castors from the water collection bucket. The four castors can be taken out from the side of the bucket directly (See Fig 1). 2.
  • Page 8 SET UP & USE BEFORE FIRST OPERATION 1. Grip each side of the bucket and pull to remove the bucket from the dehumidifier (Fig. 3). Fig. 3 2. Check inside the bucket to make sure the float system is in the correct position.
  • Page 9 SET UP & USE OPERATION INSTRUCTIONS 1. When first operating the dehumidifier, press “Continuous” mode button and allow to run for 24 hours. NOTE: Unit may shut off automatically during 24 hour period if collection bucket is full (see page 8). If continuous drainage mode is utilized, and drain hose is connected, the unit will operate continuously (see page 10).
  • Page 10 SET UP & USE NOTE: When the bucket is full or removed from the unit, the compressor will turn off but the fan will continue to run for a few minutes. This is completely normal. The dehumidifier will not be removing moisture from the air at this time.
  • Page 11 SET UP & USE HOME COMFORT MODE Preset humidity levels (see PRESET MODE button on control panel) allow for dehumidifier to operate at optimum performance depending on where it is placed. Continuous Dehumidfier operates continuously regardless of the room’s relative humidity. Basement Digital humidistat is preset at 45 percent relative humidity.
  • Page 12 SET UP & USE INTERNAL PUMP MODE (CONTINUED) NOTE: Even once you activate the internal pump, you may not get water running out of the drain hose right away as there is a small, internal tank which must fill first. Also, the water will not run out of the drain hose on a continuous basis unless the dehumidifier has been placed in a very high humidity area.
  • Page 13 SET UP & USE Fig. 6 Fig. 7 Fig. 8 Gasket Drain Hose Drain Adapter Pump Adapter To use with standard garden hose (not included) 1. Place dehumidifier on a level surface. 2. Unscrew and remove drain cap to access the garden hose nozzle threads. 3.
  • Page 14 SET UP & USE GENERAL INFORMATION Recommended humidity levels: 30%-50% (Too dry, less than 15%, too humid, greater than 50%). During operation, it is normal for the exhaust coming from the side of the dehumidifier to be warm. Caused by preliminary factory testing, there may also be a small amount of water present in the bucket before using the dehumidifier for the first time, which is normal.
  • Page 15 CARE & CLEANING CARE AND CLEANING GUIDE NOTE: Make sure power is off and power cord is not plugged into electrical outlet prior to performing and cleaning to the unit The water collection bucket should be cleaned every few weeks to prevent the growth of mold, mildew and bacteria.
  • Page 16 TROUBLESHOOTING & WARRANTY BEFORE YOU CALL FOR SERVICE IF THE DEHUMIDIFIER FAILS TO OPERATE: A) Check to make sure that the dehumidifier is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
  • Page 17 TROUBLESHOOTING & WARRANTY Troubleshoot your problem by using the chart below. If the dehumidifier still does not work properly, contact W Appliance Co. customer service center or the nearest authorized service center. Customers must never troubleshoot internal components. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY Dehumidifier The dehumidifier is unplugged...
  • Page 18 TROUBLESHOOTING & WARRANTY LIMITED WARRANTY Any repair, replacement, or warranty service, 13. Food loss for loss due to product failure or delay in service, repair or and all questions about this product should be replacement. directed to W Appliance Co. at 844-299-0879 14.
  • Page 19 Page 19...
  • Page 20 BLACK & DECKER, BLACK+DECKER, the BLACK & DECKER and BLACK+DECKER logos and product names and the orange and black color scheme are trademarks of The Black & Decker Corporation, used under license. All rights reserved. Product in this box may differ slightly from that pictured. Does not affect function. Not all accessories shown in photography are included in this package.
