Operating instructions

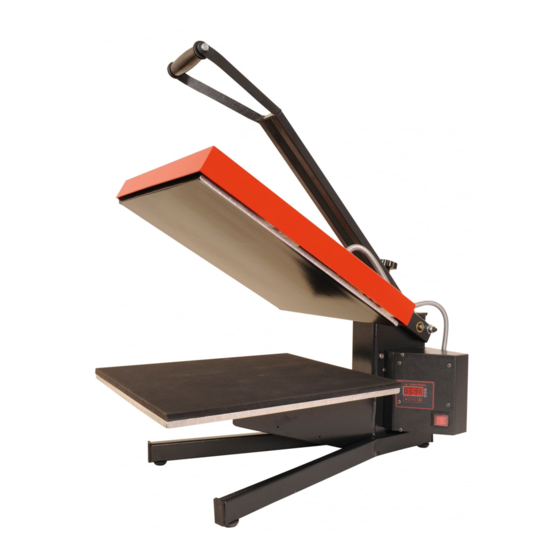

Manual Transfer Press
LTS 38
Fax +39. 02. 48 95 23 55
LOTUS TRANSFER PRESS SOLUTIONS GmbH & Co. KG
Anklamer Straße 38
10115 Berlin GERMANY
Tel. +49. 30. 40 50 45 8 45 Fax +49. 30. 40 50 45 888
info@lotustransfers.de / www.lotustransfers.de
1
Advertisement
Table of Contents
Related Manuals for Lotus Press LTS 38
Summary of Contents for Lotus Press LTS 38
- Page 1 Operating instructions Manual Transfer Press LTS 38 LOTUS PRESS s.r.l. LOTUS TRANSFER PRESS SOLUTIONS GmbH & Co. KG Via Giambellino 14a Anklamer Straße 38 20146 Milan ITALY 10115 Berlin GERMANY Tel. +39. 02. 48 95 03 86 Fax +39. 02. 48 95 23 55 Tel.
-
Page 2: Introduction
Operating Instructions Thank you very much for buying our Lotus heat transfer press. We are sure you will capitalize on LTS 38 this excellent unit for years if you take the time to read these instructions carefully. Introduction Please study these instructions carefully before transporting, mounting, using or maintaining the transfer press, as they will give you important directions for a safe handling. -
Page 3: Table Of Contents
Operating Instructions LTS 38 Inhalt Introduction ........................... 2 Warranty ............................4 Technical Data ..........................4 General Safety Instructions ......................5 Intended use and improper use ......................5 Safety instructions .......................... 5 Danger Warnings ........................... 6 Environmental conditions ....................... 6 Installation and transport ........................ 8 Positioning and electrical connection .................... -
Page 4: Warranty
During the warranty period defective or broken parts will be repaired free of charge by Lotus Press Milan/Italy. Transport and shipping expenses are on buyer's account. -
Page 5: General Safety Instructions
It should be noted that any modifications made by the user will invalidate the CE declaration of conformity. Furthermore, in this case Lotus Press S.R.L. will no longer be liable for the machine. -
Page 6: Danger Warnings
Operating Instructions Danger Warnings LTS 38 All rights reserved, all indications without engagement, subject to modifications. LOTUS TRANSFERS PRESS SOLUTIONS GMBH & CO. KG Page 6 / 22... -
Page 7: Environmental Conditions
The manipulation or replacement of parts of the machine is prohibited without the ex- press consent of the manufacturer. Any modification of the machine not expressly authorized by Lotus Press will result in civil and criminal liability. It is forbidden to remove or manipulate a safety device installed on the machine. -
Page 8: Installation And Transport
Operating Instructions Installation and transport LTS 38 Installation, maintenance, and repair work on electrical equipment must be carried out by quali- fied and/or competent personnel. The operator's workplace must be kept clean, tidy, and free from objects that may restrict his freedom of movement. -
Page 9: Positioning And Electrical Connection
Operating Instructions Positioning and electrical connection LTS 38 The transfer press must be installed in a room with an electrical or lighting system approved by the local authorities, and which complies with the applicable electrical safety regulations. The existing power cable cross-sections must be suitable for the power requirements of the heat press of 2 KW is sufficient, preferably in a separate electric circuit. -
Page 10: Cap And Plate Set
Operating Instructions Cap and Plate Set LTS 38 For this model you may purchase easily interchangeable sets for converting the press: a. Cap set with a bent heating plate and bent supporting plate (cf. fig. a) b. Plate set (cf. fig. b) consisting of: a supporting plate sized 15 x 38 cm e.g. -
Page 11: Application Of The Transfer Press
It may only be operated by one person at a time. The specified maximum temperature should not be exceeded during operation. Lotus Press cannot be held liable for errors, accidents, damage etc. resulting from failure to fol- low these operating instructions. -
Page 12: Commissioning Of The Transfer Press
Operating Instructions Commissioning of the transfer press LTS 38 Putting the heat press into operation Before starting the machine, connect the black power cord to a 220 V power outlet. Turn on the heat press with the ON/OFF switch on the rear side of the instrument box (on the right side of the instrument) by setting it to I. - Page 13 Operating Instructions General programming of the TS2 900 control board: LTS 38 When the power supply is switched on, the buzzer of the board sounds for about one second and both displays show the number "888" (functional diagnostics), then for about one second the number 900, which refers to the program number, and immediately afterwards the tempera- ture detected by the probe and the set cycle time.
-
Page 14: Parameter Adjustment
Operating Instructions Parameter adjustment LTS 38 Standardprogramm (00) Please press button S for 25 seconds. The display confirms access to the programm by showing up 00 followed by flashing and an audible signal. To choose programs 01, 02 and 03 please press button S again. -
Page 15: Maintenance
Operating Instructions Maintenance LTS 38 Please read the instructions in this manual carefully before starting any maintenance or repair work. Maintenance and repairs must be carried out by an authorised service centre and/or specialised personnel using only original spare parts. -
Page 16: Errors And Possible Causes
Operating Instructions Errors and possible causes LTS 38 ERROR MESSAGE POSSIBLE CAUSE TROUBLESHOOTING The main switch is not lit - Lamp defective Replace the part - Power cable defective The heating plate does not - Control board defective go down... - Page 17 Operating Instructions LTS 38 ERROR MESSAGE POSSIBLE CAUSE TROUBLESHOOTING Short circuit Heating element defective Replace the part The press does not react - The plug is not inserted correctly - Plug properly plugged in after switching on - There is no electrical connection...
-
Page 18: Disassembly And Disposal
Operating Instructions Disassembly and disposal LTS 38 If the machine must be disposed of, disassemble it according to the applicable regulations and dispose of the individual parts separately. The replaced parts must not be dispersed in the envi- ronment but must be disposed of in accordance with the laws in force in the country where the machine is used. -
Page 19: Spare Part´s
Operating Instructions Spare Part´s LTS 38 38001 Basement 38002 Arm right 38002 A Arm left 38003 Lever 38004 Coupling rod 38004 A Pole 38005 Screw for pressure regulation 38006 Hand grip 38007 Tension spring 38008 Tension spring bold 38009 Rear cover... -
Page 20: Spare Part´s - Exploded View
Operating Instructions Spare Part´s - Exploded view LTS 38 All rights reserved, all indications without engagement, subject to modifications. LOTUS TRANSFERS PRESS SOLUTIONS GMBH & CO. KG Page 20 / 22... -
Page 21: Heating And Pressure Plate Assembly
Operating Instructions Heating and pressure plate assembly LTS 38 All rights reserved, all indications without engagement, subject to modifications. LOTUS TRANSFERS PRESS SOLUTIONS GMBH & CO. KG Page 21 / 22... -
Page 22: Electric Diagram
Operating Instructions Electric Diagram LTS 38 All rights reserved, all indications without engagement, subject to modifications. LOTUS TRANSFERS PRESS SOLUTIONS GMBH & CO. KG Page 22 / 22...
