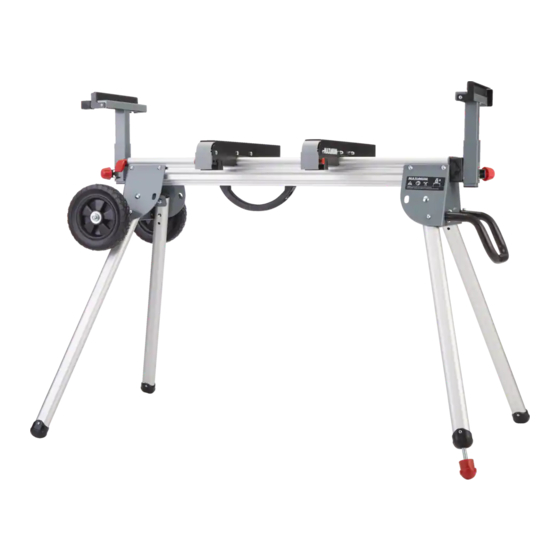

- Page 3 TABLE OF CONTENTS Parts list Assembly Specifications Safety guidelines Operation Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-888-670-6682. SAVE THESE INSTRUCTIONS. This manual contains important safety and operating instructions.
- Page 4 Model No.057-2330-8 | Contact us: 1-888-670-6682 A.Table x1 C. Wheel Axle x1 B. Bracket x1 E. Handle x1 D. Wheels x2 G. Locking Knobs x2 H. Blocker x2 I. Spring x2 F. Workpiece Supports x2 Bolt M6x15 x4 L1. M6 x6 Nut x8 L2.
- Page 5 Assembling the Saw Stand Carefully remove all parts included in the delivery from their packaging. Installing the Wheels (see Figs. 1 and 2) Fasten the bracket (B) to the table (A) with bolt (K) and nut (L1) . Put the wheel axle C through the hole of the bracket (B) (step ) Secure in place using flat washer (M3) (step...
- Page 6 Model No.057-2330-8 | Contact us: 1-888-670-6682 Installing the Handle (see Fig. 3) Insert the handle (E) onto the two tubular brackets on the end of the table (A) and secure in place with bolt (N) and nut (L1). Setting up the Saw Stand (see Figs. 4 and 5) Lay the saw stand upside down on the floor (legs facing upward).
- Page 7 Extending the Saw Stand (see Figs. 6and7) Loosen the locking knobs (step Pull the table extensions out to the desired length (step ) and secure the table extensions by tightening the locking knobs. Insert the workpiece supports (F) into the table extensions (step Adjust the height of the workpiece supports (F).
- Page 8 Model No.057-2330-8 | Contact us: 1-888-670-6682 Fastening the Mounting Brackets onto the Saw Stand (see Figs. 6 and 7) Push the locking pin (step ) and open the locking handle (step ). Align both mounting brackets (J) parallel to each other. Position the...
-
Page 9: Specifications
45 1/4'' (1.15 m) 8' 2" (2.5 m) WARNING The maximum load (power tool and workpiece) of the saw stand is 500 lb (226.8 kg). Do not overload the saw stand and do not use it as a ladder or scaffolding. -
Page 10: General Safety Rules
Model No.057-2330-8 | Contact us: 1-888-670-6682 General Safety Rules Read all warning notes and instructions enclosed with the saw stand and the power tool to be mounted. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. - Page 11 Hand tighten both locking handles. WARNING · Do not overload the saw stand. Always observe the maximum load of the saw stand and the two table extensions. · Always hold the workpiece firmly, especially the longer and heavier section.
- Page 12 Model No.057-2330-8 | Contact us: 1-888-670-6682 Sawing Workpieces of the Same Length (see Figs. 11 and 12) The material stop can be used for easily sawing workpieces to the same length. Tilt the material stop upward. Position the workpiece support...
- Page 13 Folding the Saw Stand with Power Tool (see Figs. 13 and 15) Lock the saw arm in the down position (step ) Push the table extensions into the table (steps First lock the locking knobs on the table in the down position and then tighten thelocking knobs (G) to lock the workpiece supports (F) and table extensions(step...
- Page 14 CAUTION! · The maximum load (power tool) of thesaw stand is 110 lb (50 kg) when moving . Do not overload the saw stand . · Do not stand vertically with tool attached .
- Page 15 (with the same model, or one of equal value or specification), at the sole discretion of the Maximum Canada authorised repair centre ( “Service Provider” ). We will bear the cost of any repair or replacement and any costs of labour relating thereto.
- Page 16 Model No.057-2330-8 | Contact us: 1-888-670-6682 by others (i.e. persons not authorized by the manufacturer), and any such unauthorized repairs or attempted repairs shall void this warranty in its entirety; this warranty will not apply to any parts other than original parts, except to the extent that the retailer or manufacturer or persons authorized by either of them have repaired or replaced them;...
- Page 17 This warranty applies for a period of 5 years from the date of original retail purchase, as indicated on the bill of sale. Neither the retailer, Maximum Canada, nor the manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or inability to use this product.
- Page 18 Model No.057-2330-8 | Contact us: 1-888-670-6682 Made in China Imported by MAXIMUM Canada Toronto, Canada M4S 2B8...
