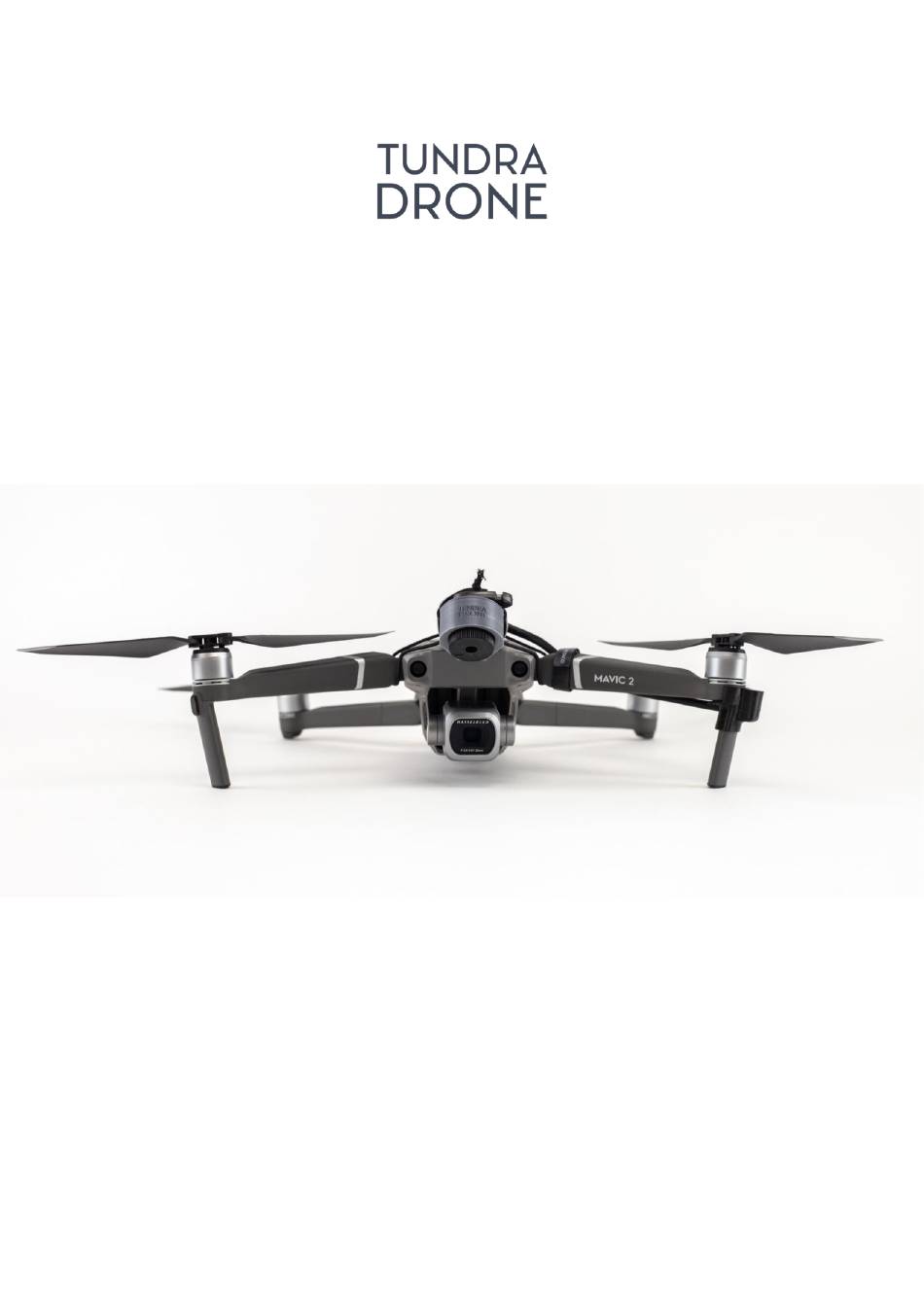

- Page 1 SIREN HERDER QUICK START GUIDE Updated: 11.07.2022...
-
Page 2: Using This Manual
7. How to use the DJI Remote controller with the Tundra Drone Siren herder 8. Mount the Tundra Drone Siren herder unit on the aircraft and prepare for takeoff 9. How to unmount and store the Tundra Drone Siren herder 10. - Page 3 The Drone Pilot understands that the use of a Product from Tundra Drone on drones may entail a higher risk due to the fact that mounting of additional drone equipment on the drone may affect the performance of the drone itself, in both short and long term.
-
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Use with caution: • The Tundra Drone Siren Herder outputs a very loud sound that may harm or damage your hearing permanently. • Never use it stationary without any hearing protection for you and people around you. Always use hearing protection when operating it in close proximity (closer than 20 meters). -
Page 5: Product Overview
PRODUCT OVERVIEW Velcro for securing cable Sound output Siren activator module Velcro for securing rubber band Rubber band for Cord lock 3-point-mounting mechanism USB-C port for Siren activator module Page 5 / 23... -
Page 6: Charging The Battery
CHARGING THE BATTERY Use a USB-C-cable to charge the Tundra Drone Siren herder’s battery before first use. Charging time for empty battery can take up to 3 hours, depending on the type of charger you use. Indicator lights Green light Power is on ON. - Page 7 PREPARE THE DJI REMOTE CONTROLLER’S DJI GO 4-APP BEFORE FIRST FLIGHT 1. Connect your smart phone to the DJI Mavic 2 Remote controller and turn ON the Remote controller. 2. Open the DJI GO 4-app from your smart phone. 1. Go to setting by tapping (General settings button) Page 7 / 23...
- Page 8 3. Tap on the menu on the right side of «C2» and «scroll» up till you find the «Turn on/off Head LEDs» option; Tap on that to program this function to the «C2» button. 4. You have now successfully prepared the DJI GO 4-app for first flight with the Tundra Drone Siren herder. Page 8 / 23...
- Page 9 HOW TO USE THE DJI REMOTE CONTROLLER WITH THE TUNDRA DRONE SIREN HERDER 1. Prepare the DJI Mavic 2 aircraft for flight. 2. Power up the aircraft and make sure that the DJI GO 4-app connects to the aircraft. 3. Turn ON/OFF the aircraft’s front LEDs by pressing «C2» button on the DJI Remote controller.
- Page 10 MOUNT THE TUNDRA DRONE SIREN HERDER UNIT ON THE AIRCRAFT AND PREPARE FOR TAKEOFF Be sure that the drone is turned OFF before mounting the Tundra Drone Siren herder on the aircraft. Follow the mounting instructions below. Release the Velcro holding the rubber band for 3-point mounting mechanism.
- Page 11 Pull out the rubber band in full length to the right. Lift the drone’s front arm and place the released rubber band over one of the drone propeller arms, as shown in the illustration above. Be careful not to damage the propeller when mounting the unit. Remove the propeller if needed.
- Page 12 Pull out the rubber band in full length to the left side. Lift the drone´s left front arm and place the released rubber band over the drone propeller arm, as shown in the illustration. Be careful not to damage the propeller when mounting the unit. Remove the propeller if needed.
- Page 13 Place the released rubber band over the left drone propeller arm, as shown in the illustration. Place the Tundra Drone Siren herder’s bottom edge against the drone roof’s edge. Page 13 / 23...
- Page 14 Tighten the rubber band on both sides by pulling full length of the rubber band towards the cord lock. Tighten the rubber band and use the cord lock to lock the rubber band in place. Make sure the rubber band is tight on both sides and ensure it cannot move in any direction.
- Page 15 Use the Velcro to securely fasten the rubber band in place. Find the Siren activator module. The design of the Siren activator module may vary depending by the aircraft model. Page 15 / 23...
- Page 16 Release the Velcro band on the Siren activator module. Place the Siren activator module next to the drone’s front leg. Page 16 / 23...
- Page 17 Lift the drone’s front leg and place the Siren activator module at the bottom. Slide the Siren activator module upwards. Page 17 / 23...
- Page 18 Connect the Siren activator module to the Siren herder´s USB-C port. Do NOT connect the Siren activator module to the USB-C port before you have slid it over the drone’s front LED. The Siren herder may be activated and produce a loud siren sound if it’s exposed to light. This could harm your hearing.
- Page 19 The Siren activator module is now connected the USB-C port. Release the Velcro band. Page 19 / 23...
- Page 20 Fasten the velcro band and make sure it holds the cable tight against the drone’s propeller arm. Make sure the propeller does not get in touch with the cable or any other objects. After securing the cable with the Velcro, the propeller should be able to spin around freely without touching the cable or other objects.
- Page 21 Ensure the propeller can spin freely above and around without touching the cable or anything other objects. Do NOT turn on the drone while doing this procedure! Page 21 / 23...
- Page 22 If the propeller cannot spin around freely or is touching any objects or cables, please repeat the steps above until the propeller can spin freely around without touching any objects. Your aircraft is now ready for take-off with the Tundra Drone Siren herder. Fly safely! Page 22 / 23...
- Page 23 HOW TO UNMOUNT AND STORE THE TUNDRA DRONE SIREN HERDER 1. Turn off your drone. Remove propellars if needed. 2. Follow the “How to use the DJI Remote controller with the Tundra Drone Siren herder” procedure in reversed order to unmount the unit from the aircraft.
