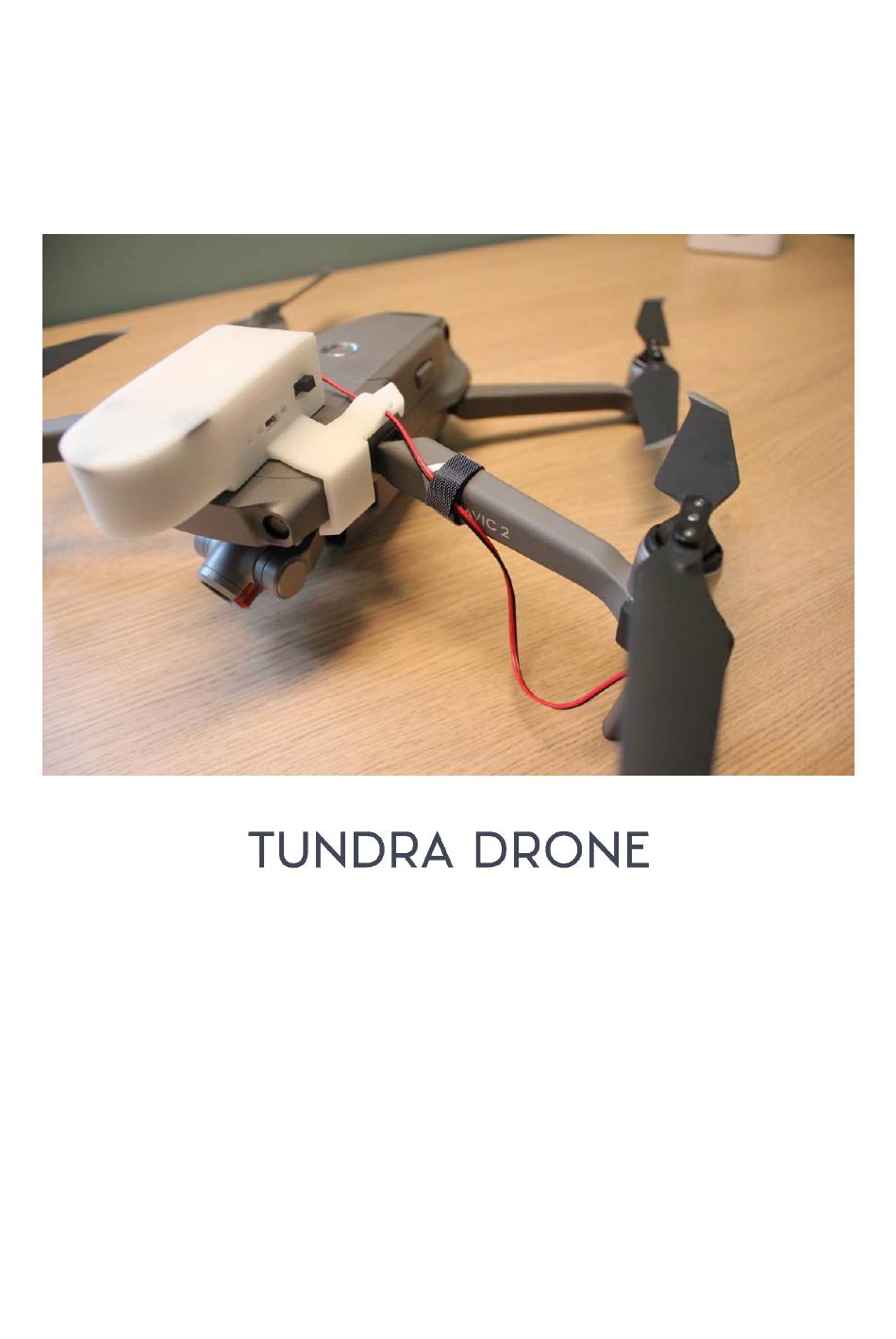

- Page 1 Siren Herder Quick start guide...
- Page 2 Siren Herder The Tundra Drone Siren Herder is a drone accessory with siren sound for DJI Mavic drones. It features a 107dB fast pulse siren tone and is easily controlled from remote DJI remote control. The Siren Herder is quick to mount and unmount without any physical modifications of your drone. The Siren Herder is equipped with internal rechargeable battery that can be charged using the USB micro cable that was delivered with your DJI drone.
- Page 3 Preparing the DJI Go app for use with the Siren Herder 1. Tap the three dots 2. Tap on the radio controller symbol. 3. Tap on the field on the right side of “C2” and scroll up till you find «Turn on/off Head LEDs»...
- Page 4 Charging the battery Use the charger and micro USB cable provided with your DJI drone to charge the Siren Herders battery. If the charging indicator is not lit then the battery is already fully charged. Charging time for empty battery can take up to 3 hours, depending on the charger you use. How to use 1.
- Page 5 2. Be sure that the Siren Herder is turned off and mount it to the drone by sliding it backwards on the drone as shown below. Slide it from front to back «CLICK» Slide until clips lock.
- Page 6 3. Slide the remote sensor on the front left arm below the propeller. The remote sensor should cover the LED on the drone. The cover has sliding guides shown with black arrows below (only mavic 2 version) that should go into the lower trace shown with orange arrow below. Important: Make sure that the remote sensor is on the lower trace (only mavic 2 version), otherwise it will touch the motor.
- Page 7 4. Use the Velcro to secure the remote sensor cable to the front left arm. 5. Turn on the power switch on the Siren Herder by sliding the power switch forwards.
- Page 8 Never use the Siren Herder indoors Never use it stationary without hearing protection for you and those around you Do not activate the Siren Herder before you have flown at least 20m away Do not use in rain, snow or wet weather conditions...
