Axon Synapse ASV22 Manual

12 bit composite / yc to serial digital converter with sdi input
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ASV22
12 bit Composite / YC to Serial Digital Converter
with SDI Input
____________________________________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Synapse ASV22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axon Synapse ASV22

Summary of Contents for Axon Synapse ASV22

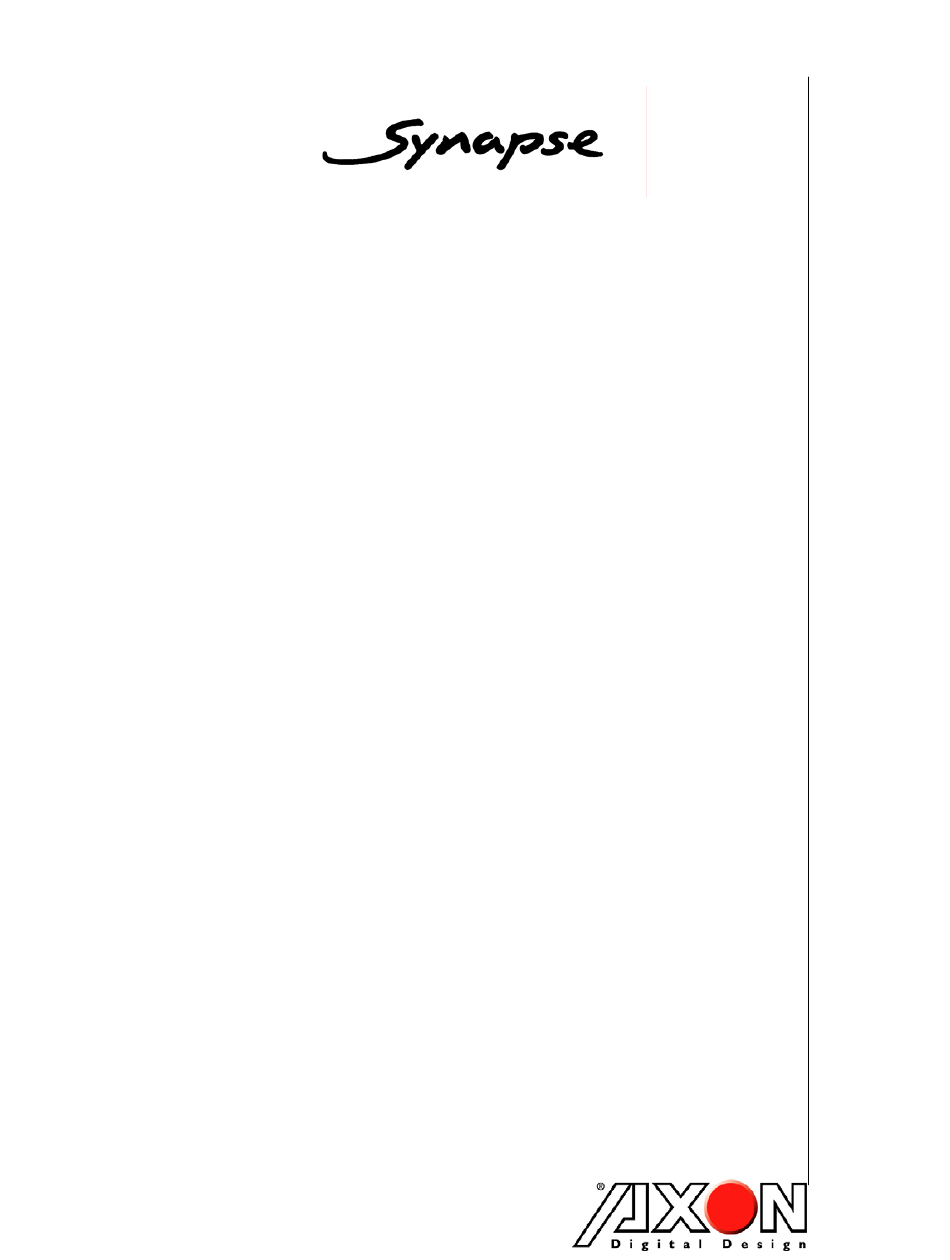

  • Page 1 ASV22 12 bit Composite / YC to Serial Digital Converter with SDI Input ____________________________________________...
  • Page 2 TECHNICAL MANUAL 12 bit Composite / YC to Serial Digital Converter with SDI Input Lange Wagenstraat 55 NL-5126 BB Gilze The Netherlands Phone: +31 161 850 450 Fax: +31 161 850 499 E-mail: Info@axon.tv Web: www.axon.tv...
  • Page 3 ● NEVER operate this product in an explosive atmosphere. Warranty: Axon warrants their products according to the warranty policy as described in the general terms. That means that Axon Digital Design BV can only warrant the products as long as the serial numbers are not removed.

  • Page 4: Table Of Contents

    Table of Contents Chapter 1 Introduction to Synapse An introduction to Synapse Local Control Panel Remote Control Capabilities Chapter 2 Unpacking and Placement Unpacking Placing the card Chapter 3 A Quick Start When powering-up Default settings Changing parameters and settings Front Panel Control Example of changing parameter using Front Panel control...

  • Page 5: Introduction To Synapse

    High density, intuitive operation and high quality processing are Synapse key features of this system. Synapse offers a full range of converters and processing modules. Please visit the AXON Digital Design Website at www.axon.tv to obtain the latest information on our new products and updates.

  • Page 6: Unpacking And Placement

    2 Unpacking and Placement Unpacking The Axon Synapse card must be unpacked in an anti-static environment. Care must be taken NOT to touch components on the card – always handle the card carefully by the edges. The card must be stored and shipped in anti-static packaging. Ensuring that these precautions are followed will prevent premature failure from components mounted on the board.

  • Page 7: A Quick Start

    3 A Quick Start When Powering-up On powering up the Synapse frame, the card set will use basic data and default initialisation settings. All LEDs will light during this process. After initialisation, several LEDs will remain lit – the exact number and configuration is dependant upon the number of inputs connected and the status of the inputs.

  • Page 8: Front Panel Control

    Example of With the display as shown below changing parameters using RRC18 [Select Card] front panel control >S01=SFS10 Pressing the ► selects the SFS10 in frame slot 01. The display changes to indicate that the SFS10 has been selected. In this example the Settings menu item is indicated. SFS10 [Select Menu] >Settings Pressing the ►...

  • Page 9: Synapse Setup Software

    Synapse modules from a PC, either locally or remotely. The Software software enables communication based on TCP/IP between the Setup PC and Synapse frames/modules. Each Synapse frame is addressed through its rack controller’s unique IP address, giving access to each module, its menus and adjustment items.

  • Page 10: The Asv22 Card

    External Freeze allows the ASV22 to freeze the output signal. This is performed manually by switching to freeze input. Tracking output A tracking output is provided by the ASV22. This output provides a timing pulse for use with other Axon Synapase devices, e.g. for Audio Synchronisation with a DIO24.
  • Page 11 The ASV22 can be used with the BPL01 back plane. Miscellaneous The ASV22 cards fit into the Axon SFR04 & SFR18 rack. LED’s on the front of the board indicate the presence Video Reference, Input signal, Connection & Processor Errors.

  • Page 12: Settings Menu

    5 Settings Menu Introduction The settings menu displays the current state of each setting within the ASV22 and enables the item to be changed or adjusted. Settings can be changed using the front panel of the Synapse frame (SFR18 or SFR04) or Synapse Setup software. Please refer to chapter 3 for information on the Synapse front panel control and Synapse Setup software.
  • Page 13 Standard This item controls the detection the input standard. The settings of Standard are Auto detection, 625, 525. The default setting is Auto. Having detected or set a standard, the ASV22 automatically utilises the settings in the menus 625-Stndrd or 525-Stndrd.
  • Page 14 Input-Gain The input gain can be set to Fixed, Auto-Brst, Auto-Sync or Variable. The default setting is Fixed. In Fixed mode the input stage is static and expects a compliant input signal with the correct amplitude. In Auto-Brst an Automatic Gain Control is enabled, and the gain is based on the color subcarrier’s amplitude.
  • Page 15 Note: Please refer to the following description of Ref input for synchronization and timing information. V-Delay V-Delay setting allows adjustment of the vertical phase of the output signal with respect to the selected reference input. The V-Delay setting gives a delay in addition to the reference timing.
  • Page 16 Ext-Frz Ext-Freeze enables the external freeze input. GPI contact closure J9 of the BPL01. the settings of Ext-Freeze are Disabled and Enabled. The default setting is Disabled. Y-Gain Y-Gain controls the Luminance gain of the built-in processing amplifier. The control range is between 0% and 150%.The default setting is 100%.
  • Page 17 added to the existing audio-groups in the ancillary data space of the SDI stream Emb-Mode has three settings, Off, Append, and Overwrite. The default setting is Off. In Overwrite mode all existing audio groups will be overwritten and the processes group is inserted. In Append mode additional audio channels will be added.
  • Page 18 AddOn_C1/2, AddOn_C3/4 , AddOn_D1/2 , AddOn_D3/4. The default setting of Emb-B3/4 is AddOn_B3/4.

  • Page 19: Status Menu

    6 Status Menu Introduction The status menu indicates the current status of each item listed below. Analog-Inp This status item indicates the presence of a valid analog video signal at the input. Analog-Inp indicates if an input signal is NA (not available) or Present. SDI-Input This status item indicates the presence of a valid Serial video signal at the SDI input.
  • Page 20 GrpInUse_In GrpInUse_In indicates the audio groups that are already present in the incoming SDI signal. The indication of a group, or groups being present is as follows, Display ____ 1___ _2__ 12__ __3_ 1_3_ _23_ 123_ ___4 1__4 _2_4 12_4 __34 1_34 _234...
  • Page 21 Audio-CH_B1 Audio-CH_B1 displays the status of audio channel B1. The status can be NA (not available) or Ok. Audio-CH_B2 Audio-CH_B2 displays the status of audio channel B2. The status can be NA (not available) or Ok. Audio-CH_B3 Audio-CH_B3 displays the status of audio channel B3. The status can be NA (not available) or Ok.

  • Page 22: Events Menu

    7 Events Menu Introduction An event is a special message that is generated on the card asynchronously. This means that it is not the response to a request to the card, but a spontaneous message. What is the Goal of The goal of events is to inform the environment about a changing condition on the card.
  • Page 23 2) A tag that also shows what happens, but with a predefined number: e.g. 1 (= loss of input), 2 (= loss of reference), 129(= 1+128 = return of input). For a list of these predefined tags see the table on the next page. 3) A priority that marks the importance of an event.
  • Page 24 The Priority The priority is a user-defined value. The higher the priority of the alarm, the higher this value. Setting the priority to Zero disables the announcement of this alarm. Alarms with priorities equal or higher than the Error Threshold setting of the RRC will cause the error LED on the Synapse rack front panel to light.

  • Page 25: Led Indication

    8 LED Indication Error LED The error LED indicates an error if the internal logic of the ASV22 card is not configured correctly or has a hardware failure. Input LED This LED indicated the presence of a valid video signal on the input.

  • Page 26: Block Schematic

    9 Block Schematic ASV22 SDI OUT + SDI IN EMBEDDED AUDIO Frame Embedd Embedd Synchro- nizer SDI OUT + Proc- EMBEDDED AUDIO Y/CVBS 12 Bit SDI OUT + Composite EMBEDDED AUDIO Decoder INSERT SDI OUT + Auto format-ref EMBEDDED AUDIO FREEZE INPUT TRACKING OUT µP...

  • Page 27: Connector Panel

    10 Connector Panel The ASV22 can be used with the following backplane: BPL01, !Unused inputs and outputs must be terminated with the correct impedance! SDI IN ASV20...
