20 Drawer slot panel (P4)
21 Drawer bottom (P5)
22 Drawer handle
23 Drawer screw (40mm)

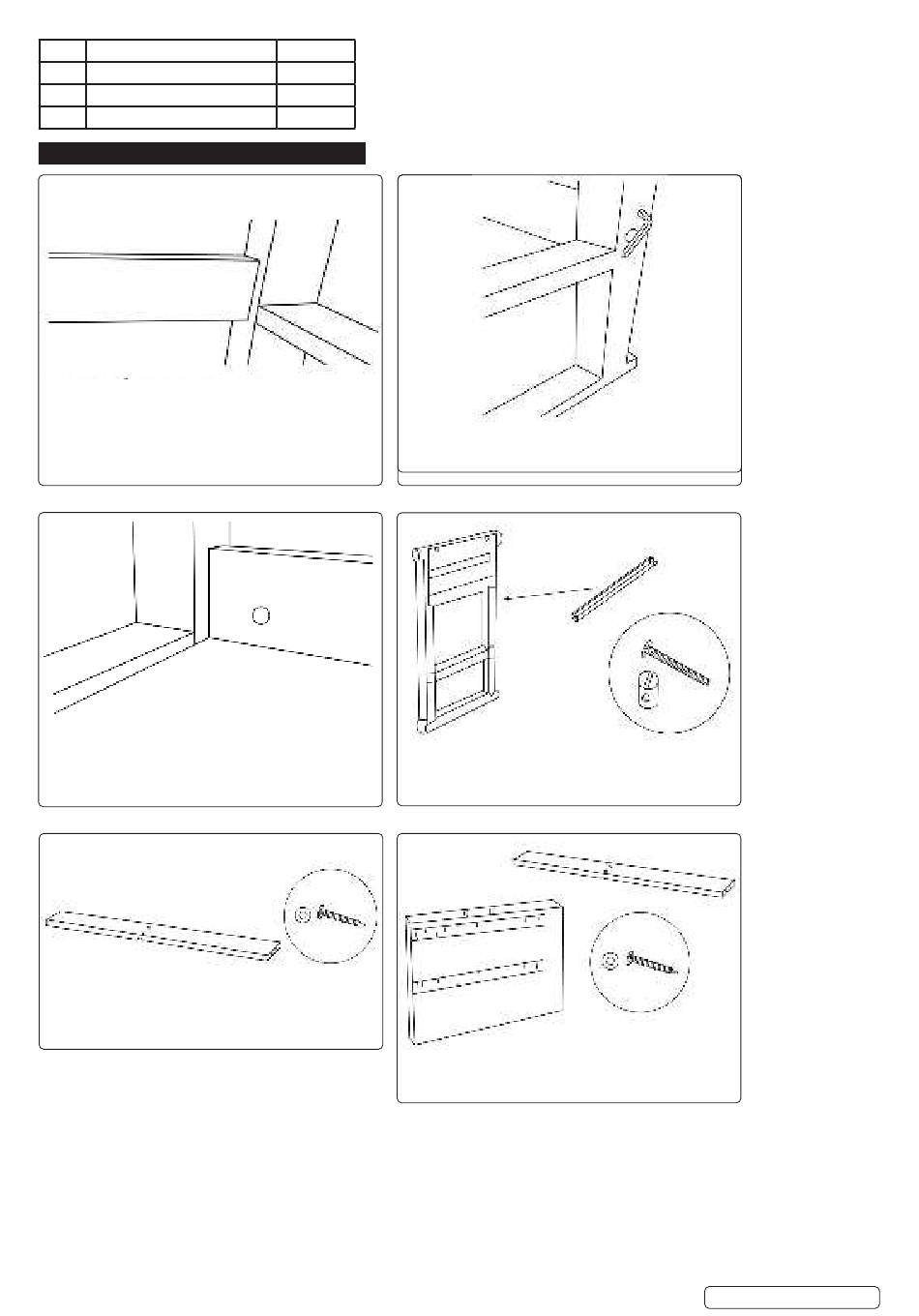

5. ASSEMBLY
Step 1: Insert the cross nut with groove (8) into the
frame strut (3). Align the cross nut so that the groove is
horizontal.
5.1.
5.2.
5.3.
5.4.
Step 3: After both feet have been attached to the frame
strut, the shelf (2) is pushed into the groove.
.
Step 5: The lower support (16) is attached to the front with
4 pcs of 35mm screws (14) at both ends of the feet.
© Jack Sealey Limited
4
4
4
8
Step 2: Fasten the frame to the foot (4) with 2pcs of 90mm
screws (7).
Step 4: Align the second frame strut (3) and fasten it with
the connecting nuts with groove (8) and 2 pcs of 90mm
screws (7) on the foot (4). The shelf must snap into the
groove of the frame strut.
Step 6: The lower support(16) is also attached to the
partition wall with rails (15) using 2 pcs of 35mm screws
(14).
