NOTE: Please check contents and read directions carefully before assembly. If any items are
missing or damaged, do not take the product back to the store. Call Moon Valley customer
service at 313-766-4950 and we will correct the problem as promptly and as efficiently as
possible. Also, checking or cracking of the logs is a natural part of the drying aspect of cedar.
This does not affect the structural integrity of the wood. This natural occurrence enhances the
Tools Needed: Rubber Mallet or Hammer, ½" Socket and Socket Wrench, Drill or Screwdriver
M-120 Tete-a-Tete Swing Assembly Instructions
rustic beauty of the product.

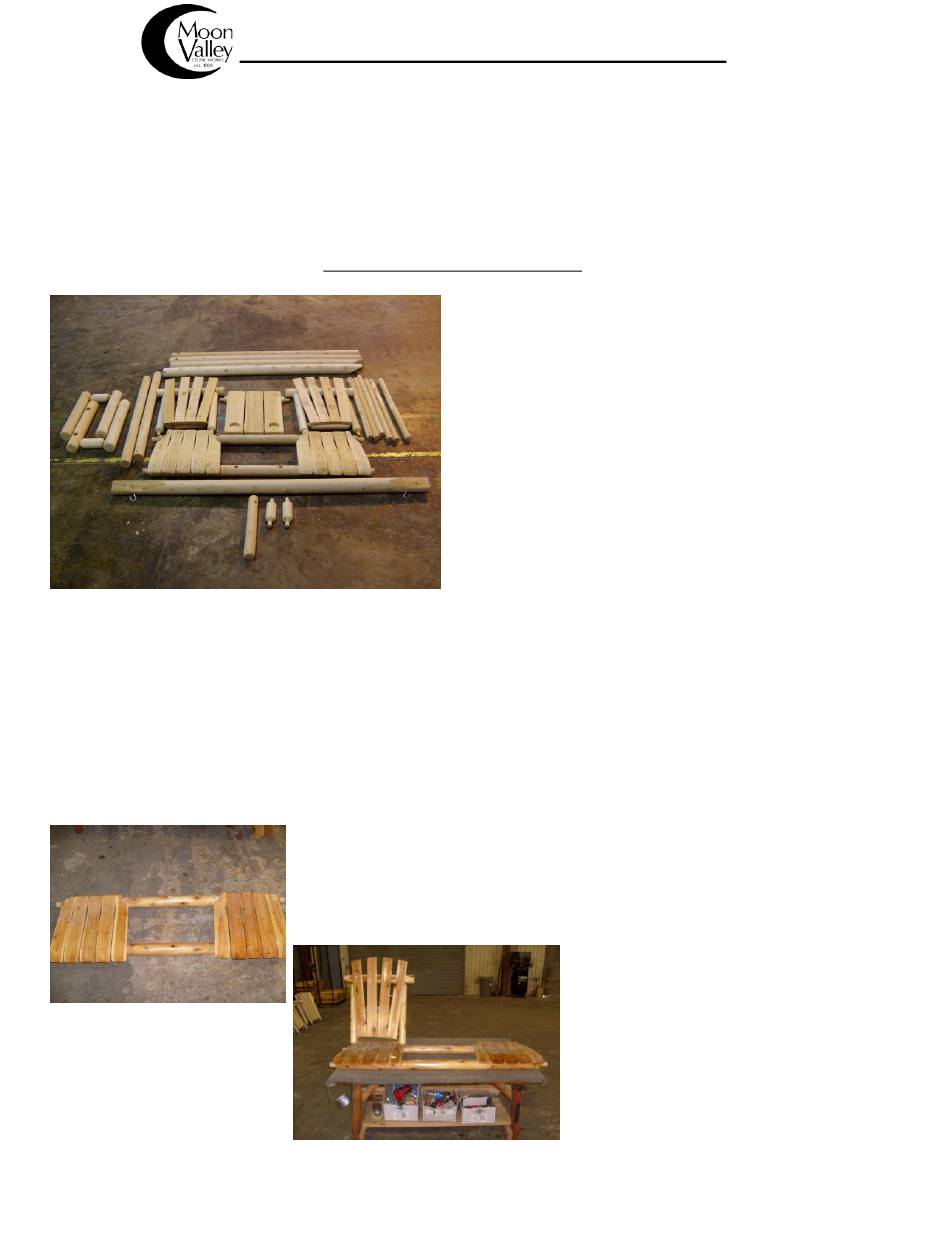

Tete-a-Tete Swing Components
1. Lay pre-assembled seat bottom onto flat surface. Insert pre-
assembled seat back into pre-drilled holes. Note: Each seat back
has a pre-drilled hole on one side. Be sure these holes face inward
on both seats.
(1) Pre-Assembled Seat Bottom
(2) Pre-Assembled Seat Backs
(4) Swing Legs
(1) Swing Frame Top Pole (w/ attached hooks)
(6) 35" Braces
(2) Swing Arm Assemblies
(2) Swing Hangers
(2) 9" Dowels
(1) Pre-Assembled Table Top
(1) 18" Table Brace
(3) 3 ½" Lag Bolts
(4) 5" Lag Bolts
(1) 2 ½" Lag Bolt
(12) 4" Lag Bolts
(2) 7 ½ x 5/16" Machine Bolts
(8) 5/16" Washers
(2) 5/16" Nuts
(14) 2" Screw
(16) ¼" Washers
(1) Square-Head Bit
Advertisement
Table of Contents
Related Manuals for Moon Valley M-120
Summary of Contents for Moon Valley M-120
- Page 1 NOTE: Please check contents and read directions carefully before assembly. If any items are missing or damaged, do not take the product back to the store. Call Moon Valley customer service at 313-766-4950 and we will correct the problem as promptly and as efficiently as possible.
- Page 2 2. Insert pre-assembled table top into hole on each side of seat back (as shown). Next, repeat Step 1 for the remaining seat. Be sure that the table top is inserted into both seat backs before securing them to seat bottom. Use 2” screws at both insertion points to attach seat back to seat bottom (as shown).
- Page 3 6. Attach both swing arm assemblies to swing seat. Align the two doweled ends of swing seat with the two holes in the swing arm assembly. Tap arms into place using rubber mallet or hammer. If using a hammer, be sure to pad impact area to avoid damage to the product.
- Page 4 If the problem persists, please call Moon Valley customer service at 313-766-4950. Thank you for your Moon Valley purchase and we hope that you enjoy your Tete-a-Tete Swing. To view other Moon Valley products, please contact your local dealer or visit us at www.moonvalleycedarworks.com.
