NOTE: Please check contents and read directions carefully before assembly. If any items are missing or damaged, do not take the
product back to the store. Call Moon Valley customer service at 313-766-4950 and we will correct the problem as promptly and
as efficiently as possible. Also, checking or cracking of the logs is a natural part of the drying aspect of cedar. This does not affect
the structural integrity of the wood. This natural occurrence enhances the rustic beauty of the product.
A
R
B
D
A
B
R
J
I
P
M
Q
Tools Required: Rubber Mallet (or Hammer), Drill (or screwdriver) w/ Square-Head Bit, Ratchet with
9/16", 7/16", 11mm and ½" Sockets, Tape Measure.

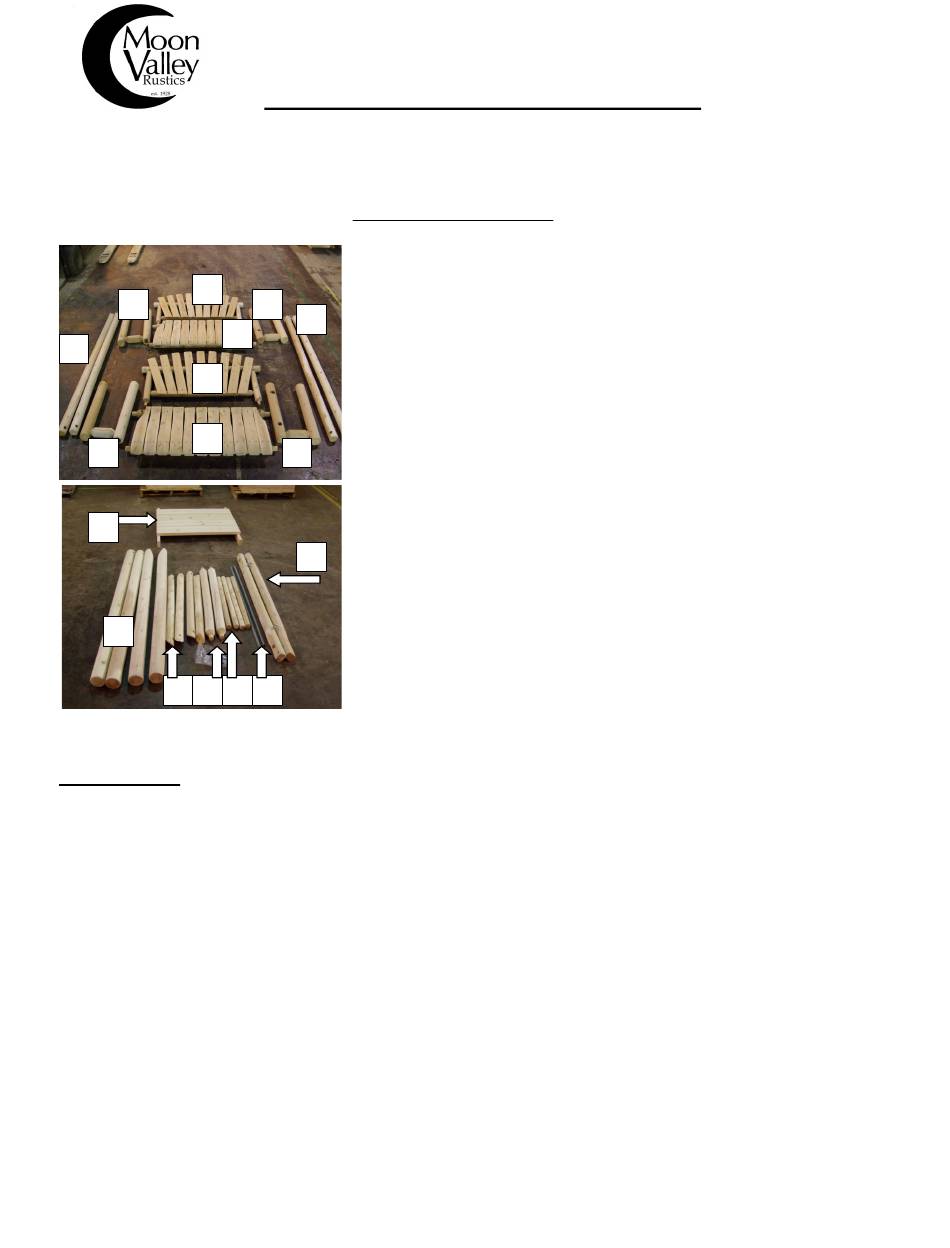

M-200 Double Glider Assembly Instructions
Double Glider Components
(2) Pre-Assembled Seat Backs (A)
(2) Pre-Assembled Seats Bottoms (B)
(4) Arm Assemblies (R)
R
(4) Swing Hangers (D)
D
(2) Doweled Top Poles (M)
(2) Top Poles w/ Metal Hangers (N)
(4) Angle Braces (P)
(4) 35" Braces (Q)
(4) Swing Frame Legs (I)
(1) Glider Platform (J)- Assembly Instructions Attached
R
(2) Galvanized Metal Platform Support Pipes (K)
7 ¾" x 3/8" Machine Bolts (C)
5" Lag Bolts(F)
4" Lag Bolts (G)
3/8" Washers (U)
N
3/8" Nuts (X)
2" Square-Head Screws (O)
3 ½" Lag Bolts (H)
4" x 1/4" Machine Bolts (E)
1/4" Washers (W)
1/4" Nuts (Z)
Plastic Spacers (L)
K
Square-Head Screw Bit
See attached sheet
See attached sheet
See attached sheet
See attached sheet
See attached sheet
See attached sheet
See attached sheet
See attached sheet
See attached sheet
See attached sheet
See attached sheet
See attached sheet
Advertisement
Table of Contents
Related Manuals for Moon Valley M-200
Summary of Contents for Moon Valley M-200
- Page 1 NOTE: Please check contents and read directions carefully before assembly. If any items are missing or damaged, do not take the product back to the store. Call Moon Valley customer service at 313-766-4950 and we will correct the problem as promptly and as efficiently as possible.
- Page 2 Section 1: Frame Assembly Step 1: Insert doweled ends 51” top poles (M) into the pre-drilled holes on the Metal Hanger facing up 72” top poles (N) (w/ metal hangers). Be sure that metal hangers are facing up like in the photo. Attach these pieces together with one 2” screw (O) into each insertion point (as shown).
- Page 3 Section 2: Swing Seat Assembly Step 7: Attach both swing arm assemblies (R) to swing seats (B). Make sure the side of the swing arm assembly is with the dowel is facing towards the front of the seat. Align the two doweled ends of swing seat (B) with the two holes in the swing arm assembly (R).
- Page 4 Without Double Glider Canopy Thank you for your Moon Valley purchase and we hope that you enjoy your Double Glider. To view other Moon Valley products, or to purchase a Double Glider Canopy, please contact your local dealer or visit us at www.moonvalleyrustics.com.
- Page 5 Attach using four of the 2½ screws per board. Place the last three 2x10 boards approximately ¼ inch apart from each other horizontally in a row and fasten with 2 ½ inch screws. Moon Valley Rustics 4658 South Custer Rd, Monroe, Mi 48162 Phone Number: (313) 766-4950 www.moonvalleyrustics.com...
