IBM Travelstar 10GT Quick Installation Manual

IBM storage products

Quick installation guide

Travelstar 10GT
AT/IDE
Models: DCXA-210000
DCXA-208100
Handling precautions
1. Do not cover the breather hole! Covering the
breather hole may result in loss of data.
2. Do not press on the drive! Do not apply any force
to the drive during handling or installation.
3. Always handle the drive with care to prevent
damage from shock, vibration, or electrostatic
discharge (ESD).
4. Do not open the static-protective bag containing the
drive until required. Static electricity can damage the
drive.
5. Turn off and unplug your computer. Remove the
cover.
6. When you are installing the drive, touch the
static-protective package containing the drive to a
grounded, unpainted metal surface for at least two
seconds. (This drains static electricity from the
package and from your body.)
7. Handle the drive carefully by the edges. Do not
touch any exposed printed circuit board.
8. Save your drive packaging material including the
ESD bag in the event that the drive has to be
returned. Place the drive in an anti-static bag before
placing it in the shipping container. The warranty will
be void if the drive is not returned in IBM approved
packaging.
IBM Hard Disk Drive Technical Support Center
Quick installation procedure
Note: It is advisable to backup all data before
proceeding with the installation.
If your system BIOS cannot handle large capacity
drives (over 540 MB), you may need to use a disk
overlay program such as Ontrack's Disk Manager.
The following procedure uses the Ontrack Disk
Manager software. Information on obtaining a copy of
Ontrack's Disk Manager can be found on the Internet
at www.ibm.com/harddrive.

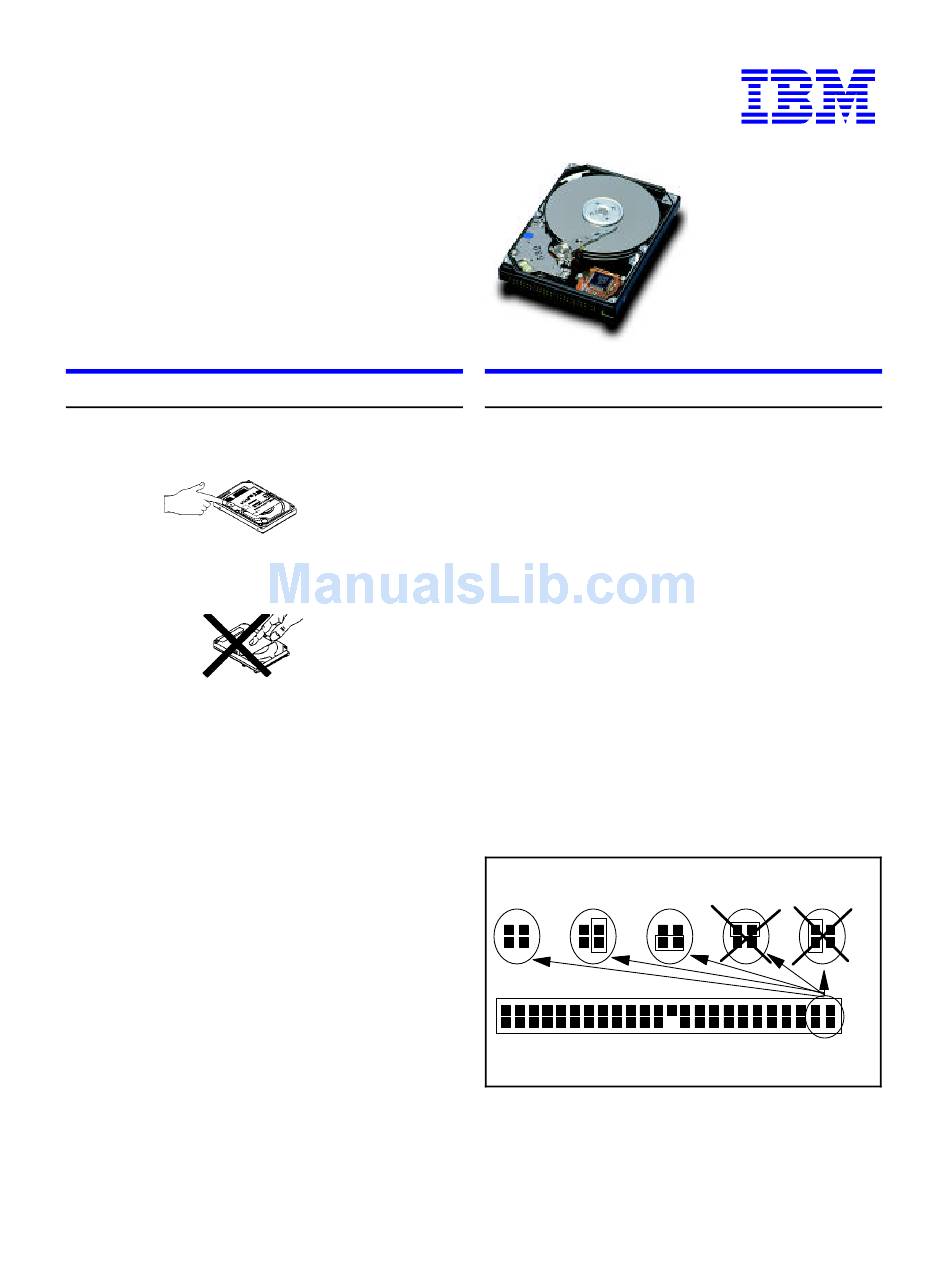

Setting the jumpers
1. In a one drive system, configure your new drive as
Master (Device 0) with no jumpers installed.
2. In a two drive system, one drive must be
designated as the Master, the other as the Slave
(Device 1).
3. When installing the new drive as a Slave, check the
Master drive to determine if a jumper change is
required to indicate that a Slave drive is present.
4. Consult your manual to see if your computer
supports Cable Select before choosing this option.
No Jumper Jumper Pos-1
(Master) (Slave)
Note: Pin 20 is left blank for secure connector insertion.
Page 1
Never Attach A
Jumper Pos-3 Never Attach A
Jumper Here!
(Cable Select) Jumper Here!
version 2.0
