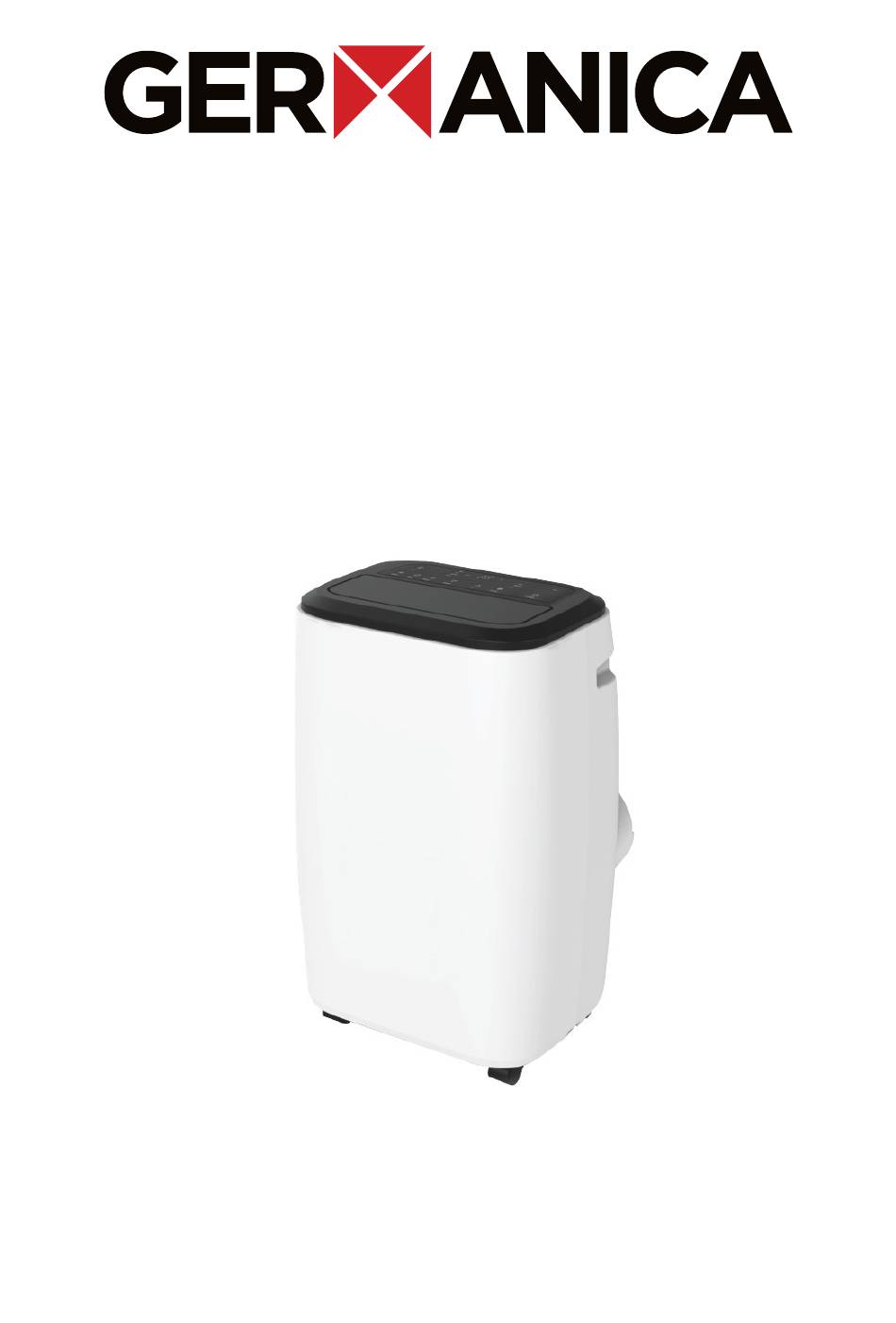

- Page 1 3.3kW PORTABLE AIR CONDITIONER GPA33KW INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Product Overview Accessories List Control Panel Remote Control Installation Window Kit Installation Instructions Using the Portable Air Conditioner Cooling Mode Dehumidifying Mode Fan Mode Auto Swing Sleep Mode Timer Operation Water Full Alarm Cleaning and Maintenance Troubleshooting Specifications Last Page Customer Helpline... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the portable air con. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. - Page 5 GENERAL SAFETY INSTRUCTIONS (Cont.) • Do not cover the ventilation openings of the product with items such as newspapers, tablecloths, curtains etc or insert objects into the slots available on the products. As this could result in the product temperature rising and could cause a fire. •...
- Page 6 GENERAL SAFETY INSTRUCTIONS (Cont.) • This appliance is intended for air conditioning indoor domestic environments. It is not suitable for commercial, industrial or trade use. Do not use it for any other purpose (such as drying clothes, cooling food, etc.), and only use it as described in this manual. •...
- Page 7 GENERAL SAFETY INSTRUCTIONS (Cont.) • There must be a clearance of at least 30cm between the walls, furniture, curtains or any other obstacles (refer to below image). Maintaining this minimum 30cm clearance is essential; failure to keep that distance can result in the unit malfunctioning or causing injury.
- Page 8 GENERAL SAFETY INSTRUCTIONS (Cont.) WARNING: • Do not expose the appliance to high heat, sparks and open flames. • Do not pierce or burn the appliance. • Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
-
Page 9: Product Overview
PRODUCT OVERVIEW... -
Page 10: Accessories List
PRODUCT OVERVIEW (CONT.) ACCSESORY PARTS... -
Page 11: Control Panel
PRODUCT OVERVIEW (CONT.) -
Page 12: Installation
INSTALLATION When the portable air conditioner is operating, the unit draws in indoor air and exhausts hot air out of the room to complete the air exchange. CAUTION: The window kit must be installed before operating the unit. When the unit is in FAN MODE, no outdoor air exchange takes place. The window kit and exhaust to not need to be installed when the unit is used as a fan. - Page 13 INSTALLATION (Cont.) Please follow the below steps in order to setup your portable air conditioner. Fit the exhaust hose and housing connectors to the ends of the flexible air exhaust hose, twisting them into place Insert the fixing clip of the housing connector into the openings at the back of the air conditioner.
-
Page 14: Window Kit Installation
INSTALLATION (Cont.) Installing the window kit Your window kit has been designed to fit most standard ‘horizontal’ and ‘vertical’ window applications, but for certain types of windows it may be necessary for you to improvise/modify some aspects of the installation procedure. Adjust the window slider to the length of a horizontally (or height of a... -
Page 15: Instructions
INSTRUCTIONS Using the portable air conditioner - Before switching the unit on for the first time, make sure you have properly installed the exhaust hose and window kit inserted two AAA size batteries into the remote control. - Find a place for the air conditioner where there is a power outlet nearby. Install the exhaust hose through the window kit so that the hot air is expelled... -
Page 16: Cooling Mode
INSTRUCTIONS (Cont.) Cooling Mode - Press the MODE button until the cooling mode indicator illuminates. - Press the DOWN (-) or UP (+) button repeatedly to set the desired room temperature between 16°C and 31°C. - Press the SPEED button to select the fan speed: high, medium or low. NOTE: For best cooling efficiency, make sure that: * Curtains/blinds are closed if your room is directly exposed to the sun. -
Page 17: Water Full Alarm
INSTRUCTIONS (Cont.) On-Timer Setting - With the unit switched off (but power supplied), press the TIMER button and then use the UP and DOWN buttons to select the number of hours after which you want the unit to turn on. The selected number of hours will be shown on the display. -
Page 18: Cleaning And Maintenance
CLEANING & MAINTENANCE Cleaning the air conditioner Wipe the housing with a damp cloth, moistened with water and a little mild detergent. Dry with a soft, dry cloth. CAUTION: Do not wash the unit directly. Do not use any solvent or alcohol based cleaning agent on any surface. -
Page 19: Troubleshooting
TROUBLSHOOTING If you experience problems with your portable air conditioner, or it appears not to be operating correctly, check the information below for solutions to common problems. If none of the solutions offered help you solve your problem, please contact our support centre for advice on info@ayonz.com Do not attempt to repair the appliance yourself! -
Page 20: Specifications
SPECIFICATIONS Power Supply 220-240V ~ 50Hz POWER 1320 W Rated Power CURRENT 5.9 A Capacity COOLING 3300W (3.3kW) 30 kg Weight GROSS 33 kg Indoor Dishcharge Air-Flow DISCHARGE ≥ 380m3/h TYPE R290 Refrigerant Type QUANTITY 226 g Noise Level ≤ 65dB(A) Dimensions UNIT 440 (h) x 357 (w) x 690 (d) mm...
