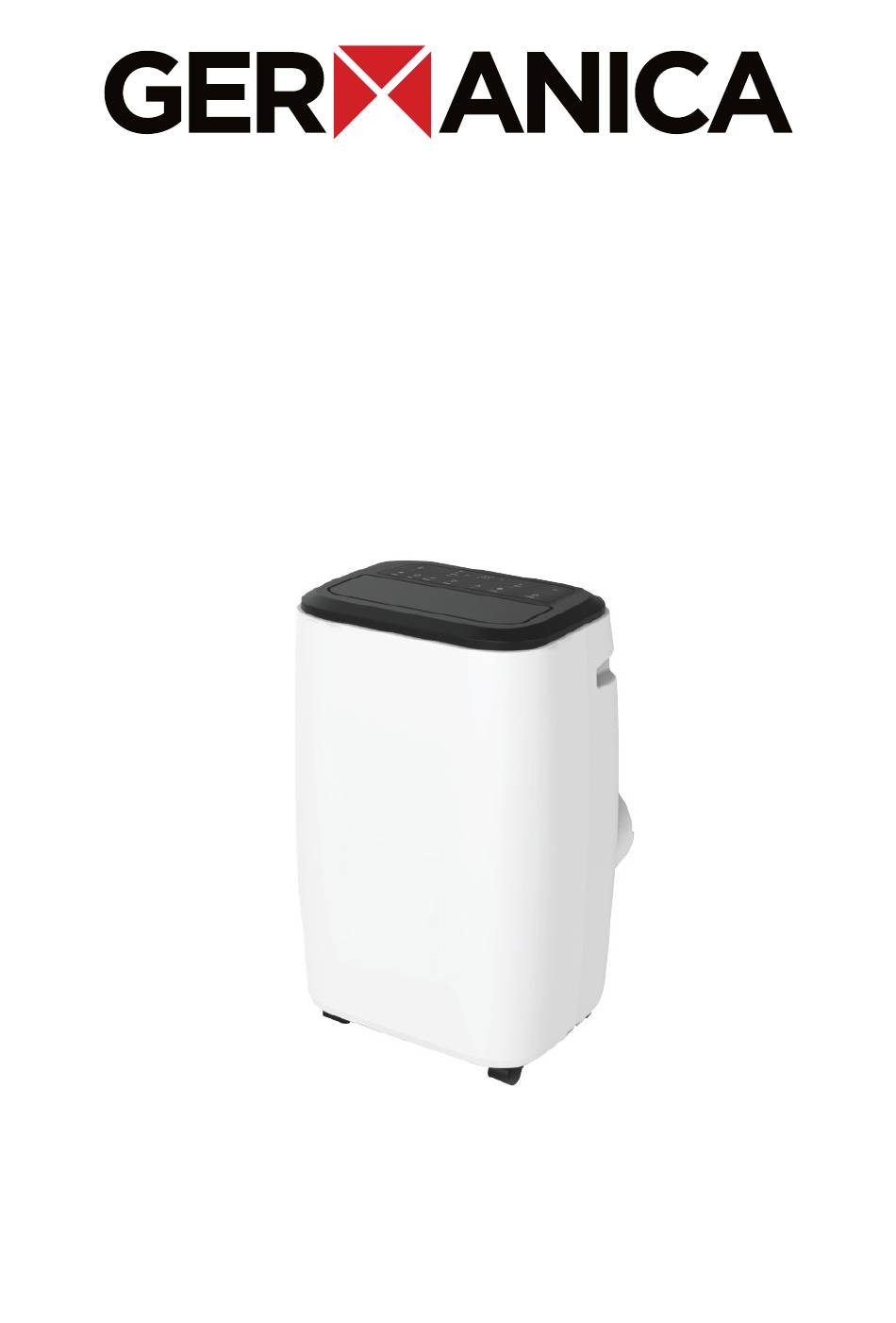

- Page 1 3.8kW PORTABLE WI-FI AIR CONDITIONER GPA38KW INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Product Overview Accessories List Control Panel Remote Control Installation Window Kit Installation Instructions Using the Portable Air Conditioner Cooling Mode Dehumidifying Mode Fan Mode Auto Swing Sleep Mode Timer Operation Water Full Alarm App / Wi-Fi Control Connecting app to Google Home /Amazon Alexa Cleaning and Maintenance Wi-Fi Troubleshooting... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the portable air con. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. - Page 5 GENERAL SAFETY INSTRUCTIONS (Cont.) • Do not cover the ventilation openings of the product with items such as newspapers, tablecloths, curtains etc or insert objects into the slots available on the products. As this could result in the product temperature rising and could cause a fire. •...
- Page 6 GENERAL SAFETY INSTRUCTIONS (Cont.) • This appliance is intended for air conditioning indoor domestic environments. It is not suitable for commercial, industrial or trade use. Do not use it for any other purpose (such as drying clothes, cooling food, etc.), and only use it as described in this manual. •...
- Page 7 GENERAL SAFETY INSTRUCTIONS (Cont.) • There must be a clearance of at least 30cm between the walls, furniture, curtains or any other obstacles (refer to below image). Maintaining this minimum 30cm clearance is essential; failure to keep that distance can result in the unit malfunctioning or causing injury.
- Page 8 GENERAL SAFETY INSTRUCTIONS (Cont.) WARNING: • Do not expose the appliance to high heat, sparks and open flames. • Do not pierce or burn the appliance. • Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
-
Page 9: Product Overview
PRODUCT OVERVIEW... -
Page 10: Accessories List
PRODUCT OVERVIEW (CONT.) ACCSESORY PARTS... -
Page 11: Control Panel
PRODUCT OVERVIEW (CONT.) -
Page 12: Installation
INSTALLATION When the portable air conditioner is operating, the unit draws in indoor air and exhausts hot air out of the room to complete the air exchange. CAUTION: The window kit must be installed before operating the unit. When the unit is in FAN MODE, no outdoor air exchange takes place. The window kit and exhaust to not need to be installed when the unit is used as a fan. - Page 13 INSTALLATION (Cont.) Please follow the below steps in order to setup your portable air conditioner. Fit the exhaust hose and housing connectors to the ends of the flexible air exhaust hose, twisting them into place Insert the fixing clip of the housing connector into the openings at the back of the air conditioner.
-
Page 14: Window Kit Installation
INSTALLATION (Cont.) Installing the window kit Your window kit has been designed to fit most standard ‘horizontal’ and ‘vertical’ window applications, but for certain types of windows it may be necessary for you to improvise/modify some aspects of the installation procedure. Adjust the window slider to the length of a horizontally (or height of a... -
Page 15: Instructions
INSTRUCTIONS Using the portable air conditioner - Before switching the unit on for the first time, make sure you have properly installed the exhaust hose and window kit inserted two AAA size batteries into the remote control. - Find a place for the air conditioner where there is a power outlet nearby. Install the exhaust hose through the window kit so that the hot air is expelled... -
Page 16: Cooling Mode
INSTRUCTIONS (Cont.) Cooling Mode - Press the MODE button until the cooling mode indicator illuminates. - Press the DOWN (-) or UP (+) button repeatedly to set the desired room temperature between 16°C and 31°C. - Press the SPEED button to select the fan speed: high, medium or low. NOTE: For best cooling efficiency, make sure that: * Curtains/blinds are closed if your room is directly exposed to the sun. -
Page 17: Water Full Alarm
INSTRUCTIONS (Cont.) On-Timer Setting - With the unit switched off (but power supplied), press the TIMER button and then use the UP and DOWN buttons to select the number of hours after which you want the unit to turn on. The selected number of hours will be shown on the display. -
Page 18: App / Wi-Fi Control
APP / Wi-Fi Control Working with your mobile device, using your home Wi-Fi network router to communicate with the portable air conditioner and control it. Controlling the portable air conditioner remotely is very easy. You will need: - Android smartphone or tablet, or an Apple iPhone or iPad - Internet connection at your home - Wi-Fi network router set up at home. - Page 19 APP / Wi-Fi Control (Cont.) Before you log in, please press REGISTER and register your account using an email address. (3 and 4) Once entered email address, tap GET VERIFICATION CODE and an email will be sent your email address with a verification code. Enter this code. Now you can enter a password for your account.
- Page 20 APP / Wi-Fi Control (Cont.) On the air conditioner’s remote control (or control panel), press and hold the SPEED button for 5 seconds to reset the Wi-Fi module. 2. When the Wi-Fi indicator on the control panel will blink rapidly (5), the Wi-Fi module is ready for configuration with your mobile phone.
- Page 21 APP / Wi-Fi Control (Cont.) You will now enter device list. Tap the plus ( + ) or ADD DEVICE to add your device. (7). 2. Select the type of product which in this case is: FAN. (8) 3. Select Wi-Fi network then enter in the password to connect. (9) Note: Make sure to select 2.4GHz NOT a 5GHz Wi-Fi network.
- Page 22 APP / Wi-Fi Control (Cont.) Now that the device is being added, progress screen will now appear as to below: (11, 12, 13). Once completed, it will show your product is now added. click DONE. Click on the device name and you can now start navigating the controls of the app.
-
Page 23: Connecting App To Google Home /Amazon Alexa
APP / Wi-Fi Control (Cont.) Add the Tuya Smart app to your Google Home app. Open your Google home app. (Before you link your app to your Google Home app, you will have to have a Google Home account already set up. 2. -
Page 24: Cleaning And Maintenance
CLEANING & MAINTENANCE Cleaning the air conditioner Wipe the housing with a damp cloth, moistened with water and a little mild detergent. Dry with a soft, dry cloth. CAUTION: Do not wash the unit directly. Do not use any solvent or alcohol based cleaning agent on any surface. -
Page 25: Wi-Fi Troubleshooting
WI-FI TROUBLSHOOTING Problem Possible cause and solution... -
Page 26: Troubleshooting
TROUBLSHOOTING If you experience problems with your portable air conditioner, or it appears not to be operating correctly, check the information below for solutions to common problems. If none of the solutions offered help you solve your problem, please contact our support centre for advice on info@ayonz.com Do not attempt to repair the appliance yourself! -
Page 27: Specifications
SPECIFICATIONS Power Supply 220-240V ~ 50Hz POWER 1461 W Rated Power CURRENT 7.0 A Capacity COOLING 3800W (3.8kW) 32.5 kg Weight GROSS 35.5 kg Indoor Dishcharge Air-Flow DISCHARGE ≥ 380m3/h TYPE Refrigerant Type QUANTITY 430 g Noise Level ≤ 65 dB(A) Dimensions UNIT 440 (h) x 357 (w) x 690 (d) mm... -
Page 28: Customer Helpline
CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: AYONZ PTY LTD...
