Maintenance
The only recommended maintenance is to clean the
INPRO MICRO DOMESTIC filter every time the installation
is serviced.
Once the filter is clean, put back into position, making
sure that the seal is properly set in position so that it is
completely airtight.
Advantages of INPRO MICRO DOMESTIC
- It increases the useful working life of the burner pump.
- Energy saving: It only comes into operation when the
burner demands this.
- There is no electrical noise.
- The cover is made of stainless steel.
- Flexible pipes for easy installation, and noiseless
working.
- 100% of INPRO MICRO DOMESTIC pass a 48 h. test in
our works.
Technical Characteristics
Max. Flow Rate:
17 l/h
Max. Suction Height:
3 m
Max. Drive Pressure:
15 m. (1,5 kg/cm
Power Supply:
230 V 50 Hz
Power Consumption:
18W
Inlet and Outlet Connection:
8 mm I.D.
)
2
C/ Invierno, 4-6
Pol. Ind. "El Malvar"
28500 Arganda del Rey
Tel.: (+34) 918 719 294
Fax: (+34) 918 719 256
export@inprosa.net
www.inprogroup.net
INPRO

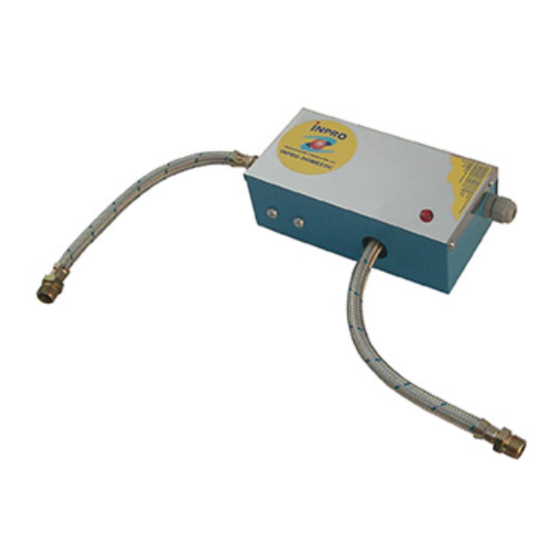

Installation Guide
Micro Domestic
Advertisement
Table of Contents
Related Manuals for INPRO Micro Domestic
Summary of Contents for INPRO Micro Domestic
- Page 1 - The cover is made of stainless steel. Installation Guide - Flexible pipes for easy installation, and noiseless Micro Domestic working. - 100% of INPRO MICRO DOMESTIC pass a 48 h. test in our works. Technical Characteristics Max. Flow Rate: 17 l/h Max.
- Page 2 Electrical Diagram Example: - Suction head between the tank bottom and the desired position for the INPRO MICRO DOMESTIC of 2 m (so please read second diagram above). - Pipe length (horizontal) of 30 m between the tank and the INPRO MICRO DOMESTIC.
