Summary of Contents for INPRO OUF 88
- Page 1 OIL UP FEEDER 88 OUF 88 equipped with optional leak detection system OUF 88 and OUF 88 Maxi INSTALLATION MANUAL...
-
Page 2: Table Of Contents
INDEX OUF88 Technical Specifications OUF 88 Installation Troubleshooting and maintenance Wiring Diagram System description and parts Accessories – Leak detection system Leak detection system wiring diagram Installation examples Display quick reference list... -
Page 3: Ouf88 Technical Specifications
OUF 88 – TECHNICAL SPECIFICATIONS PUMP TYPE Suction Solenoid Pump LIFTING HEIGHT (MAX.) 8 m vertical (8 mm I.D. tube) MÁX. HORIZONTAL 100 m horizontal (8 mm I.D.. tube) DISTANCE OUTLET FLOW RATING 8 L/hr at: 8 m vertical & 25 m horizontal (8 mm I.D. -
Page 4: Ouf 88 Installation
Once reached the low level, you can release the start button, because the OUF works in automatic mode. 4/ Once the oil has filled the OUF 88 reservoir to the programmed maximum level (80% approx), the working level switch will stop the pump. -
Page 5: Troubleshooting And Maintenance
Check suction line vacuum tightness, tube size, and distances related to suction limits of your OUF 88. If the oil does not come up to the OUF 88: Check suction pipe for blockage and/or vacuum tightness. Is your vertical lift height lower than 8 mt? -
Page 6: Wiring Diagram
OUF 88 Wiring Diagram Warning: Make sure that the ground/earth is properly connected. -
Page 7: System Description And Parts
6800647 (Ver. E) 10.- INFRARRED PROBE FOR OUF 88, 350 mm long 6800221 6800232A 11.- LEAK DET. PCB, PROBE & OIL TRAY 24x14x4cm FOR OUF 88 6800652 12.- TRANSPARENT PIPE 13.- 1 SIDE COMPRESSED CLIPS 7.8/9.5 6800653 14.- EARH POST... -
Page 8: Accessories - Leak Detection System

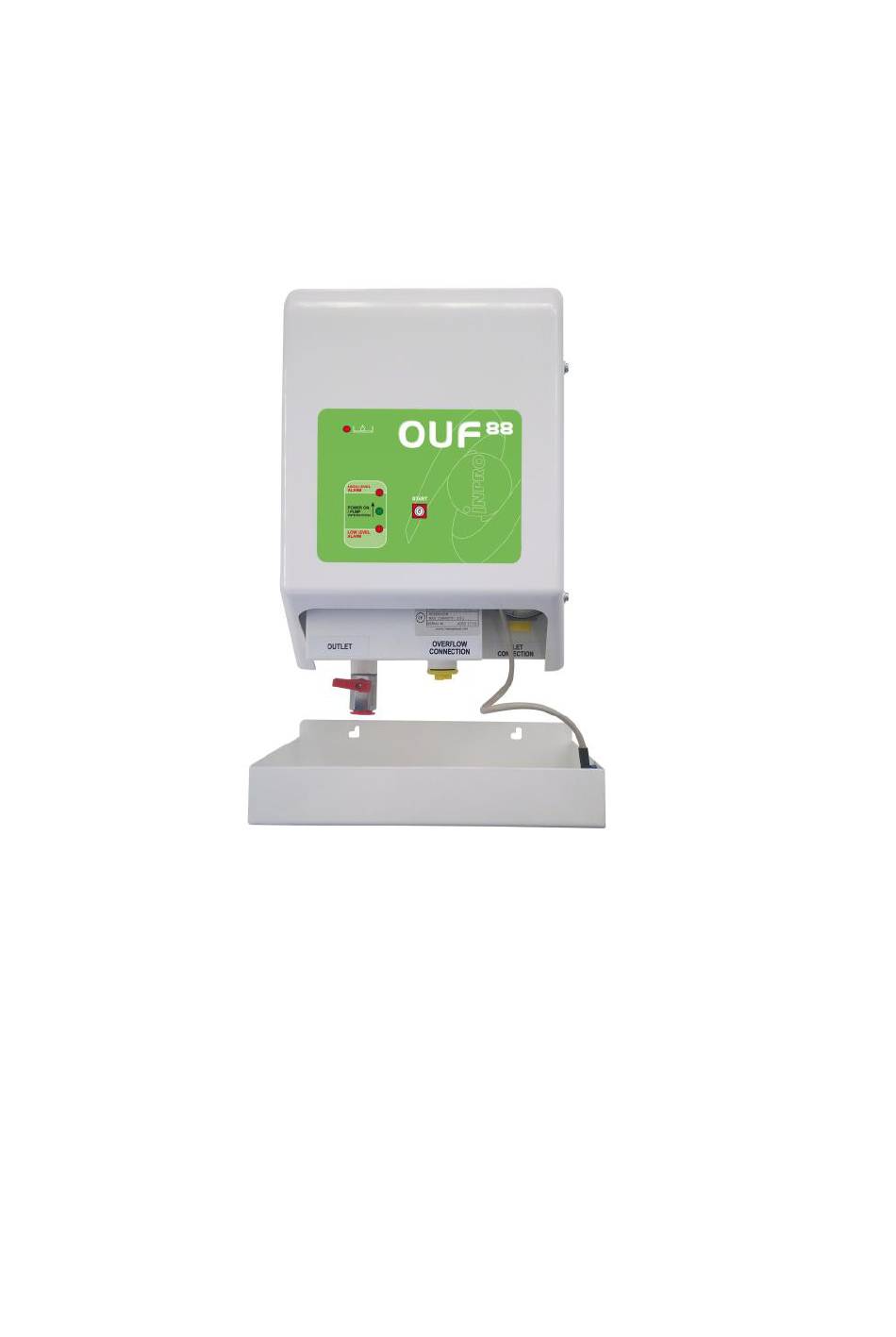

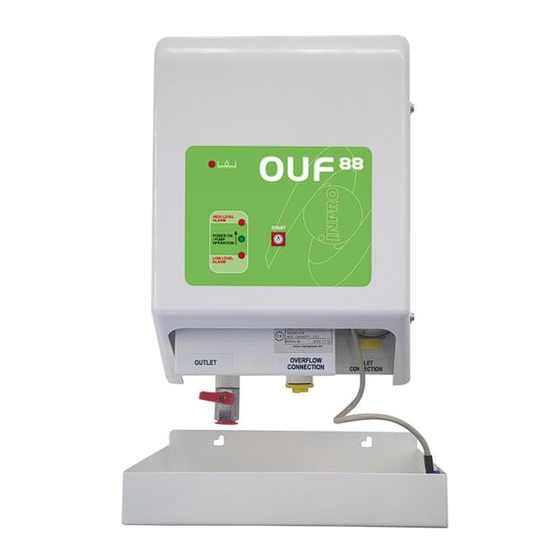

Oil tray with leak detection system An oil tray with an infrared leak detection system is available for your OUF. This optional oil tray is strongly recommended, particularly in the event that the overflow pipe is not connected. In some regions, the use of the oil tray can be compulsory under certain local standards. -
Page 9: Leak Detection System Wiring Diagram
OUF 88 with leak detection system. Wiring diagram Connections above detailed by dashed line, have to be fitted by the leak detection system installer. An insulated three wire cable is provided for this purpose. Note: The is only operational when the Leak Detector & L.D. Board... -
Page 10: Installation Examples
Installation examples:... -
Page 11: Display Quick Reference List
Display quick reference list Fix light: Flashing Light: Normal Operation Status: OUF 88 Oil Lifter is powered. Pump filling No Power Supply OUF reservoir Oil in lifter reservoir arrived till stop level. It keeps this state till low level is reached again, or start button is pushed.
