PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
Tel: (905) 624-5010
www.panasonic.com
© Panasonic Appliances Microwave Oven (Shanghai) Co., Ltd. 2016
F0003BP10CP_En_02_160523.indd 1
F0003BP10CP_En_02_160523.indd 1

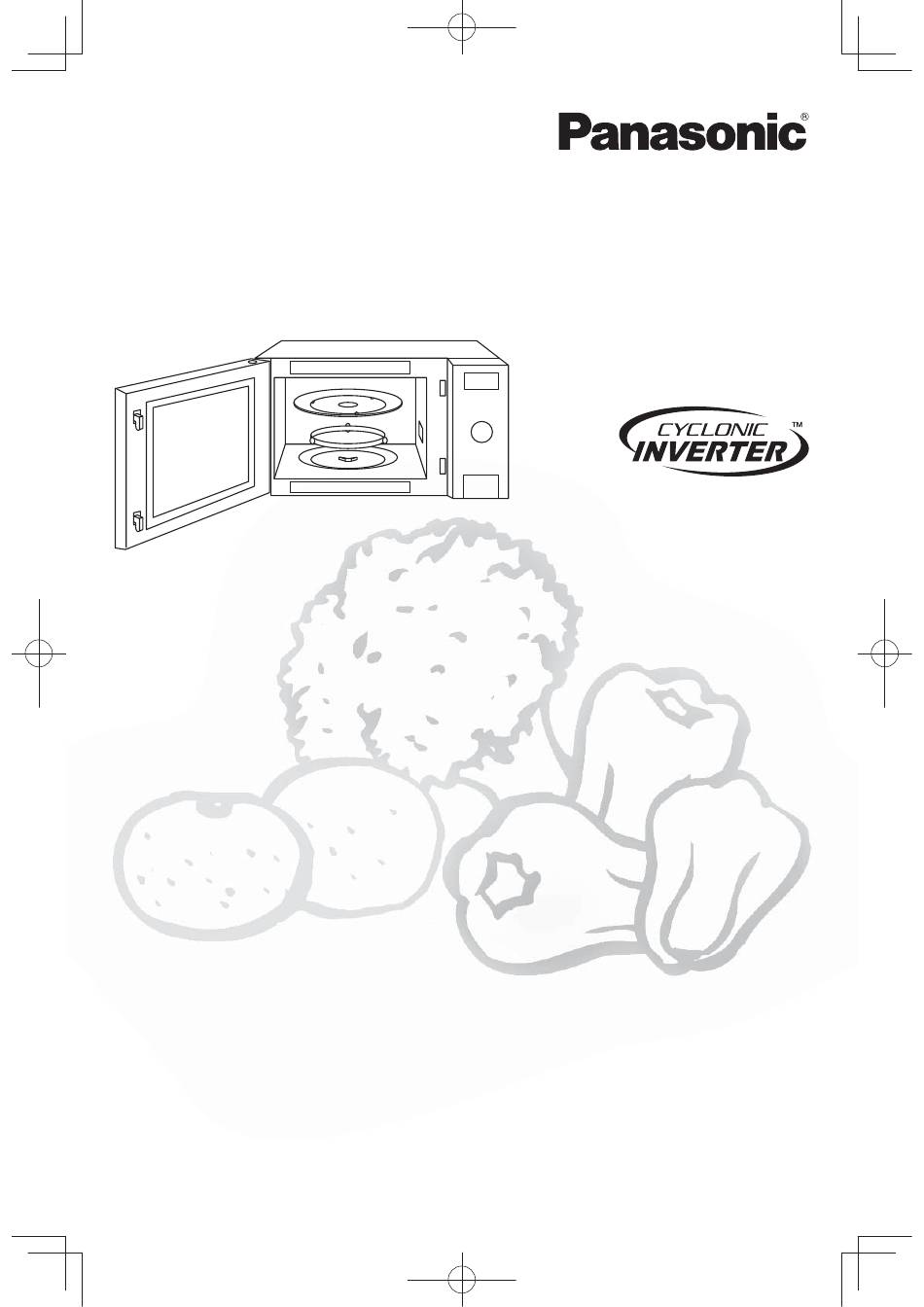

Operating Instructions
PRODUCT, AND SAVE THIS MANUAL FOR FUTURE USE.
Inverser le manuel pour lire les instructions en français.
Microwave Oven
Household Use Only
Model No. NN-SD986S
NN-SD786S
1200 W
F0003BP10CP
PA0616-0
Printed in China
2016/5/27 8:47:56
2016/5/27 8:47:56
