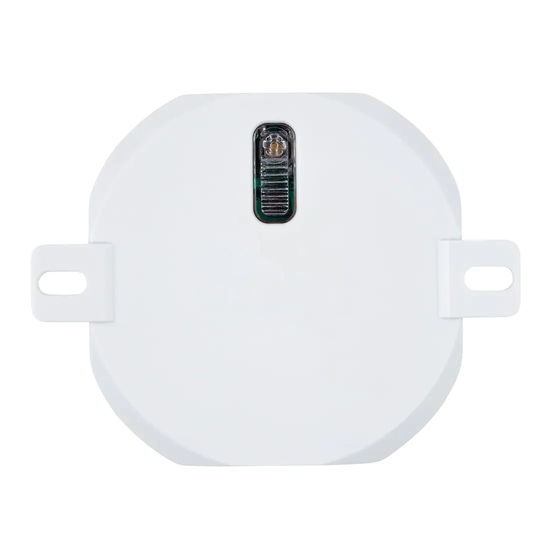

Cotech 51050X2 Quick Start Manual

Flush Mount Dimmer
Switch Receiver
Art.no 36-6031 Model 51050X2
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for
any errors in text or images and any necessary changes made
to technical data. In the event of technical problems or other
queries, please contact our Customer Services.
Note:
Electrical installations should only be carried out by a qualified
electrician.
Installation
Wiring to a 230 V power supply Connecting a light

Pairing the receiver to a remote control

1. Hold in the button on
the front of the receiver for
at least 3 seconds and then
release it.
GREAT BRITAIN • CUSTOMER SERVICE tel. 020 8247 9300 e-mail customerservice@clasohlson.co.uk internet www.clasohlson.co.uk
2. The LED button will start
flashing slowly. The receiver
is now ready to be paired
with a remote control.
3. Single press one of the on-buttons on the remote control
(if it has more than one on-button). The receiver's LED will
shine steadily once the remote control has been paired.
Up to 6 remote controls can be paired with the receiver.

Dimming the light

The light can be dimmed using the paired remote control.
This is how to do it:
Press the on-button on the remote control twice in quick
succession to cause the light to alternately increase and
decrease. Single press the on-button once the desired light
level has been reached.

Switching the light on/off

Switch the light on/off using the on and off buttons. The light
comes on with the latest light level setting when the on-button
is pressed. If you wish to set a new light level once the light is
switched on, press the on-button on the remote control again.
Single press the on-button once the desired light level has
been reached.

Deleting a paired remote control

Up to 6 remote controls can be stored in the receiver memory.
If you wish to pair an additional remote control when six
remote controls are already paired with the receiver, you must
first delete one of the existing remote controls:
1. Hold in the button on the front of the receiver you wish to
delete for 3 seconds and then release it.
2. The LED button will start flashing slowly. The receiver is
now ready to delete the remote control.
3. Press in the off-button on the remote control (make sure
to choose the correct off-button if the remote control can
connect to multiple receivers). The remote control will now
be deleted from the receiver.

Deleting all paired remote controls

1. Hold in the button on the front
of the receiver for 6 seconds
until the LED button starts
flashing quickly.
2. When the LED stops flashing,
all the remote controls which
were paired with the receiver
will have been deleted.

Responsible disposal

This symbol indicates that this product
should not be disposed of with general
household waste. This applies throughout
the entire EU. In order to prevent any harm to
the environment or health hazards caused by
incorrect waste disposal, the product must
be handed in for recycling so that the material
can be disposed of in a responsible manner.
When recycling your product, take it to your
local collection facility or contact the place of
purchase. They will ensure that the product is
disposed of in an environmentally sound manner.

Specifications

Rated voltage 230 V, 50 Hz
Frequency 433.92 MHz
Max range 25 m
Max load
Incandescent and halogen bulbs Max 200 W
Dimmable CFL bulbs Max 200 W
Dimmable 230 V LED bulbs Max 3–24 W
