Cotech 51058GB 30 Series Operating Instructions

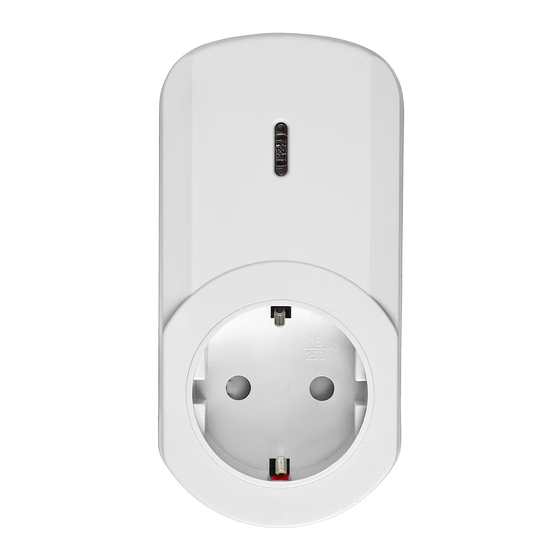

Switch Receiver
Art.no 18-1253 Model 51058GBx30
36-3624
Please read the entire instruction manual before using
the product and then save it for future reference.
We reserve the right for any errors in text or images
and any necessary changes made to technical data.
In the event of technical problems or other queries,
please contact our Customer Services.
Operating instructions
Installation
1. Plug the receiver into
an electrical outlet.
2. Hold in the button on
the front of the receiver
for at least 3 seconds
and then release it.
3. The LED inside
the button will start
to flash slowly.
The receiver is now
ready to be paired with
a transmitter.
GREAT BRITAIN • CUSTOMER SERVICE tel. 020 8247 9300 e-mail customerservice@clasohlson.co.uk internet www.clasohlson.co.uk
4. Pair the receiver to the transmitter by following
the instructions accompanying the transmitter. Up to
6 transmitters can be paired with the receiver.
5. Plug a light into
51058x36
the receiver and
check that the light is
switched on.
6. The light can now
be controlled using
the transmitter.
Note: The light can also be switched on/off manually by
pressing the button on the receiver.
Unpairing all paired transmitters
1. Hold in the button
on the front of
the receiver for 6
seconds until the LED
inside the button
starts to flash quickly.
2. When the LED
stops flashing, all
the transmitters which
were paired with it will
have been unpaired.
Unpairing one paired transmitter
1. Hold in the button on the front of the receiver
which you want to unpair the transmitter from for
3 seconds and then release it.
2. The LED inside the button will start to flash
slowly. The receiver is now ready to unpair from
the transmitter.
3. Press in the [ OFF ] button on the transmitter
(make sure to choose the correct [ OFF ] button if
the transmitter can connect to multiple receivers).
The transmitter will now unpair from the receiver.
Care and maintenance
• The receiver should be unplugged from the wall
socket if it is not to be used for a long time.
• The receiver should be cleaned by wiping it with
a dry cloth.
Troubleshooting guide
The receiver • Has the receiver been paired with
is not a transmitter as described above?
working, Try pairing them again.
the LED is • Check that the light is properly
not lit. plugged into the receiver and that
it is switched on and not faulty.
• Try plugging the light into another
electrical outlet to make sure that
it works.
• Is there electricity in the outlet
the receiver is plugged into?
Disposal
This product should be disposed of in accordance with
local regulations. If you are unsure how to proceed,
contact your local council.
Specifications
Mains power supply 220–240 V AC, 50 Hz (18-1253)
230 V AC, 50 Hz (36-3624)
433.92 MHz
Frequency
Max range 25 m
Load (resistive bulb) 0−3680 W
Load (inductive) 0−613 W
