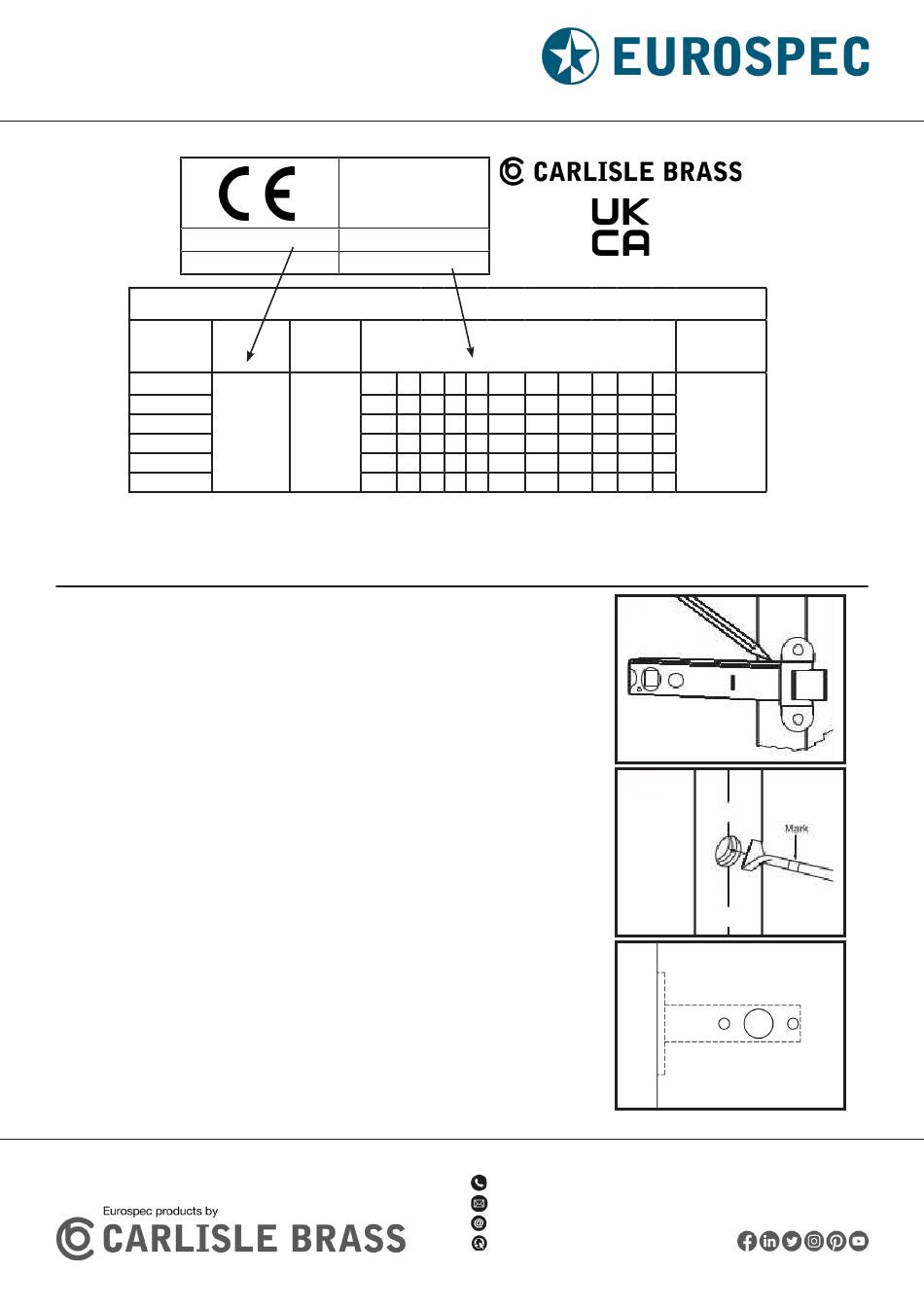

Eurospec BTL1 Fitting Instructions

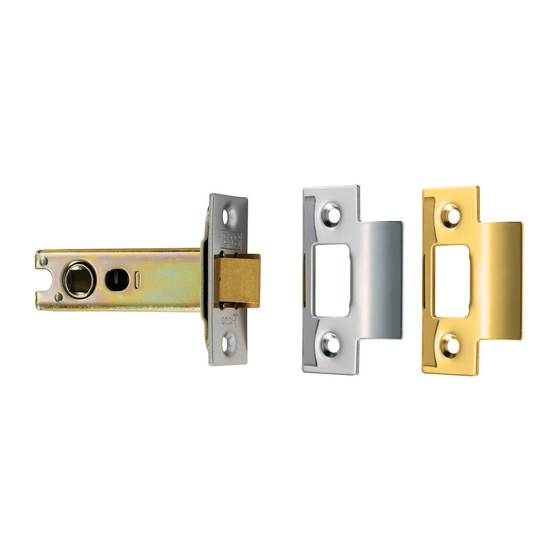

TLE TUBULAR LATCH
FITTING INSTRUCTIONS
We recommend consulting a professional if you are unfamiliar with installing hardware fixtures.
2812 - CPR - AG5228
EN 12209: 2003 / AC 2005
Lock Information - Accreditation, Performance & Suitability for use on Fire Doors
Item
BTL1
BTL2
BTL3
BTL4
BTL25
BTL30
Tools required: Drill & 25.4mm (1") drill bit, Mallet, Chisel, Posidrive
Screwdriver, Pencil, Masking Tape
The mortice must always be aligned horizontally and vertically
in order for all relevant components to operate as intended.
Misalignment of any single component can lead to the breakdown of
complete door set operation.
It is recommended to pilot all fixing screw locations prior to final
fitting to prevent excess strain on the fixings.
Using a pencil, mark the door edge for the height and width of the
mortice, and also for the forend. Use these markings as your visual
guide to ensure you cut the mortice to the correct dimensions.
Using a 1" drillbit, drill the mortice accordingly, ensuring any
shavings or swarf are removed and the mortice is smooth.
Note: Use tape to mark the correct depth of the drill bit. The required
depth is the latch/deadbolt body length + Fixed forend + Loose Face
Plate.
Insert latch body into mortice and draw around the faceplate. Chisel
out to the required depth (which will include the loose faceplate).
FITCB0178 | Revision A
Carlisle Brass Ltd
Parkhouse Road,
Carlisle,
CA3 0JU
21
Classification
Declaration
of
CE Ref Performance
NPD A
NPD A
NPD A
AG5228 CBB213
NPD A
NPD A
NPD A

Preparation And Installation

1121
EN 12209 : 2003 classification
7 1 0 C - B 0
7 1 0 C - B 0
7 1 0 C - B 0
7 1 0 C - B 0
7 1 0 C - B 0
7 1 0 C - B 0
+44 1228 511030
Carlisle Brass Ltd, Parkhouse Road, Carlisle, CA3 0JU
enquiries@carlislebrass.com
www.carlislebrass.com
Intumescent
Requirements
FD30 & FD60
Timber Doors
NPD 0
NPD 0
0.8mm
NPD 0
Intercalated
Graphite
NPD 0
intumescent sheet
NPD 0
NPD 0
Page 1 of 2
