7 Line Fold Down Clothesline
Tools
Required
- Drill / Hammer drill (ideal)
- Timber or Masonry Drill Bits
- Tape Measure
- Spanner
- Pencil
Optional
- Spirit Level
- Hack Saw (if shortening width)
Wall
Line Cord
Bracket
Telescopic
Strut
The recommended mounting height of the top slotted hole in the wall bracket is:
If you are using a Milkcan Ground Mount Kit, skip steps 1 & 2 and refer to instructions inside the ground mount kit packaging.
1. Mark position of wall brackets to an overall width of 240cm between centres. If your required width is less than 240cm, please refer to
Reducing The Overall Width below.
If your available space doesn't allow the full 240cm
width, you can reduce the width of your Clothesline as
follows:
- For this example, we are assuming your required
overall width is 200cm. This is a total reduction of
40cm.
- Cut half from each side of the 2 x cross bar
segments i.e. 40 / 2 = 20cm each side
Contents

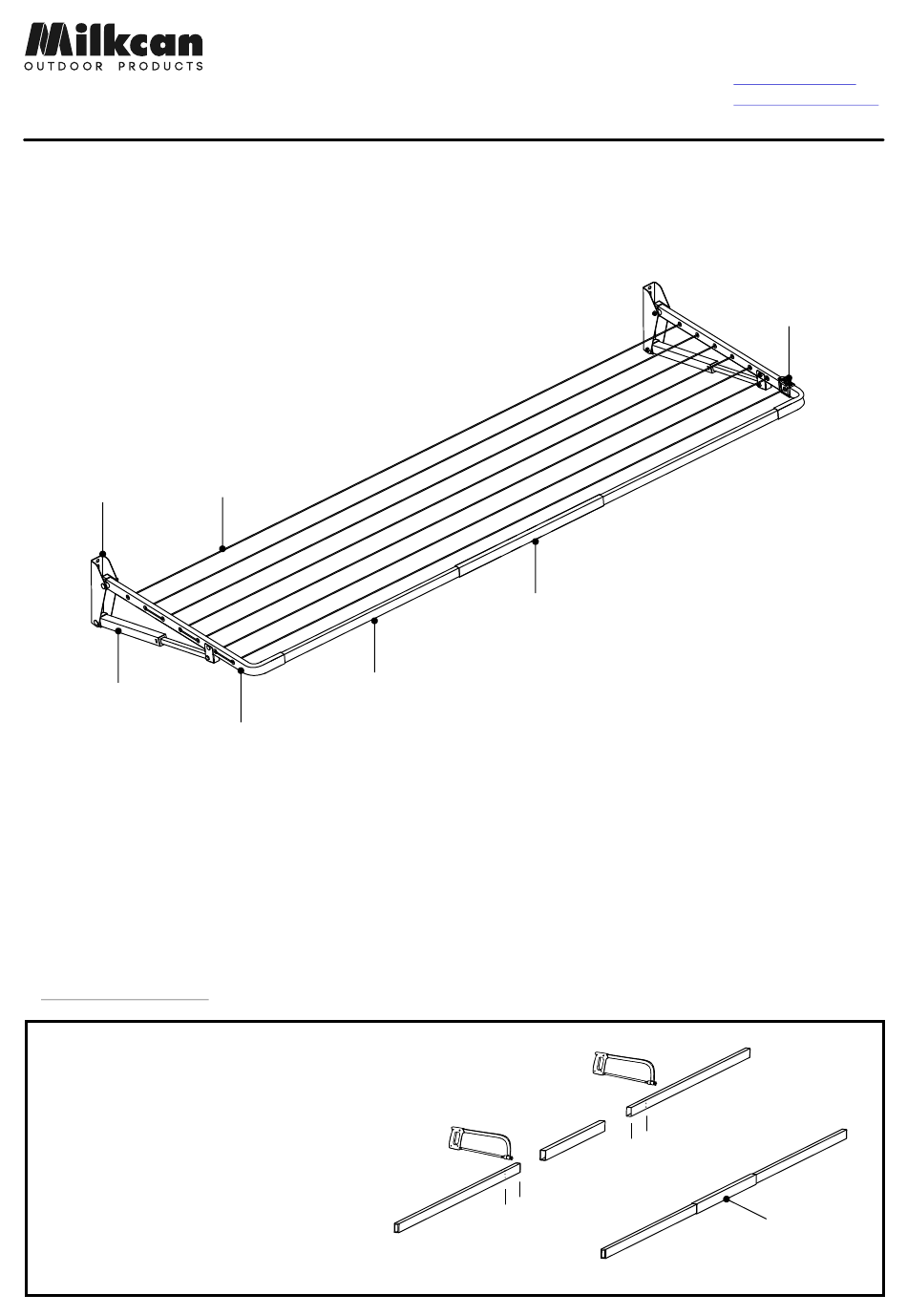

Your carton should contain the following parts:
2 x Wall Brackets
2 x Side Arms (assembled)
2 x Front Bars
1 x Front Brace
1 x Line Cord
1 x Accessories Bag
Front Bar
Side Arm
Front Brace
USERS HEIGHT + 10cm.
20cm
20cm
56 Northgate Drive,
Thomastown VIC 3043
www.milkcan.com.au
support@milkcan.com.au
(03) 9464 6964
MCL13046
Line
Tensioner
Minimum height is 160cm.
The cuts will be
covered by the
cross brace
3.0
