13 Line Fold Down Clothesline
Tools
Required
- Drill / Hammer drill (ideal)
- Timber or Masonry Drill Bits
- Tape Measure
- Spanner
- Pencil
Optional
- Spirit Level
- Hack Saw (if shortening width)
Wall
Line Cord
Bracket
Telescopic
Strut
The recommended mounting height of the top slotted hole in the wall bracket is:
Installation and Assembly
If you are using a Milkcan Ground Mount Kit, skip steps 1 & 2 and refer to instructions inside the ground mount kit packaging.
1. Mark position of wall brackets to an overall width of 240cm between centres. If your required width is less than 240cm, please refer to
Reducing The Overall Width below.
Reducing the Overall Width
If your available space doesn't allow the full 240cm
width, you can reduce the width of your Clothesline as
follows:
- For this example, we are assuming your required
overall width is 200cm. This is a total reduction of
40cm.
- Cut half from each side of the 2 x cross bar
segments i.e. 40 / 2 = 20cm each side
Contents

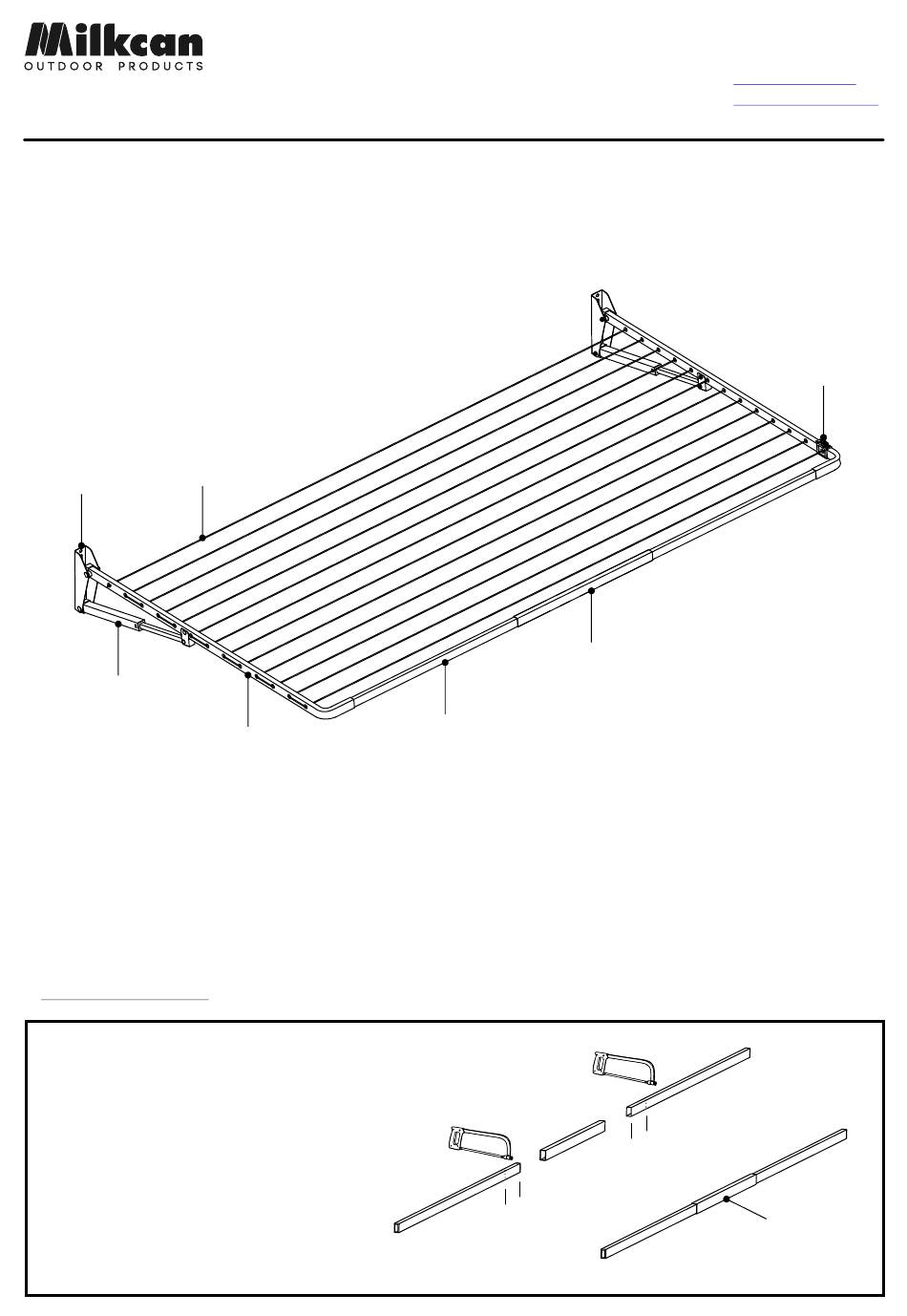

Your carton should contain the following parts:
2 x Wall Brackets
2 x Side Arms (assembled)
2 x Front Bars
1 x Front Brace
1 x Line Cord
1 x Accessories Bag
Side Arm
Front Brace
Front Bar
USERS HEIGHT + 10cm.
20cm
56 Northgate Drive,
Thomastown VIC 3043
www.milkcan.com.au
support@milkcan.com.au
(03) 9464 6964
MCL13040
Tensioner
Minimum height is 160cm.
20cm
The cuts will be
covered by the
cross brace
Line
3.0
Advertisement
Table of Contents
Related Manuals for Milkcan MCL13040
Summary of Contents for Milkcan MCL13040
- Page 1 Installation and Assembly If you are using a Milkcan Ground Mount Kit, skip steps 1 & 2 and refer to instructions inside the ground mount kit packaging. 1. Mark position of wall brackets to an overall width of 240cm between centres. If your required width is less than 240cm, please refer to Reducing the Overall Width below.
- Page 2 Installation and Assembly (cont...) 2. Attach the wall brackets to your brick wall or timber posts. - For brick walls, use the M8 (10mm) masonry User’s User’s height height Attach Attach anchors provided 10cm 10cm through through these holes these holes - For timber posts, use the M10 coach screws provided 3.
- Page 3 56 Northgate Drive, Thomastown VIC 3043 www.milkcan.com.au Ground Mount Kit support@milkcan.com.au (03) 9464 6964 MCL13031 Tools Contents Required Your carton should contain the following parts: - Tape Measure 2 x Posts 1 x Cross Brace - Spanner 2 x Cross Bars...
- Page 4 Assembly 1. Assemble the cross bar. Push the left and right bars fully into the cross brace until they hit the small indent in the middle. Fix into place using the 2 x screws supplied. Cross Brace 2. Attach the assembled cross bar and Clothesline wall brackets to the Ground Mount posts.
